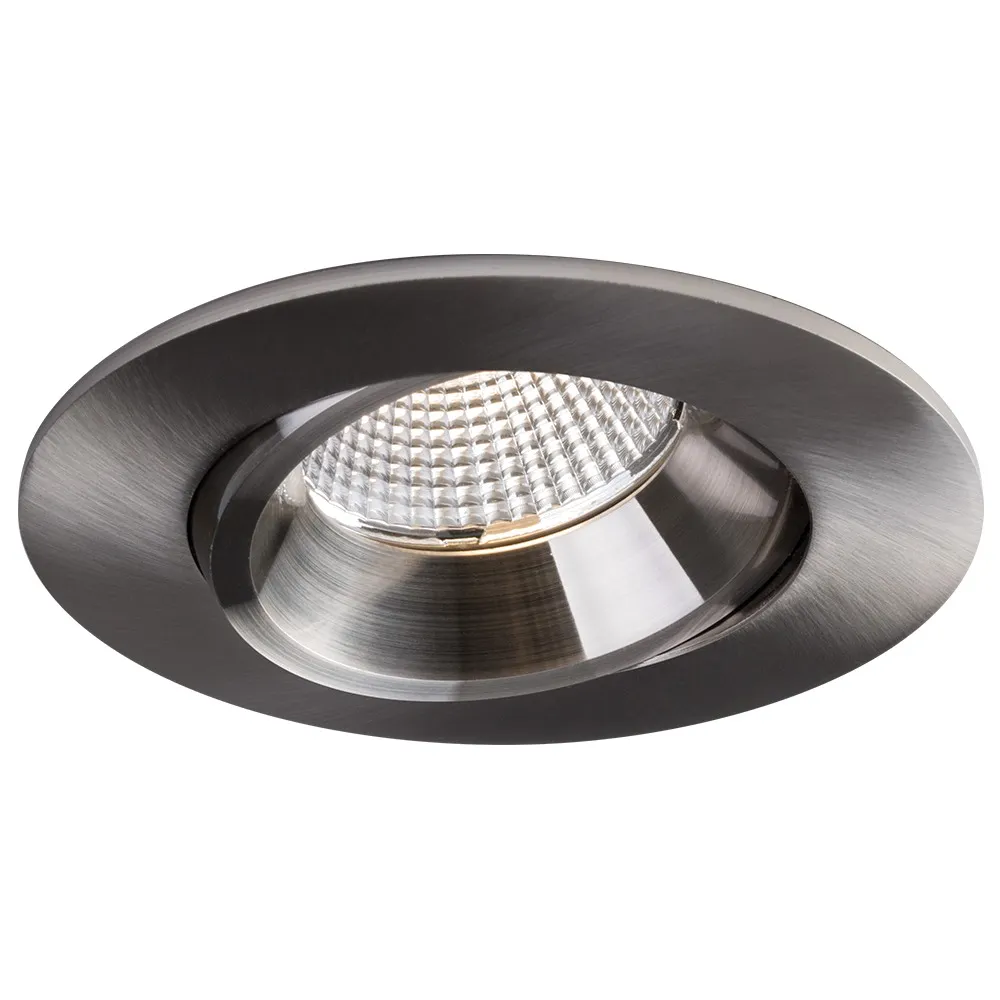

Built to disappear into the ceilingThe LUNA 3.5" regressed gimbal is engineered around a durable airtight
aluminum body with an adjustable regressed gimbal, plus an anodized blue heat sink that maximizes airflow around the LED light source. That thermal design is what keeps output and colour stable over the long haul — the fixture is projected to hold 70% of its output at 50,000 hours and is covered by a lifetime warranty. The Brushed Nickel trim (BN) of this RA35-12RG-DTW90BN gives a soft metallic edge that suits stainless appliances, modern hardware and warm contemporary interiors, and the deep regressed optic keeps the light source out of your direct line of sight for a clean, low-glare ceiling.
Light quality and colour selectionThe LED module maintains uniform intensity and produces up to
1160 lumens with a typical
CRI of 95+, which is exactly what you want over kitchen counters, in bathrooms, in retail displays and anywhere colour accuracy matters. The on-fixture
5CCT colour selectable switch lets you choose between five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — before install, so you can warm up a bedroom and cool down a workshop from the same carton. Measured lumen output at 12W varies with the setting: 1040 at 2700 K, 1090 at 3000 K, 1135 at 3500 K, 1160 at 4000 K and 1145 at 5000 K. The lens delivers a 38° beam spread and the gimbal tilts up to 40° for real aiming control.
Technical specificationsApplication: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W (300 mA driver)
Lumens: Up to 1160
Lumens per watt: Up to 102
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60 Hz
Dimming: Yes, 100%-10%, forward/reverse-phase TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, ENERGY STAR, Class II
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime
Finish: Brushed Nickel (BN)
Wiring and installationThe fixture ships with an extruded aluminum hardwire box housing a dimmable Class II electronic LED driver with 100-135V AC input, plus an 18" (457 mm)
FT6-rated cable with DC 2.1 connector between driver and fixture, approved for use in plenums and suspended ceilings. Three "quick connect" push-in terminals make wiring fast on a long run of
pot lights, and two spring-loaded clips attach the housing to virtually any ceiling material after a Ø 3 5/8" (92 mm) hole cut. Because it is airtight and approved for direct contact with insulation, it can go straight into insulated attic ceilings; for a proper air seal in new construction or remodel work, a vapour barrier extender is the accessory to look for, along with pre-mounting plates and a new construction mounting kit when you're laying out joists. Accessories are sold separately. Always confirm dimmer compatibility before finalizing a large order.
Where it works and what's availableThink open-concept kitchens and islands, hallways, home theatres and stairwells; bathrooms, showers and covered porches thanks to the wet location listing; and on the commercial side, boutiques, cafés, clinic corridors, hotel rooms and office lobbies where a small aperture and low glare read as premium. The 40° tilt makes it a natural
accent and wall-wash tool alongside general downlighting. For consistent aesthetics through a whole floor, combine it with other members of the LUNA 3.5" family, such as the
RA35-12G-90WH gimbal fixture or the
3.5" LUNA regressed gimbal in white. The full technical PDF (RA35-12RG-DTW90BN Spec Sheet) is available in the Documentation tab for photometrics, dimensions and the complete ordering guide.
