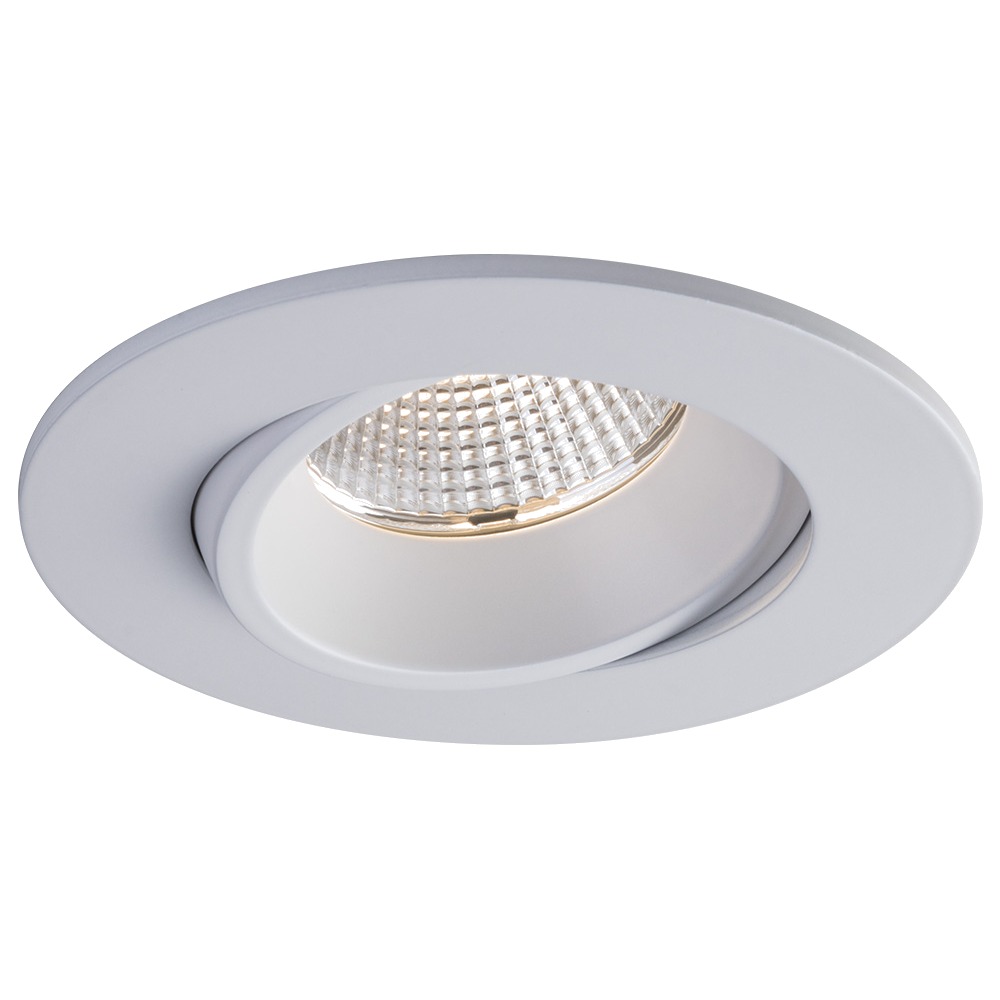

Built to last, built to disappear into the ceilingThe LUNA Designer Series was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and the
regressed gimbal recessed fixture is the most versatile version of it. The durable airtight aluminum body houses an adjustable regressed gimbal, so the LED module sits deep behind the aperture instead of staring back at you. An anodized blue heat sink provides maximum airflow for the LED light source, which is how a fixture this compact holds its output over time. The trim measures 4 3/8" (111 mm) across with a 3 3/8" (85 mm) inner dimension, the housing depth is roughly 4 3/16" (106 mm) by 3 1/16" (78 mm), and the white trim finish keeps it visually quiet in a drywall or plaster ceiling.
Light quality you can actually seeThe LED module maintains uniform intensity and produces up to
1160 lumens with a typical
CRI of 95+ — a real difference when you are lighting a kitchen backsplash, a gallery wall, cabinetry or retail product. The on-fixture
colour selectable switch lets you pick 2700 K, 3000 K, 3500 K, 4000 K or 5000 K on site, so one box of fixtures can serve a warm living room and a cooler laundry room in the same house. Output follows the setting: 1040 lumens at 2700 K, 1090 at 3000 K, 1135 at 3500 K, 1160 at 4000 K and 1145 at 5000 K. The lens delivers a 38° beam spread, and the gimbal tilts up to 40° with 20° rotation each way for precise aiming.
Technical specificationsApplication: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W (9W / 12W family)
Lumens: Up to 1160
Lumens per watt: Up to 102
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60 Hz
Dimming: Yes, 100%-10%
Dimming tech: Forward/reverse-phase TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 50,000 hrs
Certification: cETLus
Energy Star: Yes
Class II: Yes
Colour: WH (white trim)
Warranty: Lifetime
Wiring and installationTwo spring-loaded clips attach the fixture to any ceiling material, so retrofits into existing drywall are quick. The extruded aluminum hardwire box holds a 12 watt (300 mA) dimmable Class II electronic LED driver with 100-135V AC input, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture — approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast and tool-free. Because the fixture is airtight and approved for direct contact with insulation, it works in insulated attic ceilings and in
wet locations such as shower and covered exterior soffits. For dimming, use industry standard forward-phase / reverse-phase or TRIAC/ELV controls for smooth 100%-10% performance.
Applications, accessories and documentationUse it as adjustable accent lighting over a kitchen island, to wash a stone fireplace, to light sloped ceilings in a finished basement, or in retail and restaurant ceilings where a low-glare
gimbal downlight sells the merchandise. Liteline lists a range of accessories sold separately, including P-3520 and P-3520NC round pre-mounting and new construction plates with driver attachment clip for 3 1/2" LUNA LED fixtures, the 24" long P-3524 plate for oversized joist spacing, the P-NCMK-1 new construction mounting kit, VBE-1 through VBE-5 vapour barrier extenders, and RA35-XLRING-WH reducer ring for 3 1/2" LUNA fixtures. Within the same family you can mix fixed and adjustable looks: see the
3.5" LUNA LED round recessed fixture RA35-12F-30K-90WH in 3000 K, or the dim-to-warm gimbal version
RA35-12RG-DTW90BK. The full technical PDF spec sheet for RA35-12RG-90WH is in the Documentation tab for your electrician, inspector or lighting layout.
