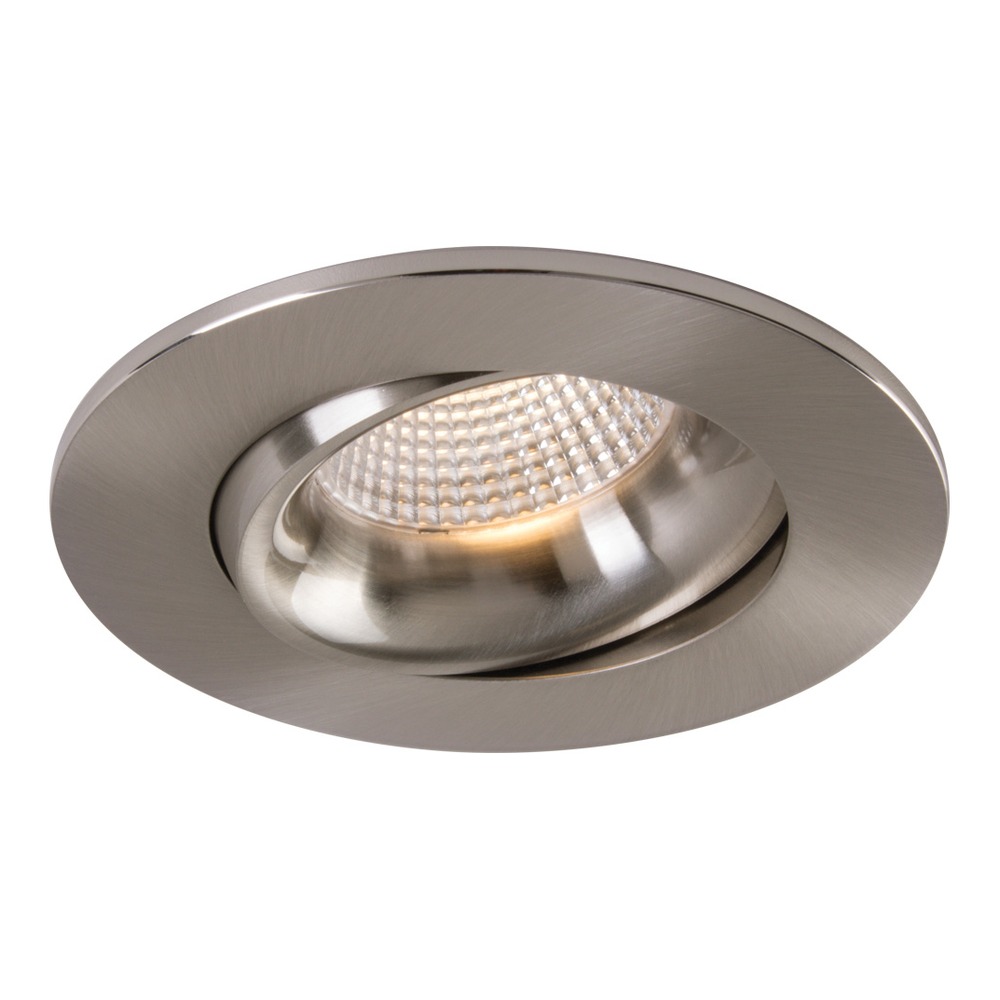

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-DTW-90BN

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-DTW-90BN
Brand: LITELINE
SKU: RA35-12G-DTW-90BN
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12G-DTW-90BN

Brand: LITELINE

Warm, flattering light that dims down like a candle — that's what the LUNA 3.5" LED round recessed fixture RA35-12G-DTW-90BN brings to a room. This is a compact dim-to-warm LED downlight, the kind of fixture people search for as a pot light, a round recessed light or simply dimmable LED downlights for a kitchen, hallway or living room. Built by LITELINE for the LUNA family, it slips into a small 3 5/8" opening, hides its driver above the ceiling and leaves nothing but a clean brushed nickel ring in view. It's made for both homes and light commercial work: kitchen downlights over an island, a row along a corridor, accent lighting in a boutique, or fresh recessed lighting in a basement renovation.

The 12W LED module delivers up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood, paint and fabrics look true. The dim-to-warm engine shifts from 3000 K down to 2000 K as you lower the dimmer, exactly like an incandescent lamp settling into the evening. A 38° beam spread keeps the light controlled and comfortable, and the fixture dims with industry-standard TRIAC/ELV dimmers on a 100-135V AC, 50/60Hz supply. The airtight fixed aluminum body carries an anodized blue heat sink for airflow, the 300 mA Class II electronic driver sits in an extruded aluminum hardwire box, and the whole assembly is cETLus certified, suitable for wet locations, approved for direct contact with insulation, and rated 70% at 33,000 hours with a lifetime warranty. Fixture size: 4 3/8" (111 mm) with a Ø 3 5/8" (92 mm) hole cut. Finish: brushed nickel (BN).

This little downlight earns its keep in kitchens, hallways, bedrooms, closets, stairwells, covered porches and bathrooms — its wet-location rating makes it a natural over a shower or tub, and the -20°C to 40°C operating range suits Canadian soffits and unheated entryways. Contractors like it for insulated ceilings where airtight, IC-rated fixtures are required. Want the same light in another finish? See the LUNA 3.5" dim-to-warm recessed fixture in white or the black version. Order your RA35-12G-DTW-90BN today and give every room that warm, lived-in glow.

Built to last, built to disappear
The LUNA RA35-12G-DTW-90BN is a 3.5" round fixed recessed downlight with a durable airtight fixed aluminum body. Inside, an anodized blue heat sink keeps air moving around the LED source, which is how a small fixture like this protects its output over the long run. The trim is finished in brushed nickel (BN), a warm-toned metallic that blends with stainless appliances, nickel faucets and satin hardware. Two spring-loaded clips hold the fixture in any ceiling material, so drywall, plaster, wood plank or a suspended tile grid all work without extra hardware.

Light quality and dim-to-warm
The 12 watt LED module produces up to 600 lumens of uniform intensity with a typical CRI of 90 — high enough for kitchens, closets and retail displays where colour accuracy matters. The dim-to-warm behaviour is the headline: as you dial the dimmer down, the colour temperature travels from 3000 K to 2000 K, so a bright, crisp kitchen at dinnertime becomes a soft amber lounge later in the evening. The lens gives a 38° beam spread, tight enough to shape a pool of light on a counter or a piece of art, wide enough to space out comfortably across a ceiling.

Electrical and installation
Power comes from a 300 mA dimmable Class II electronic LED driver housed in an extruded aluminum hardwire box, with a 100-135V AC input and three "Quick connect" push-in terminals for fast wiring. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Dimming is TRIAC/ELV; for a dimmer list, consult the manufacturer's LUNA dimmer resources. Cut a Ø 3 5/8" (92 mm) hole, feed the cable, clip the fixture in — remodel or new construction both go quickly.

Technical specifications
SKU: RA35-12G-DTW-90BN
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K (dim-to-warm)
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92 mm)
Dimensions: 4 3/8" (111 mm) / 3 3/8" (85 mm) / 4 3/16" (106 mm) / 3 1/16" (78 mm) / 15/16" (34 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus, Class II, LM79, LM80
Warranty: Lifetime
Finish: Brushed Nickel

Applications, matching fixtures and documentation
Picture six of these over a kitchen island, four down a hallway, a pair above a freestanding tub, or a grid of them in a café or clinic waiting area — the wet-location approval and direct-contact-with-insulation rating cover bathrooms, covered porches and tight insulated ceilings alike. To keep a whole project consistent, the LUNA line offers the same 3.5" platform in other finishes and colour options: the white dim-to-warm LUNA, the black dim-to-warm LUNA, and the fixed-temperature LUNA 3.5" recessed fixture in brushed nickel. Accessories such as pre-mounting and new construction plates, vapour barrier extenders, a new construction mounting kit and reducer rings are designed for 3½" LUNA LED fixtures and are sold separately. The full technical PDF spec sheet for RA35-12G-DTW-90BN is in the Documentation tab — check the cut-out and clearance details before you drill.
