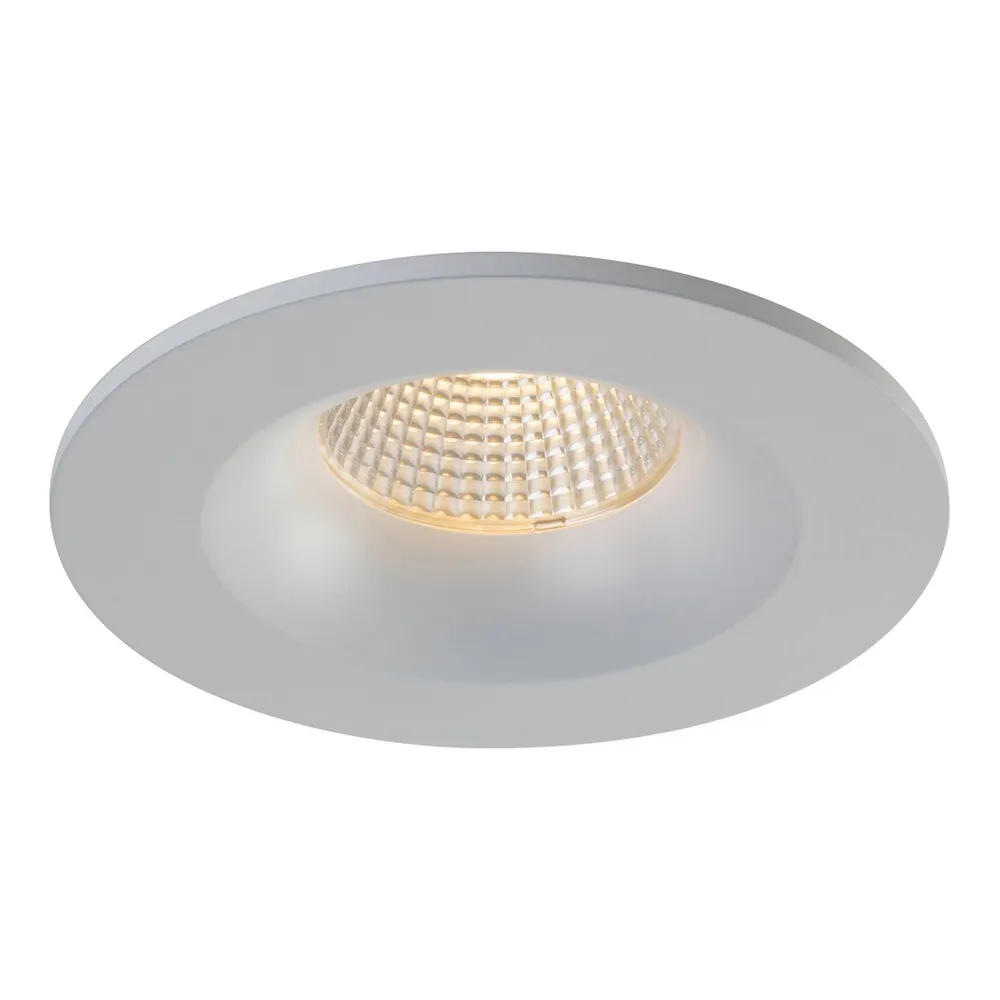

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-50K-90WH

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-50K-90WH
Brand: LITELINE
SKU: RA35-12F-50K-90WH
Price: 73.97 CAD
Availability: InStock

SKU: RA35-12F-50K-90WH

Brand: LITELINE

Small aperture, big presence: the 3.5" LUNA LED round recessed fixture from LITELINE (SKU RA35-12F-50K-90WH) is the clean, discreet LED downlight homeowners and contractors reach for when they want light — not hardware — on the ceiling. Call it a pot light, a recessed can, a round LED light or simply a recessed downlight: this fixed round unit drops into a 3 5/8" (92 mm) hole, sits flush with the drywall and delivers a tidy, glare-controlled beam. It's a favourite for kitchen downlights, hallways, bedrooms, basements, retail counters and office corridors, in both new construction and retrofit work.

Under the hood is a 12 W LED module producing up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so wood grain, paint colours, food and fabrics look the way they should. The lens shapes a 38° beam spread — tight enough to feel intentional over an island or a vanity, wide enough to layer for general lighting. It runs on 100-135 V AC, 50/60 Hz through a 300 mA dimmable Class II electronic driver, and it is compatible with industry-standard TRIAC/ELV dimmers. The airtight fixed aluminum body carries an anodized blue heat sink for maximum airflow around the LED, and the fixture measures 4 3/8" (111 mm) across with a 15/16" (34 mm) profile. cETLus certified, LM79 and LM80 tested, rated for wet locations and approved for direct contact with insulation, with a projected life of 70% at 33,000 hours and a lifetime warranty.

From a Montréal condo renovation to a Prairie basement finish or a small clinic waiting room, this white recessed LED fixture earns its place: covered porches, soffits, bathrooms and showers are all fair game thanks to the wet location rating, and the -20°C to 40°C operating range suits Canadian shoulder seasons. Two spring-loaded clips grab any ceiling material, and three quick-connect push-in terminals make wiring fast. Want the same housing in another look or another white? Compare the 3.5" LUNA LED round recessed fixture RA35-12F-30K-90WH, the black RA35-12F-40K-90BK or the dim-to-warm RA35-12F-DTW-90WH. Plan your layout, order your run, and light the whole project with one consistent downlight.

Built to disappear into the ceiling
The LUNA 3.5" platform is built around a durable airtight fixed aluminum body with an anodized blue heat sink that keeps airflow moving around the LED light source — the single biggest factor in how long a recessed LED downlight holds its output. The trim is finished in white to blend with standard ceilings, and the compact footprint (4 3/8" / 111 mm overall, 15/16" / 34 mm deep at the trim) means it works where deep cans simply won't fit: shallow joist bays, bulkheads, soffits and dropped ceilings. Because it is airtight and approved for direct contact with insulation, it respects the building envelope in well-sealed Canadian homes.

Light quality you can actually see
A 12 W LED module delivers up to 600 lumens with a typical CRI of 90, which is the difference between "lit" and "flattering". Skin tones, stained cabinetry, tile and artwork all read correctly under 90 CRI, and the 57 lumens per watt efficacy keeps energy use far below the halogen cans this fixture replaces. The lens produces a controlled 38° beam spread, ideal for spacing a clean grid of round downlights down a hallway or over a counter without hot spots or scalloping on the walls.

Technical specifications
Model: RA35-12F-50K-90WH
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Class II: Yes
Power factor: >0.90
Hole cut: Ø 3 5/8" (92mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime

Wiring, dimming and installation
The extruded aluminum hardwire box houses a 300 mA dimmable Class II electronic driver with 100-135 V AC input, and three quick-connect push-in terminals make the line, neutral and ground connections in seconds — a real time-saver when you're installing a dozen dimmable LED downlights in one afternoon. An 18" (457 mm) FT6-rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings, so the box can sit comfortably above a T-bar grid. Two spring-loaded clips attach the fixture to any ceiling material, and the Ø 3 5/8" (92 mm) hole cut is easy to template. Pair the fixture with an industry-standard TRIAC or ELV dimmer for smooth control; Liteline publishes a compatible dimmer list for the LUNA family.

Where it works, what it pairs with, and the paperwork
Use it as general lighting in kitchens, living rooms, bedrooms and finished basements, as a discreet wash in retail change rooms and boutique ceilings, or over covered patios and in bathrooms where a wet location rated fixture is required. Accessories are sold separately and include round pre-mounting and new construction plates with driver attachment clips for 3½" LUNA LED fixtures, a new construction mounting kit with hanger bars, reducer rings in black, brushed nickel or white, and vapour barrier extenders for new construction or remodel work — a common ask on any recessed lighting vapor barrier detail. Keep a consistent look across a whole floor by mixing finishes and colour temperatures from the same housing, such as the brushed nickel RA35-12F-27K-90BN, the RA35-12F-40K-90BN or the dim-to-warm RA35-12F-DTW-90BK. The full technical PDF spec sheet is available in the Documentation tab for your submittal package.
