ORBIT 4" ROTATABLE GIMBAL - SCP4S-9W-CCT-WH

Name: ORBIT 4" ROTATABLE GIMBAL - SCP4S-9W-CCT-WH
Brand: LITELINE
SKU: SCP4S-9W-CCT-WH
Price: 32.97 CAD
Availability: InStock

SKU: SCP4S-9W-CCT-WH

Brand: LITELINE

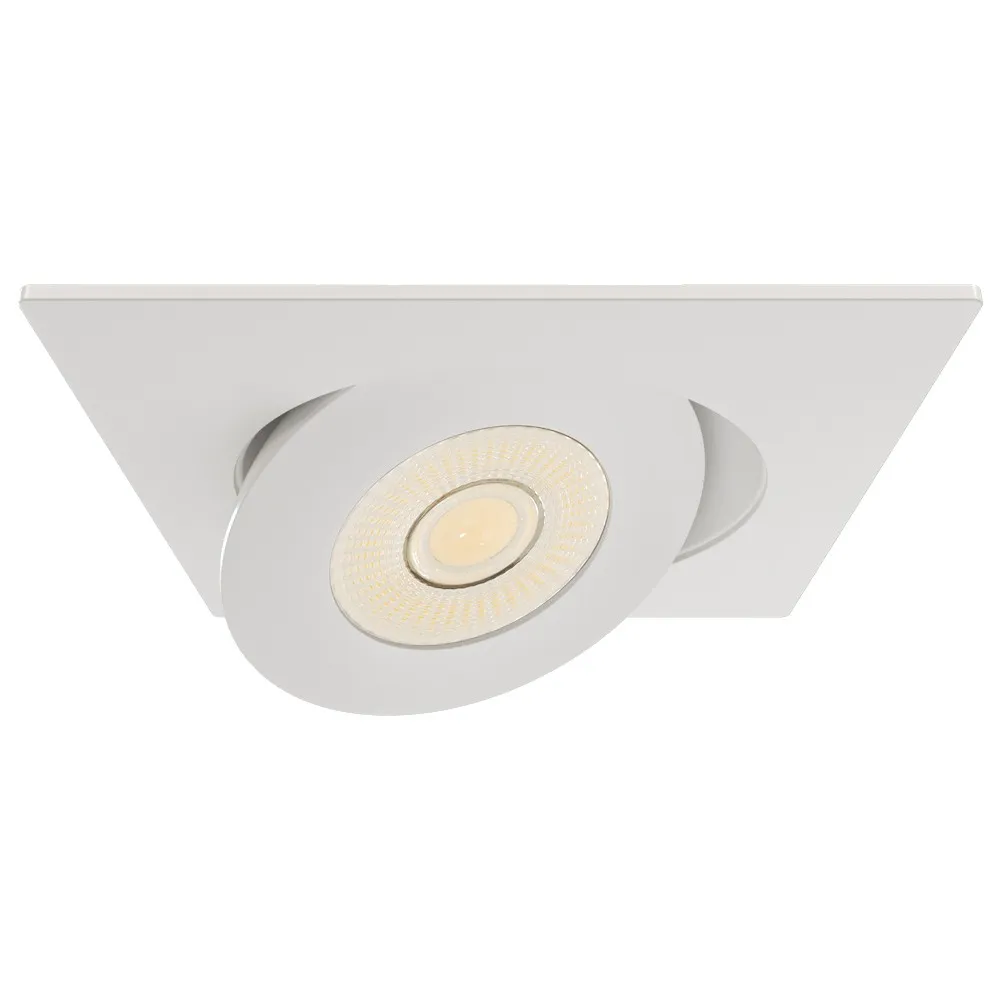

Aim your light exactly where it matters. The ORBIT 4" Rotatable Gimbal, model SCP4S-9W-CCT-WH by LITELINE, is a square-trim 4 inch LED gimbal recessed light — what most people call a pot light, adjustable downlight or directional recessed downlight — built for homeowners, renovators and contractors who want real aiming control. With 360° rotation and 80° of tilt, one fixture can wash a stone fireplace, graze a feature wall, light a kitchen island or follow the slope of a vaulted ceiling. It's a favourite for anyone shopping surface mount led downlights, gimbal downlights or accent recessed lighting, and the white square trim blends cleanly into drywall, soffits and modern ceilings.

This is a 9 watt LED downlight that delivers up to 1010 lumens — up to 112 lumens per watt — with a typical CRI of 96, so skin tones, wood grain, paint colours and merchandise look the way they should. The 5-position CCT switch gives you five selectable colour temperatures: 2700 K (868 lm), 3000 K (927 lm), 3500 K (971 lm), 4000 K (1010 lm) and 5000 K (982 lm). The 36° beam spread keeps light focused, and dimming runs from 100% down to 10% with industry-standard TRIAC/ELV dimmers. Body is durable aluminum in a white finish, powered by a Class II 210 mA driver at 100-135V AC, 60Hz. It's cETLus certified, Energy Star and Title 24 compliant, suitable for wet locations, airtight, approved for direct contact with insulation, rated for -40°C~40°C, projected at 70% @ 50,000 hrs and backed by a lifetime warranty.

From basements and hallways to covered porches, soffits, bathrooms, showrooms, boutiques and restaurants, this gimbal earns its place in Canadian homes and businesses — indoor or outdoor rated, and comfortable with our winters down to -40°C. Cut-out is Ø 4 1/4" (108 mm) and two spring-loaded clips grip any ceiling material, while three quick-connect push-in terminals and the 15" FT6 cable with 3-pin DC connector make wiring fast in plenums and suspended ceilings. Prefer a different look? The same light is offered as a round trim in Orbit 4" rotatable gimbal white, or in square black and brushed nickel. Pick your finish and light your project the smart way.

Built to be aimed
The ORBIT square gimbal starts with a durable aluminum body offering 360° rotation and 80° tilting, so the light head moves independently of the trim. That's what separates a true adjustable gimbal pot light from a fixed downlight: you set the fixture once, then fine-tune the aim after the ceiling is finished. The square white trim gives a crisp architectural edge, and the 36° beam spread from the lens keeps the output tight enough for accenting without scalloping everything in sight. Overall the fixture measures 4 1/4" (108 mm) at the trim, 4 15/16" (125 mm) across the housing and 3 15/32" (88 mm) deep, with the driver box adding 3 3/8" (85 mm) x 1 7/16" (37 mm) x 15/16" (34 mm).

Light quality and colour selection
A 9 watt LED module maintains uniform intensity and produces up to 1010 lumens with a typical CRI of 96 — exceptional colour rendering for kitchens, retail displays, galleries and bathrooms. The 5-position CCT switch means five selectable colour temperatures from one SKU: 2700 K at 868 lumens for a warm living-room glow, 3000 K at 927 lumens, 3500 K at 971 lumens, 4000 K at 1010 lumens for kitchens and workspaces, and 5000 K at 982 lumens for garages and task areas. Efficacy reaches up to 112 lumens per watt, with LM79 and LM80 testing on file and a projected life of 70% @ 50,000 hrs.

Electrical and installation
Inside the extruded aluminum hardwire box sits a 210 mA dimmable Class II electronic LED driver with a 100-135V AC, 60Hz input and a 0.95 power factor. A 15" FT6 rated cable with a 3-pin DC connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three quick-connect push-in terminals speed up wiring, and two spring-loaded clips let the fixture snap into any ceiling material through a Ø 4 1/4" (108 mm) hole cut. Dimming runs 100%-10% on industry-standard TRIAC/ELV dimmers. The fixture is airtight, approved for direct contact with insulation, suitable for wet locations, indoor / outdoor rated, cETLus certified, Energy Star qualified, Title 24 compliant and operates from -40°C~40°C (-40°F~104°F). Warranty: lifetime.

Technical specifications
Model: SCP4S-9W-CCT-WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 9W
Lumens: Up to 1010
Lumens per watt: Up to 112
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 96
Beam angle: 36°
Input: 100-135V AC, 60Hz
Power factor: 0.95
Dimming: Yes, TRIAC/ELV, 100%-10%
Hole cut: Ø 4 1/4" (108 mm)
Colour: WH (white), also BK / BN
Certification: cETLus, Energy Star, Title 24, Class II
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Applications, options and documentation
Because it's wet location rated and airtight, this 4" gimbal downlight works under covered porches and soffits, in bathrooms and showers, above kitchen islands, along basement stairs, and in insulated ceilings where a standard fixture can't go — and it's a natural fit for sloped or vaulted ceilings where the tilt brings the beam back to vertical. Contractors use runs of them in retail aisles, dental and medical clinics, cafés and office corridors. The same Orbit platform is available in round trim — white, black and brushed nickel — and in square brushed nickel, so you can mix finishes room by room. Accessories such as pre-mounting plates, new construction mounting kits, vapour barrier extenders, reducer rings and flexible FT6 extensions are sold separately. For full photometrics, dimensions and the ordering guide, see the SCP4S-9W-CCT-WH spec sheet in the Documentation tab.
