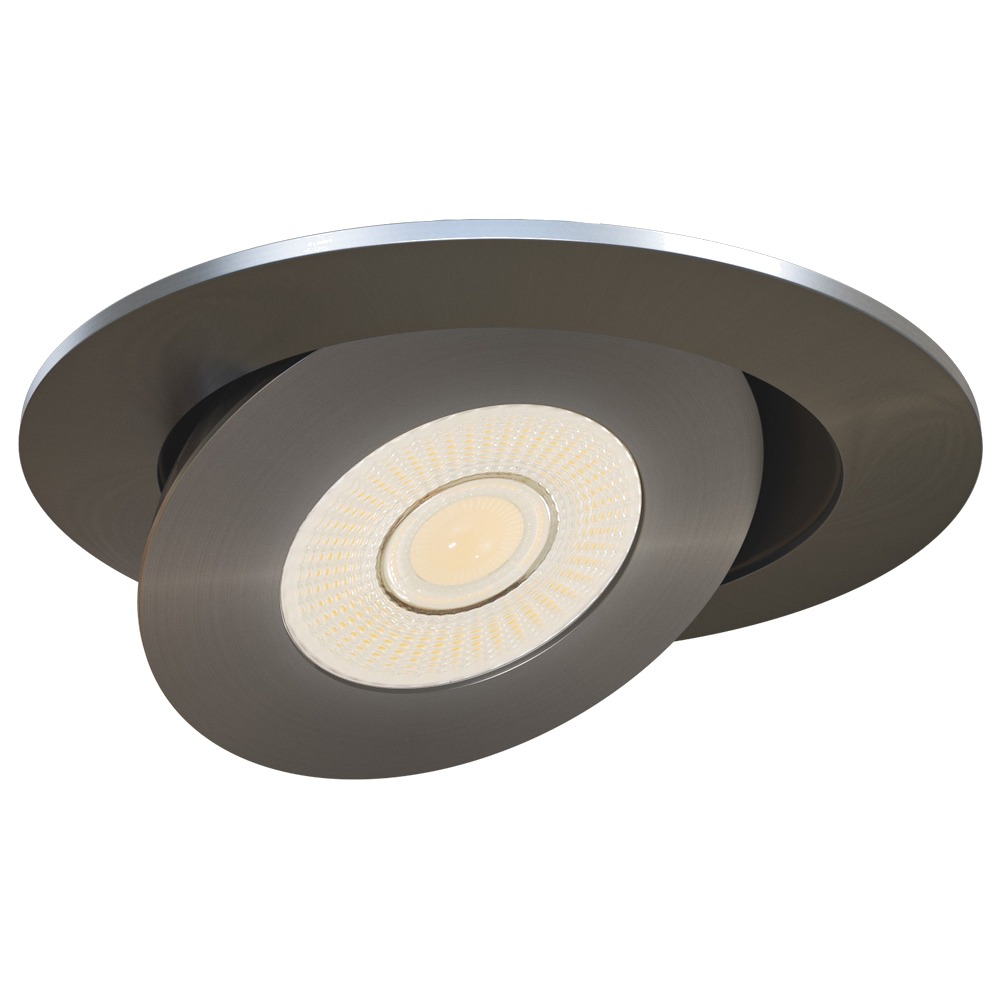

ORBIT 4" ROTATABLE GIMBAL - SCP4-9W-CCT-BN

Name: ORBIT 4" ROTATABLE GIMBAL - SCP4-9W-CCT-BN
Brand: LITELINE
SKU: SCP4-9W-CCT-BN
Price: 35.97 CAD
Availability: InStock

SKU: SCP4-9W-CCT-BN

Brand: LITELINE

Point the light exactly where you want it — that's the whole idea behind the ORBIT 4" Rotatable Gimbal in brushed nickel, model SCP4-9W-CCT-BN by LITELINE. Call it a gimbal pot light, an adjustable 4-inch recessed downlight, a directional LED recessed downlight or simply an aimable pot light — it's the fixture homeowners, renovators and contractors reach for when a fixed downlight just won't do. With 360° rotation and 80° of tilt, it washes a stone fireplace, grazes a feature wall, follows a sloped ceiling line or lights a kitchen island exactly on target. It's a colour selectable downlight too, so one box covers warm cozy rooms and crisp task areas alike.

Under the hood, a 9 watt LED module delivers up to 1010 lumens at up to 112 lumens per watt, with a beautiful typical CRI of 96 that makes wood tones, paint colours and skin tones look true. The 5-position CCT switch gives you five selectable colour temperatures — 2700 K (868 lumens), 3000 K (927), 3500 K (971), 4000 K (1010) and 5000 K (982) — and the 36° beam spread keeps the light controlled. It runs on 100-135V AC, 60Hz through a dimmable Class II driver, dims smoothly from 100% to 10% on standard TRIAC/ELV dimmers, and is rated for wet locations, direct contact with insulation and airtight installation. cETLus certified, Energy Star and Title 24 compliant, with a projected life of 70% at 50,000 hours, a 0.95 power factor and a lifetime warranty. Cutout is Ø 4 1/4" (108 mm).

Perfect for vaulted ceilings, soffits, covered porches, bathrooms and showers, retail displays, restaurants, offices and condo renos across Canada — indoor or outdoor rated, and built to work from -40°C to 40°C. Two spring-loaded clips grab any ceiling material, and three quick connect push-in terminals make wiring fast. Prefer a different trim? The same fixture is offered in Orbit 4" rotatable gimbal in black and Orbit 4" rotatable gimbal in white. Add the brushed nickel gimbal to your lighting plan and aim every beam exactly where it belongs.

Built to be aimed
The ORBIT gimbal starts with a durable aluminum body that turns a full 360° and tilts up to 80°, so a row of downlights can be aligned perfectly or fanned across artwork, millwork and feature walls. The brushed nickel trim (BN) is one of three finishes offered in this family — black, brushed nickel and white — and the compact profile keeps the fixture discreet once installed. Physical dimensions from the spec sheet: 4 15/16" (125 mm) overall, 4 3/16" (106 mm) and 3 15/32" (88 mm) sections, a 3 3/8" (85 mm) depth element, 1 7/16" (37 mm) and 15/16" (34 mm) details, with a required hole cut of Ø 4 1/4" (108 mm).

Light quality you can see
A 9 watt LED module produces up to 1010 lumens with uniform intensity and a typical CRI of 96 — the kind of colour rendering that matters over a kitchen counter, in a bathroom mirror zone or in a retail display case. The lens delivers a 36° beam spread for controlled, glare-aware pools of light, and the 5 position CCT switch lets you pick 2700 K, 3000 K, 3500 K, 4000 K or 5000 K on site. Output follows the setting: 868 lumens at 2700 K, 927 at 3000 K, 971 at 3500 K, 1010 at 4000 K and 982 at 5000 K, for up to 112 lumens per watt.

Electrical and installation details
The extruded aluminum hardwire box houses a 210 mA dimmable Class II electronic LED driver with a 100-135V, 60Hz AC input and a 0.95 power factor. A 15" (381 mm) FT6 rated cable with a 3-pin DC connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three quick connect push-in terminals speed up wiring, and two spring loaded clips let the fixture mount in any ceiling material. Dimming runs 100% to 10% with industry standard TRIAC/ELV dimmers. The fixture is suitable for wet locations, approved for direct contact with insulation, airtight, indoor/outdoor rated and operates from -40°C to 40°C (-40°F to 104°F).

Technical specifications
SKU: SCP4-9W-CCT-BN
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 9W
Lumens: Up to 1010
Lumens per watt: Up to 112
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 96
Beam angle: 36°
Input: 100-135V AC, 60Hz
Dimming: Yes, TRIAC/ELV
Hole cut: Ø 4 1/4" (108 mm)
Colour: BN (Brushed Nickel)
Certification: cETLus
Class II: Yes
Energy Star: Yes
Title 24: Yes
LM79 / LM80: Yes
Power factor: 0.95
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Where it works and what's documented
Think sloped and vaulted ceilings where a fixed downlight would throw light at the wrong angle, exterior soffits and covered entries, bathrooms and shower zones thanks to the wet location rating, plus offices, boutiques, cafés and condo corridors where a 96 CRI accent beam makes merchandise and finishes pop. Accessories listed for the ORBIT family are sold separately and include round pre-mounting plates (P-4020, P-4024), new construction plates and kits (P-4020NC, P-NCMK-1), vapour barrier extenders (VBE-1, VBE-2, VBE-3, VBE-4), reducer rings for 4" fixtures including the brushed nickel RA4-XLRING-BN, and flexible FT6 extensions ORBIT-EXT-10-3W and ORBIT-EXT-50-3W (2 pieces max). Matching finishes are available as the Orbit 4" rotatable gimbal in black and the Orbit 4" rotatable gimbal in white. The full technical PDF spec sheet for SCP4-9W-CCT-BN is in the Documentation tab for cutout sizes, photometrics and wiring details.
