ORBIT 4" ROTATABLE GIMBAL - SCP4S-9W-CCT-BK

Name: ORBIT 4" ROTATABLE GIMBAL - SCP4S-9W-CCT-BK
Brand: LITELINE
SKU: SCP4S-9W-CCT-BK
Price: 32.97 CAD
Availability: InStock

SKU: SCP4S-9W-CCT-BK

Brand: LITELINE

Point the light exactly where you want it — the ORBIT 4" Rotatable Gimbal (SKU SCP4S-9W-CCT-BK) is a square-trim LED recessed downlight in black that rotates a full 360° and tilts up to 80°. People look for it under many names: adjustable pot light, 4 inch gimbal light, directional recessed light, eyeball or slope-ceiling downlight, or simply a colour selectable LED downlight. Whether you're washing a stone fireplace, highlighting artwork, lighting a kitchen island or putting clean, aimable light into a sloped or vaulted ceiling, this Liteline fixture does the job with a low-profile, streamlined look that disappears into the ceiling.

Under the hood is a 9 watt LED module that delivers up to 1010 lumens and up to 112 lumens per watt — real brightness from very little power. The 5-position CCT switch lets you choose 2700 K, 3000 K, 3500 K, 4000 K or 5000 K on the spot (868, 927, 971, 1010 and 982 lumens respectively), so warm living-room light and crisp task light come from the same box. A typical CRI of 96 renders wood grain, paint colours and skin tones beautifully, while the 36° beam spread keeps the light controlled. It dims from 100% to 10% with industry-standard TRIAC/ELV dimmers, runs on 100-135V AC 60Hz, carries a 0.95 power factor, and is rated for wet locations, direct contact with insulation and airtight installation. Cut a Ø 4 1/4" (108 mm) hole, use the two spring-loaded clips and you're done. cETLus listed, Energy Star, Title 24 compliant, LM79 and LM80 tested, 70% output at 50,000 hours, backed by a lifetime warranty.

This black square gimbal is a favourite in condos, basements, hallways, covered porches, soffits, retail displays, cafés and offices — and since it handles -40°C to 40°C and wet locations, it's built for Canadian eaves and exposed entryways. Need a different look? The same light is offered in Orbit 4" rotatable gimbal square in brushed nickel and Orbit 4" rotatable gimbal square in white, or in a round trim with the Orbit 4" rotatable gimbal round in black. Order your ORBIT gimbals today and aim your light exactly where it matters.

Built to be aimed

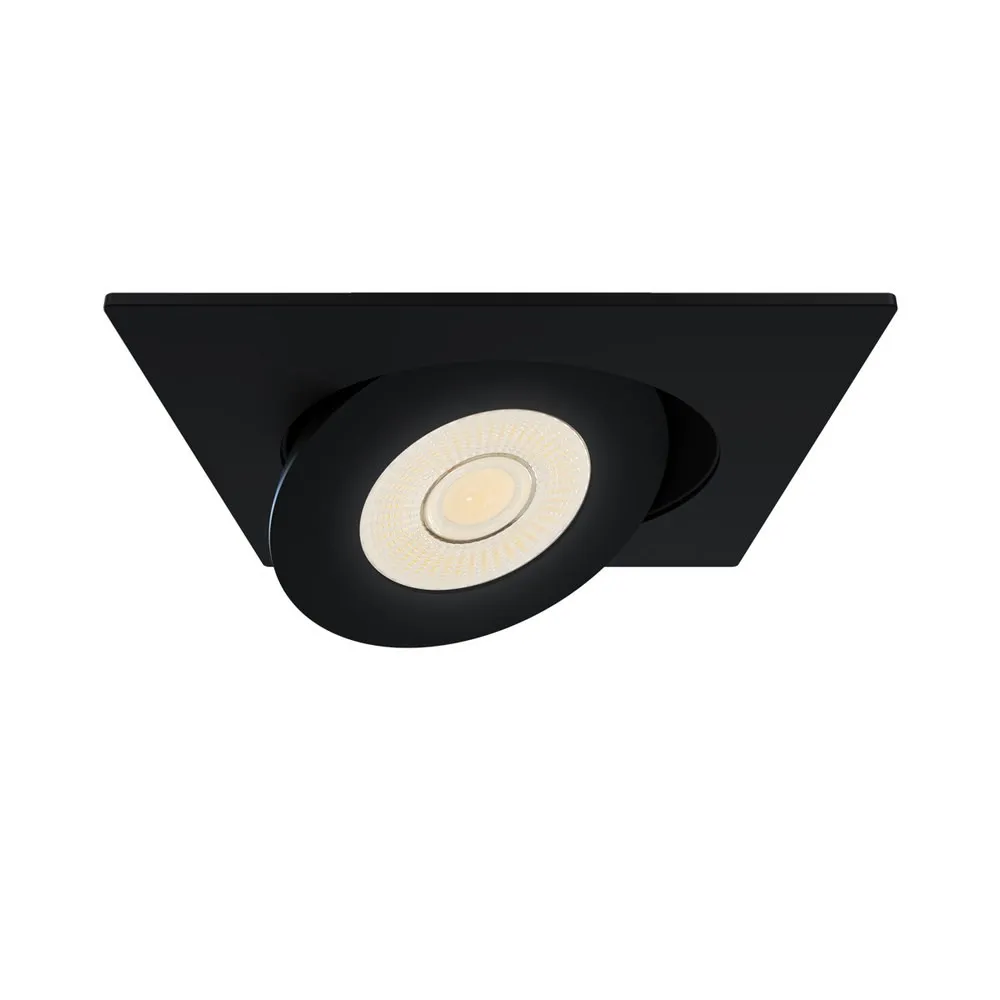

The ORBIT SCP4S-9W-CCT-BK is built around a durable aluminum body with 360° rotation and 80° tilting, finished in black with a square trim. That freedom of movement is what separates a gimbal recessed light from a fixed downlight: once the housing is in the ceiling, you can still rotate and tilt each head to graze a wall, hit a shelf or correct the aim of a sloped ceiling installation. Two spring-loaded clips grip any ceiling material, and the fixture measures 4 15/16" (125 mm) wide with a 3 15/32" (88 mm) trim depth, for a tidy, low-profile result.

Light quality and colour selection
The 9 watt LED module maintains uniform intensity and produces up to 1010 lumens with a typical CRI of 96 — among the highest colour rendering you'll find in a 4" downlight, which matters in kitchens, bathrooms, retail and anywhere finishes and merchandise need to look true. A 5 position CCT switch on the fixture sets the colour temperature: 2700 K (868 lumens), 3000 K (927 lumens), 3500 K (971 lumens), 4000 K (1010 lumens) or 5000 K (982 lumens). The lens delivers a 36° beam spread, ideal for accent and task lighting rather than flat, washed-out coverage. Projected life is 70% output at 50,000 hours, and the fixture is LM79 and LM80 tested.

Electrical and installation details
Power comes from an extruded aluminum hardwire box housing a 210 mA dimmable Class II electronic LED driver with 100-135V, 60Hz AC input. A 15" (381 mm) FT6 rated cable with a 3-pin DC connector joins the driver to the fixture and is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast — a real time-saver on multi-fixture jobs. Dimming runs from 100% to 10% with industry standard TRIAC/ELV dimmers. Hole cut is Ø 4 1/4" (108 mm). The fixture is suitable for wet locations, approved for direct contact with insulation, airtight, indoor/outdoor rated, and operates from -40°C to 40°C (-40°F to 104°F).

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 36°
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Class II: Yes
Colour: BK (black)
CRI: 96
Dimming: Yes, TRIAC/ELV
Energy Star: Yes
Hole Cut: Ø 4 1/4" (108 mm)
Input: 100-135V AC, 60Hz
Lumens: Up to 1010
Lumens per Watt: Up to 112
Power Factor: 0.95
Projected Life: 70% @ 50,000 hrs
Title 24: Yes
Warranty: Lifetime
Wattage: 9W

Applications, accessories and documentation
Use it in new construction or retrofit: a row of gimbals over a kitchen counter, angled heads down a hallway gallery, soffit and porch lighting that survives Canadian weather, basement and vaulted ceiling projects, or accent lighting in a boutique, clinic or café. Accessories are sold separately and include pre-mounting plates (P-4020, P-4024), a new construction plate (P-4020NC), a new construction mounting kit (P-NCMK-1), vapour barrier extenders (VBE-1, VBE-2, VBE-3, VBE-4), black, brushed nickel or white reducer rings (RA4-XLRING-BK, RA4-XLRING-BN, RA4-XLRING-WH) and flexible FT6 extensions (ORBIT-EXT-10-3W, ORBIT-EXT-50-3W, 2 pcs max). Mixing finishes on the same project is easy with the square white version or the round Orbit gimbal in brushed nickel. The full technical PDF spec sheet is available in the Documentation tab for your dimensions, photometrics and ordering codes.
