ORBIT 4" ROTATABLE GIMBAL - SCP4-9W-CCT-WH

Name: ORBIT 4" ROTATABLE GIMBAL - SCP4-9W-CCT-WH
Brand: LITELINE
SKU: SCP4-9W-CCT-WH
Price: 32.97 CAD
Availability: InStock

SKU: SCP4-9W-CCT-WH

Brand: LITELINE

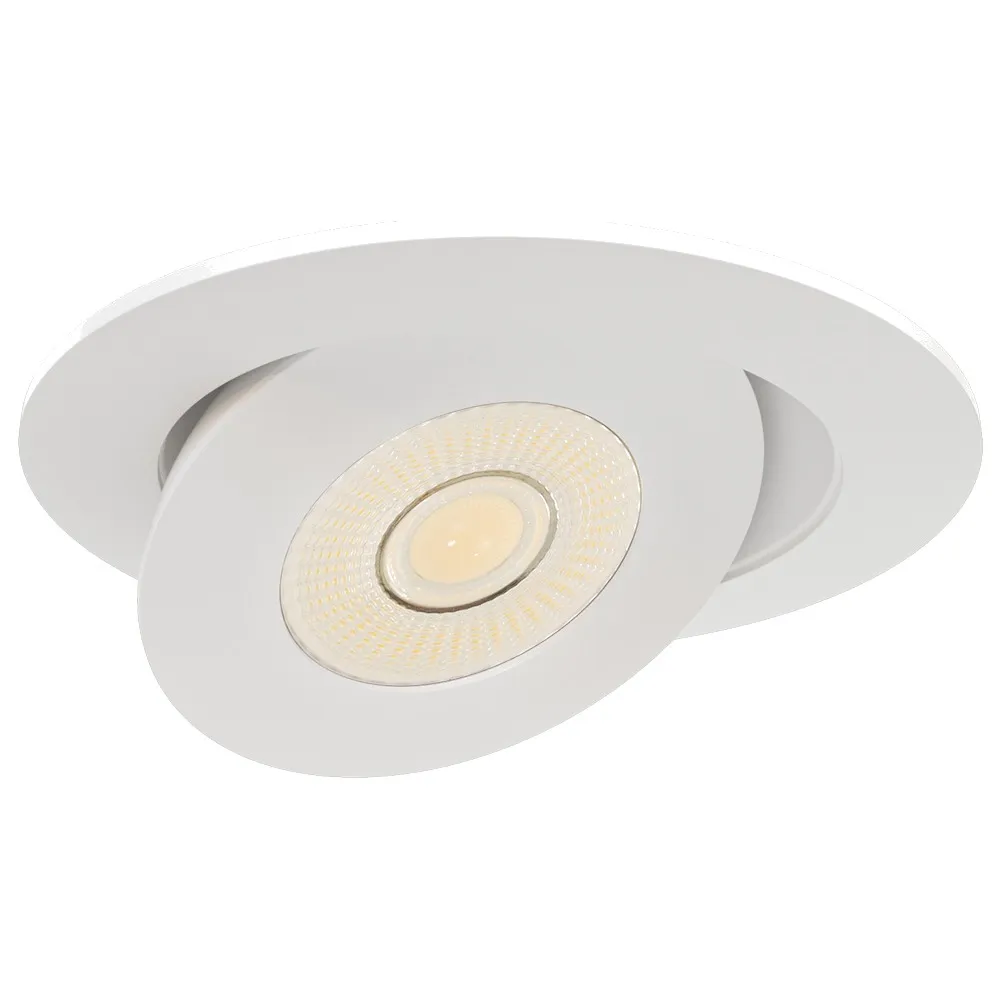

Point your light exactly where you want it. The ORBIT 4" Rotatable Gimbal (SKU SCP4-9W-CCT-WH) is a slim LED gimbal recessed light — what most people call a 4 inch pot light, adjustable downlight or directional recessed downlight — built by LITELINE with a white trim and a head that turns a full 360° and tilts up to 80°. That means one fixture can wash a stone fireplace, graze a feature wall, highlight artwork or simply throw clean, even light straight down over a kitchen island. It is a favourite for sloped and vaulted ceilings, soffits, hallways, retail displays and any job where fixed downlights just don't aim where the design needs them.

Under the hood, a 9 watt LED module delivers up to 1010 lumens (up to 112 lumens per watt) with a beautiful typical CRI of 96, so wood grain, paint colours, skin tones and merchandise look the way they should. A 5-position CCT switch lets you pick the mood on site — 2700 K, 3000 K, 3500 K, 4000 K or 5000 K (868, 927, 971, 1010 and 982 lumens respectively) — no need to stock five different fixtures. The 36° beam angle keeps the light tight and intentional. It runs on 100-135V AC, 60Hz through a dimmable Class II electronic driver, dims smoothly from 100% down to 10% on standard TRIAC/ELV dimmers, and carries a 0.95 power factor. The durable aluminum body is airtight, suitable for wet locations, approved for direct contact with insulation, cETLus certified, Energy Star and Title 24 listed, LM79 and LM80 tested, rated 70% at 50,000 hours and backed by a Lifetime warranty. Hole cut is Ø 4 1/4" (108 mm).

From a basement reno in Laval to a boutique fit-up in Calgary, this gimbal handles Canadian realities: covered porches and soffits (wet location rated), insulated attics (IC rated), and cold starts down to -40°C. Two spring-loaded clips grip any ceiling material, three Quick Connect push-in terminals speed up the wiring, and a 15" FT6 cable with 3-pin DC connector is plenum and suspended-ceiling approved. Prefer a darker or warmer trim in the same fixture? See the Orbit 4" rotatable gimbal in black or the Orbit 4" rotatable gimbal in brushed nickel. Aim it, dim it, done — add the ORBIT to your project today.

Built to be aimed
The ORBIT 4" gimbal is made around a durable aluminum body with a full 360° rotation and 80° of tilt, so a single trim can be re-aimed long after the drywall is closed up. The white finish (WH) blends into a painted ceiling, while the low-profile housing keeps the assembly compact: 4 15/16" (125 mm) overall, 3 15/32" (88 mm) deep, with a 4 3/16" (106 mm) trim face and a Ø 4 1/4" (108 mm) hole cut. Two spring-loaded clips hold it firmly in drywall, plaster, wood or T-bar. This SKU is SCP4-9W-CCT-WH; the same fixture is offered in round and square trim shapes and in three finishes.

Light quality you can see
The 9 watt LED module maintains uniform intensity and produces up to 1010 lumens with a typical CRI of 96 — an excellent rendering level for kitchens, bathrooms, galleries, showrooms and anywhere colour accuracy matters. The 5-position switch selects 2700 K (868 lm), 3000 K (927 lm), 3500 K (971 lm), 4000 K (1010 lm) or 5000 K (982 lm), so one box covers warm residential spaces and crisp commercial ones. The lens delivers a controlled 36° beam spread, ideal for accenting rather than flooding, and efficiency reaches up to 112 lumens per watt.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 9W
Lumens: Up to 1010
Lumens per Watt: Up to 112
CRI: 96
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Beam Angle: 36°
Input: 100-135V AC, 60Hz
Dimming: Yes, 100%-10%
Dimming Tech: TRIAC/ELV
Power Factor: 0.95
Hole Cut: Ø 4 1/4" (108 mm)
Operating Temperature: -40°C~40°C (-40°F~104°F)
Projected Life: 70% @ 50,000 hrs
Certification: cETLus
Class II: Yes
Energy Star: Yes
Title 24: Yes
LM79 / LM80: Yes
Colour: WH (white)
Warranty: Lifetime

Electrical and installation
An extruded aluminum hardwire box houses a 210mA dimmable Class II electronic LED driver with 100-135V, 60Hz AC input. Three "Quick connect" push-in terminals make the wiring fast — a real time-saver when you're installing a dozen pot lights in an afternoon. A 15" (381 mm) FT6 rated cable with a 3-pin DC connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. The fixture is airtight, approved for direct contact with insulation and suitable for wet locations, so it can go under a soffit or in a covered entry. It dims from 100% to 10% on industry-standard TRIAC/ELV dimmers; always confirm your dimmer against the manufacturer's compatibility list before final wiring.

Applications, accessories and documentation
Think sloped ceilings in a chalet, a soffit over a deck, track-free accent lighting above a reception desk, shelving in a boutique, or a row of aimed downlights along a corridor in a clinic. Accessories are sold separately and include pre-mounting plates (P-4020, P-4024, P-4020NC), the P-NCMK-1 new construction mounting kit, VBE-1 to VBE-4 vapour barrier extenders, RA4-XLRING-WH reducer ring for 4" fixtures in white, and ORBIT-EXT-10-3W / ORBIT-EXT-50-3W flexible FT6 extensions (2 pcs max). Matching finishes are available: the Orbit 4" rotatable gimbal in black and the Orbit 4" rotatable gimbal in brushed nickel. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit package.
