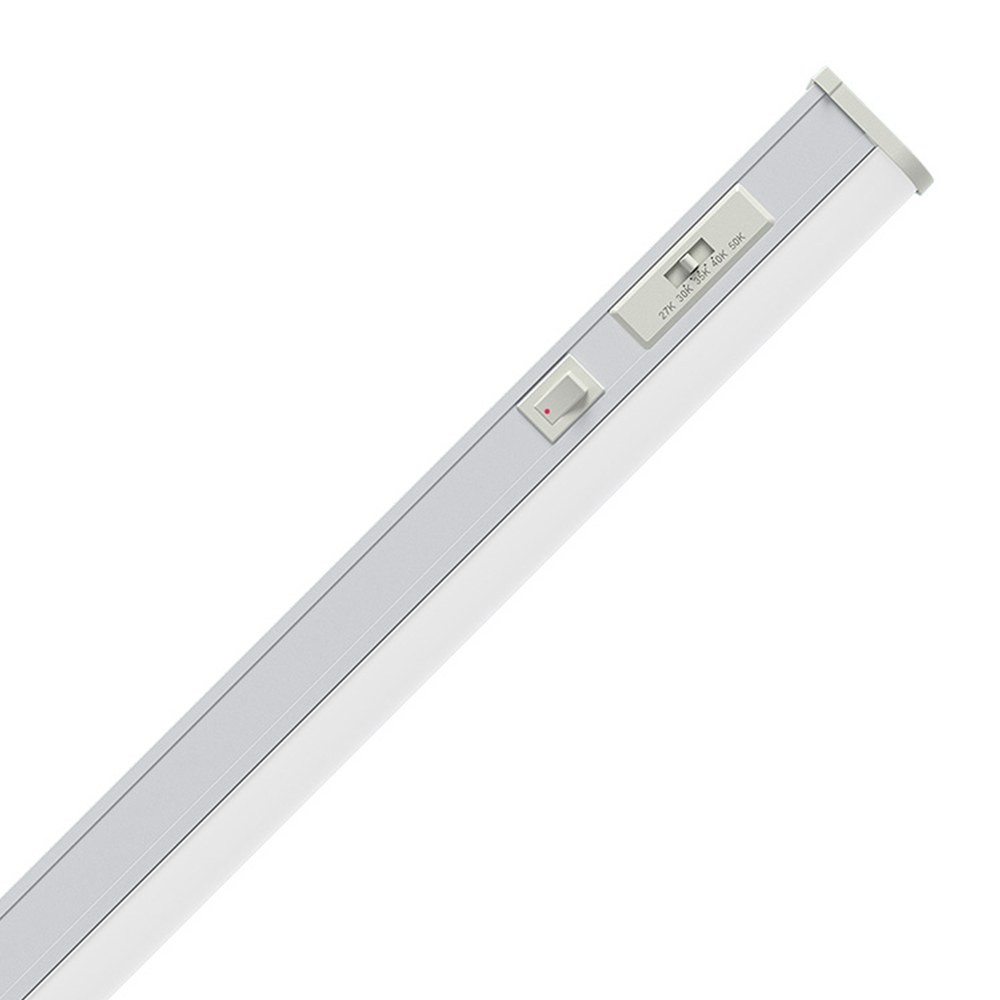

Built to last, built to disappearThe housing is a
durable extruded aluminum frame with a frosted smooth lens, a combination that both protects the LED strip and hides the individual diodes. At 1-5/16" (33 mm) wide and only 1" (25 mm) tall, this
under cabinet LED bar tucks behind a valance or against the back of a cabinet without dropping into your sightline. The 58" (1474 mm) length covers long runs of millwork with a single fixture, which means fewer joints, fewer cords and a cleaner install. The fixture is suitable for dry location applications only.
Light quality and colour selectionAn integrated LED strip maintains uniform intensity with 70% lumen maintenance at 60,000 hours and a rated life of 36,000 hours average life at 90 CRI. The
5-position CCT select switch gives you five selectable colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so you can warm up a kitchen backsplash or go crisp and cool over a workbench without changing fixtures. At 22W this model produces 1200 lumens at 2700 K, 1800 lumens at 3000 K, 1600 lumens at 3500 K, 1800 lumens at 4000 K and 1800 lumens at 5000 K. The lens provides a 125°
beam spread for wide, even coverage across the counter.
Technical specificationsSKU: LCFIX-LEDBAR-58IN-CCT
Length: 58" (1474 mm)
Profile: 1-5/16" (33 mm) x 1" (25 mm)
Wattage: 22W
Lumens: Up to 1850
Efficacy: Up to 96 lm/W
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 90+
Beam angle: 125°
Voltage: 120V, 50/60Hz
Dimming: Yes, 100~0%, TRIAC / ELV
Connection type: 3-Wire
Power factor: >0.95
THD: <15
Approved location: Dry
Min. start temp.: -18°C
Operating temperature: -18°C~40°C (0°F~104°F)
Lumen maintenance: 70% @ 60,000 hrs
Rated life: 36,000 hrs
Certification: cULus
Warranty: 3 Years
Wiring, linking and installationThe fixture runs on a built-in silent non-flicker electronic
LED driver at 120V, with a 3-wire connection. A power feed is required and accessories are sold separately: 6' or 16" flexible 3-wire power cords, power cords with 90° connectors (top, left, bottom or right), or a hardwire box, including a version with motion sensor for closets and pantries. Mounting hardware is provided for standard horizontal or vertical wall surfaces, and magnetic clips or 90° clips are available when you prefer a tool-light install. Complete with a joiner, these no-shadow linking fixtures can be linked up to 2500 mA / 300 W on one feed. Dimming is 100~0% with industry standard TRIAC and ELV dimmers, so it ties into the wall control you already have. The fixture is compliant with NFPA 70, NEC section 410.16 (A)(1) for closet use; maintain a minimum of 6" clearance to combustible materials at all times.
Where it works and what to pair it withThink kitchen counters and islands, pantry shelving, bar backs, garage workbenches, display cabinets in a jewellery shop, bakery cases, reception desks and cove ceilings in a condo living room. In a long galley kitchen, one 58" bar can replace three short pucks and give you a continuous line with no scallops. Combine lengths across a room using the
LEDBAR23-CCT or the shorter
LEDBAR14-CCT, and bridge gaps between cabinets with the
flexible connector FBT6136-WH-3. The full technical PDF spec sheet, with the lumen table, dimensions and the accessory ordering guide, is available in the Documentation tab of this page.
