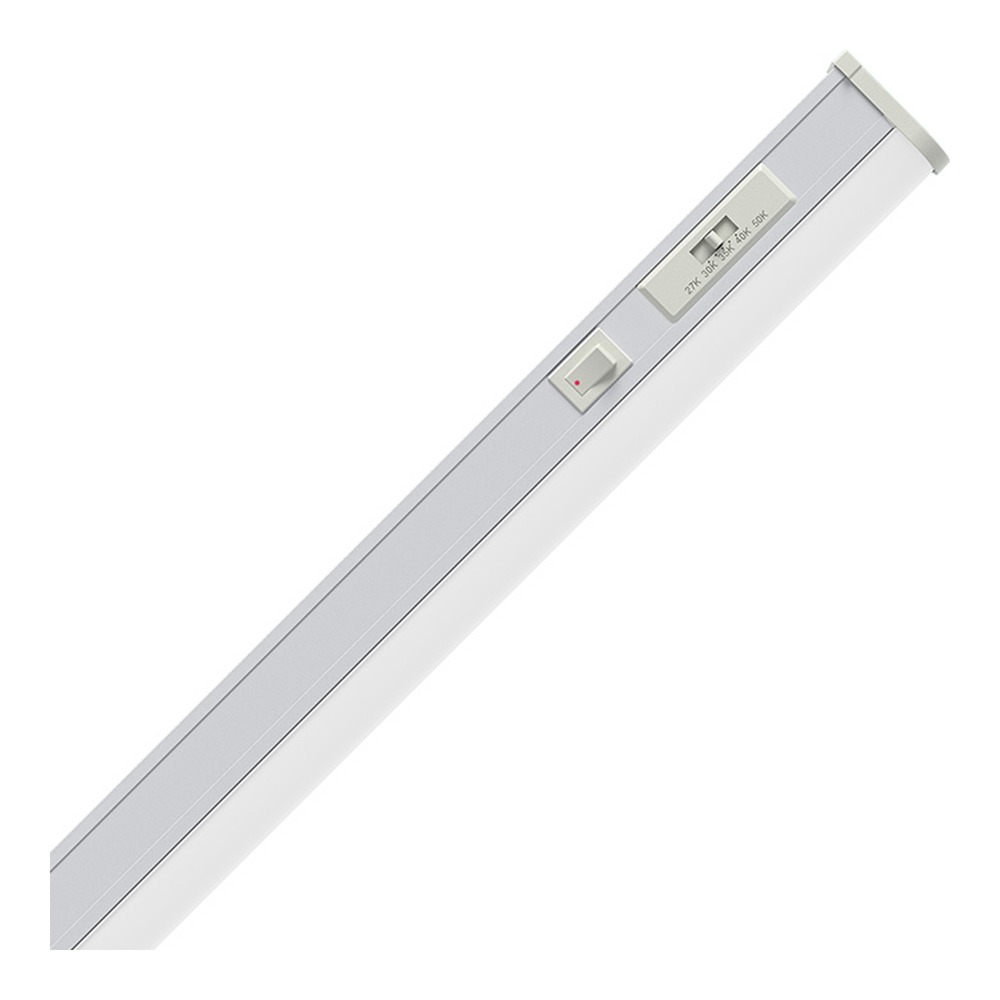

Built like a proper fixture, not a stripThe housing is a durable extruded aluminum frame capped with a frosted smooth lens, the combination that gives this
LED fluorobar its clean, uniform line instead of visible dots. At 1-5/16" (33 mm) wide and 1" (25 mm) tall, it tucks under most cabinet lips and inside millwork reveals without showing. The aluminum body also does real work: efficient thermal management keeps the integrated LED strip running cool, which protects both light output and colour consistency over the long haul. It's approved for dry locations only, so keep it to interior cabinetry, cove details and display work.
Light quality and colour selectionAn integrated LED strip maintains uniform intensity, and the
5-position CCT select switch on the body lets you pick 2700 K, 3000 K, 3500 K, 4000 K or 5000 K — warm and cozy over a bar, neutral over a prep counter, crisp over a workbench — all from one SKU. With
90+ CRI, tomatoes look like tomatoes, walnut looks like walnut and merchandise looks like it should. The lens delivers a 125° beam spread, so light reaches front to back of a standard counter depth rather than leaving a dark strip at the edge.
Technical specificationsSKU: LCFIX-LEDBAR-23IN-CCT
Model: LEDBAR23-CCT
Length: 22⅝" (574 mm)
Width: 1-5/16" (33 mm)
Height: 1" (25 mm)
Wattage: 9W
Lumens: 550 (2700 K), 775 (3000 K), 705 (3500 K), 775 (4000 K), 775 (5000 K)
Efficacy: up to 96 lm/W
CRI: 90+
Beam angle: 125°
Voltage: 120V, 50/60Hz
Dimming: 100~0%, TRIAC / ELV
Connection type: 3-Wire
Power factor: >0.95
THD: <15
Min. start temperature: -18°C
Operating temperature: -18°C~40°C (0°F~104°F)
Rated life: 36,000 hrs
Lumen maintenance: 70% @ 60,000 hrs
Approved location: Dry
Certification: cULus
Warranty: 3 Years
Electrical, linking and installationThe fixture ships with a built-in silent, non-flicker electronic LED driver at 120V, 50/60Hz — no remote driver to hide in the cabinet. It's a
3-wire connection system, and a joiner is included so the no-shadow linking works right out of the box: link fixtures up to 2500 mA / 300 W on a single feed. A power feed is required and is sold separately, as are the clips and connectors, so confirm your feed location before you drill. Mounting hardware is provided for horizontal surfaces or vertical wall surfaces. Dimming runs 100~0% on industry-standard
TRIAC and ELV dimmers. The fixture is rated for use in closets and is compliant with NFPA 70, NEC section 410.16 (A)(1); maintain a minimum of 6" clearance to combustible materials at all times. Installation tip: mount the bar toward the front edge of the cabinet, closer to the door than the wall — this pushes light onto the work surface instead of up the backsplash and cuts glare off glossy counters.
Applications, compatibility and documentationThink kitchen counters and islands, bathroom vanity millwork, closets and pantries, home office shelving, basement bars, bookcases, garage workbenches — plus retail counters, bakery and jewellery display cases, and office reception millwork for small businesses. Build a continuous run by mixing lengths: pair this one with the
LEDBAR14-CCT for short cabinets or step up to the
46³⁄₁₆" LEDBAR CCT over a long counter, then bridge sinks, corners and appliance gaps with the
24" flexible connector FBT6124-WH-3 or the
36" flexible connector FBT6136-WH-3. Full details — lumen tables by colour temperature, dimensions, accessories list and certifications — are in the technical spec sheet available in the Documentation tab.
