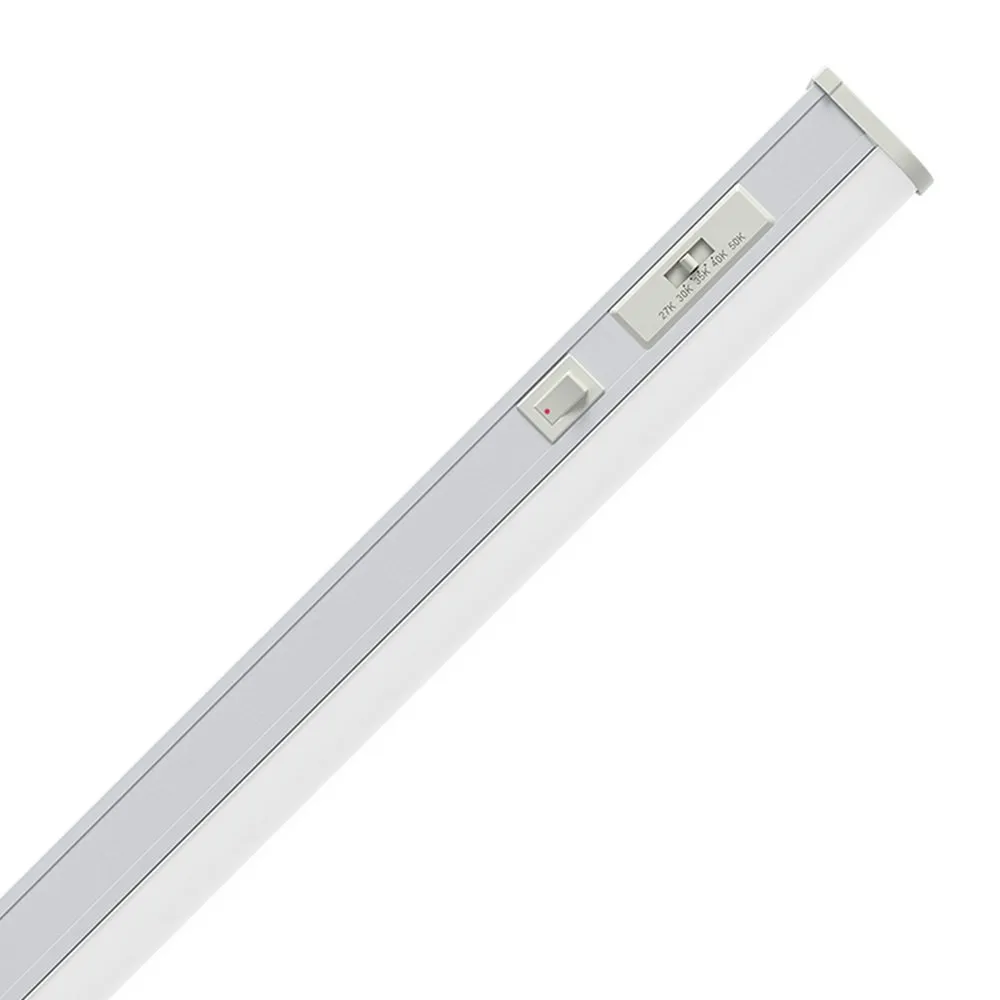

Built to live under a cabinetThe LEDBAR CCT is built around a durable extruded aluminum frame with a frosted smooth lens, a combination that keeps the fixture rigid enough to span long millwork runs while hiding the LEDs behind a soft diffuser. The profile measures 1-5/16" (33 mm) wide by 1" (25 mm) high, so it tucks behind a cabinet valance or inside a cove without stealing headroom over the counter. This model is 46-3/16" (1174 mm) long. An ON/OFF switch and a 5-position 2700-5000K CCT select switch sit right on the body for individual control of each bar. The fixture is suitable for dry location applications only.
Light quality that flatters the roomPowered by an integrated LED strip, this
LED fluorobar maintains uniform intensity with 70% lumen maintenance at 60,000 hours and a rated life of 36,000 hours, at 90 CRI. Ninety-plus colour rendering matters more than people expect under a cabinet: it is the difference between raw chicken looking pink or grey, and between a paint chip reading true or muddy. The lens gives a 125° beam spread, which washes the full depth of a standard counter instead of leaving a bright stripe at the back. The five selectable colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — let you match existing pot lights on site, then change your mind later without changing the fixture.
Technical specificationsModel: LCFIX-LEDBAR-46IN-CCT
Length: 46-3/16" (1174 mm)
Wattage: 18 W
Lumens: 1000 (2700 K), 1500 (3000 K), 1400 (3500 K), 1500 (4000 K), 1500 (5000 K)
Efficacy: up to 96 lm/W
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K selectable
CRI: 90+
Beam angle: 125°
Voltage: 120V, 50/60Hz
Dimming: 100~0%, TRIAC / ELV
Connection type: 3-wire
Power factor: >0.95
THD: <15
Approved location: Dry
Operating temperature: -18°C~40°C (0°F~104°F)
Min. start temperature: -18°C
Lumen maintenance: 70% @ 60,000 hrs
Rated life: 36,000 hrs
Certification: cULus
Warranty: 3 years
Wiring, linking and installationThe fixture ships with a built-in silent non-flicker electronic LED driver, so there is no remote transformer to hide and no buzz over the sink. Mounting hardware is provided for standard horizontal surfaces or vertical wall surfaces. A power feed is required: the FluoroBar accessory family includes 6' and 16" flexible 3-wire power cords, power cords with 90° connectors for top, left, bottom or right entry, and hardwire boxes, including a version with a motion sensor — accessories are sold separately. Complete with a joiner, these no-shadow
linking fixtures can be linked up to 2500 mA / 300 W, and short flexible 3-wire connectors let you jump over a corner, a sink window or a hood. Magnetic mounting clips (3-pack) and 90° mounting clips (2-pack) are also offered for LEDBAR. The fixture is compliant with NFPA 70, NEC section 410.16 (A)(1) and suitable for use in closets; maintain a minimum of 6" clearance to combustible materials at all times. Dimming works with industry standard TRIAC and ELV dimmers.
Where to use it, and what to pair it withThink kitchen counters and islands, walk-in pantries and closets, cove ceilings in a living room, bar backsplashes, workshop benches, retail shelving and display cases, salon stations, bakery and deli counters, and reception desk millwork. Because it comes in five lengths, you can size each cabinet run properly: combine this 46-3/16" bar with the
LEDBAR23-CCT or the
LEDBAR CCT 58" for a continuous line, and use the
36" flexible connector FBT6136-WH-3 where the run has to skip an obstacle. For another take on
under cabinet lighting, see the
LED linear cabinet light 3CCT 4FT. The full technical PDF spec sheet for LCFIX-LEDBAR-46IN-CCT is available in the Documentation tab, with the dimensional drawing, the lumen table by colour temperature and the complete accessory list.
