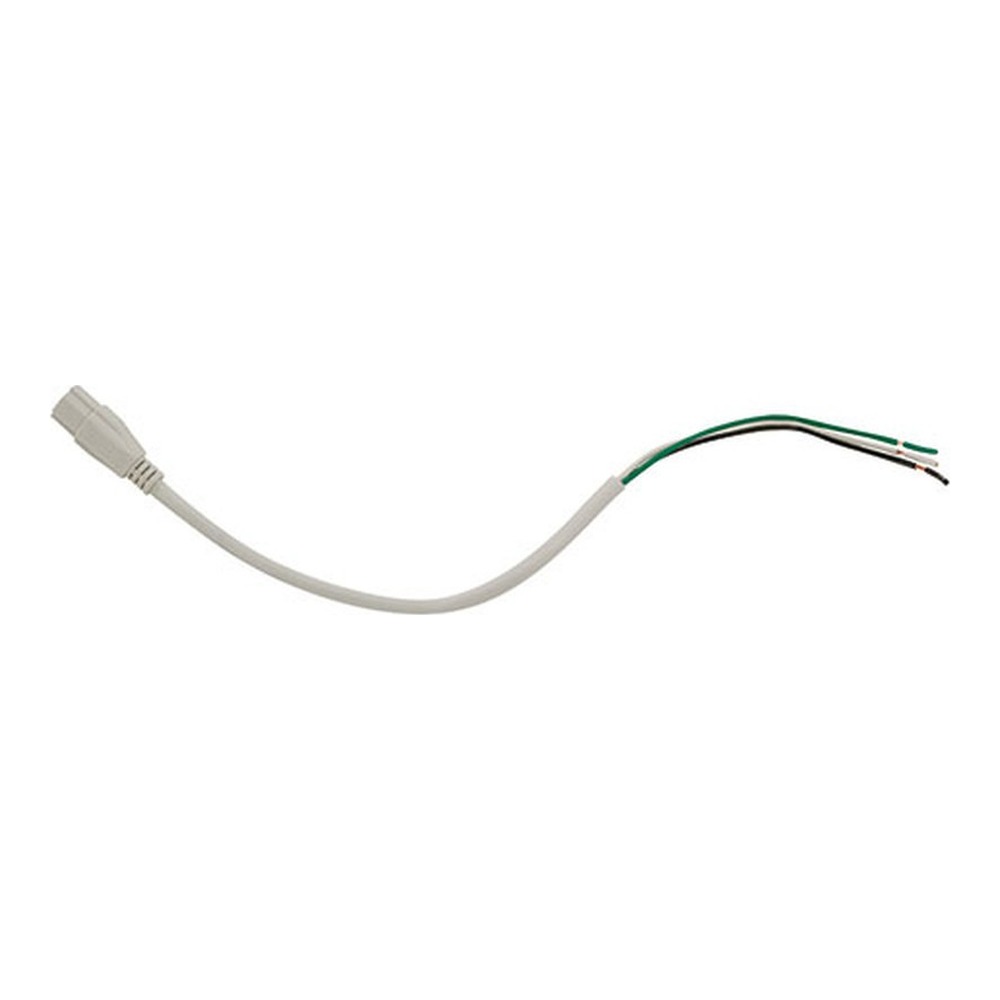

What this connector actually doesEvery hardwired linear lighting run needs a starting point, and that's exactly the role of this
flexible power feed. One end carries pre-spliced bare leads that a licensed electrician joins to the supply inside a junction box; the other end carries a
3-wire connector that mates with 3-wire FloroBar™ light bars. Between the two, 24 inches of flexible cable give you the freedom to route power exactly where the cabinetry allows, instead of forcing the light bar to sit where the box happens to be. It is a small part with an outsized effect on how tidy — and how fast — the installation goes.
Technical specificationsSKU: FBT6124-WH-3
Brand: Liteline
Type: Flexible 3-wire power feed with bare leads
Length: 24" (610 mm)
Finish: White
Connection: Pre-spliced bare leads for hardwiring, 3-wire connector
Compatibility: 3-wire FloroBar™ systems
Applications: Cabinet, cove and display lighting
Installation notesPlan the feed point first: measure from the junction box to the first light bar and confirm the 24" run reaches with a little slack for a service loop. Because the cable is
flexible, it can follow the inside corner of a cabinet, dip behind a toe-kick or curl into a cove channel without kinking the connection. Keep the bare leads dry and accessible inside the box, and always have line-voltage connections made by a qualified electrician in accordance with the Canadian Electrical Code and your local requirements. Once the leads are landed, the 3-wire end simply snaps onto the bar and the rest of the run continues from there — no soldering, no cutting.
Where it earns its keepThink of the kitchen renovation where
under-cabinet lighting has to feed from a single box beside the range hood; the retail display case where the wiring has to disappear behind a mirror-finish panel; the millwork cove in a dental office lobby; the bar back in a small restaurant; the bookshelf lighting in a home office. In all of these, the white cord tucks against light-coloured cabinetry and the flexible jacket handles the tight turns that rigid feeds simply can't. Contractors often keep a few on the truck, because a missing
power feed is the one thing that can stop an otherwise finished lighting job.
Documentation and related partsThe technical PDF for this feed — the FBT6124-WH-3 spec sheet — is available in the Documentation tab, with the description, ordering guide and the 24" / 610 mm dimension confirmed. For the same 24" flexible 3-wire power feed listed under its bare-lead ordering code, see the
Flexible connector FBT6124-BL-WH-3. Keep in mind that this feed is intended for
3-wire FloroBar™ systems; confirm your light bars use the 3-wire connection before ordering, and for any additional configuration your project may need, the manufacturer notes that other options exist through a Liteline representative.
