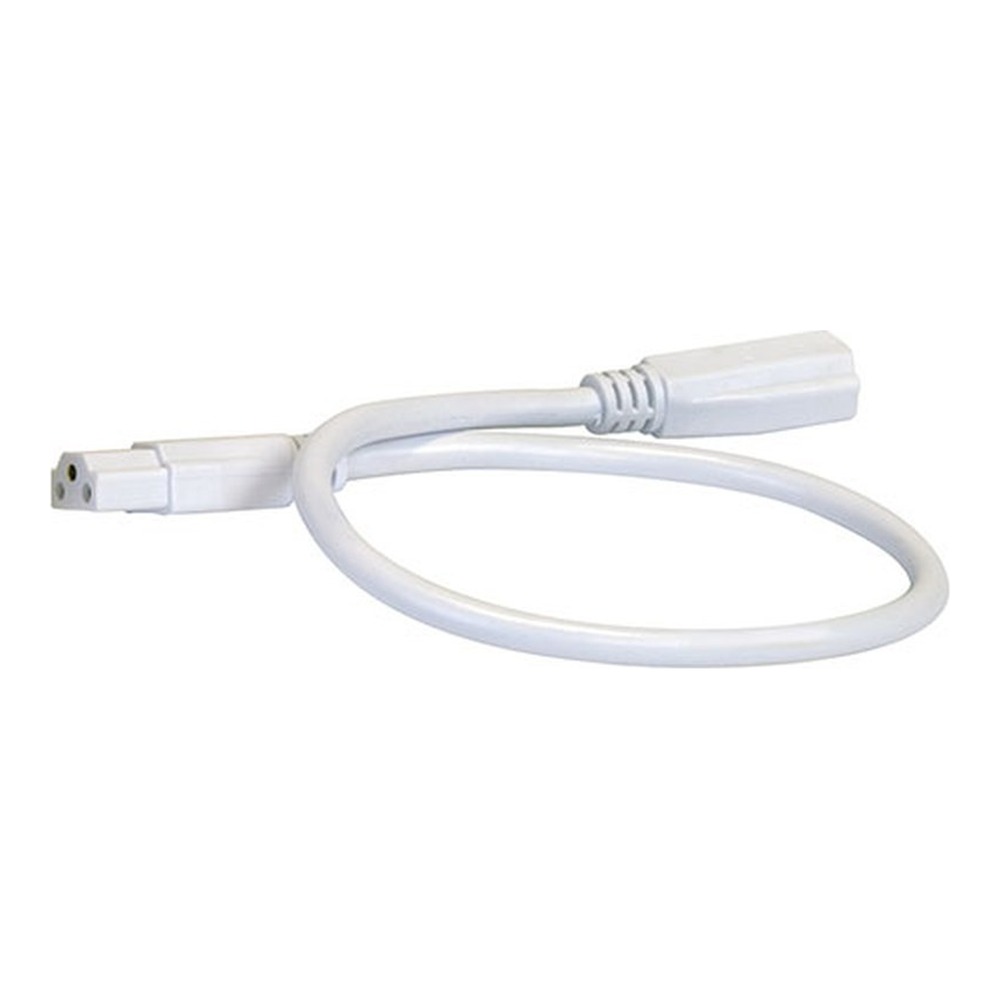

    FLEXIBLE CONNECTOR - FBT6100-WH-3
    FLEXIBLE CONNECTOR - FBT6100-WH-3

    FLEXIBLE CONNECTOR - FBT6100-WH-3

    SKU: FBT6100-WH-3

    Brand: LITELINE

    Linking two undercabinet fixtures around a corner, across a sink or over a backsplash seam shouldn't mean hiding ugly gaps or calling for extra rough-in. The FBT6100-WH-3 flexible connector from LITELINE is the simple answer: a 12" white flexible wire connector made to join Aluminum Fluoro Bar Systems into one clean, continuous run of light. People search for it as a flexible jumper, a fixture-to-fixture link cable, a flexible connector for undercabinet lighting or simply a bar light connector — it's all the same part. Its job is to carry power from one fixture to the next when the two bars aren't touching, aren't aligned, or need to turn a corner inside a cabinet, a display case or a millwork valance.

    Built for T4/T5 3-wire systems, this connector uses push-in easy connectors that snap in fast and hold a tight fit between fixtures, so nothing rattles loose behind a cabinet door. It runs on 120V AC 60Hz power input, and its internal wiring is #18 AWG rated 105ºC, which is exactly what you want tucked against a warm cabinet bottom or inside a soffit. The overall length is 12" (304.8mm), and the finish is white so it blends with the fixtures and the underside of light-coloured cabinetry. It is designed for use with ALFT4 and ALFT5 3-wire fixtures. Note: not for outdoor use — keep this one indoors and dry.

    This is the part that makes kitchen counters, pantries, laundry rooms, home offices, bars, retail shelving, display cabinets and reception millwork look professionally finished instead of patched together. Canadian kitchens are full of corners, cooktop breaks and awkward cabinet widths, and a 12" jumper covers most of those jogs without extra junction boxes. Need a different reach? The same family gives you longer options with the flexible connector FBT6124-WH-3 at 24" and the flexible connector FBT6136-WH-3 at 36". Measure your gap, grab the right length, and finish the run properly — order the FBT6100-WH-3 and keep your install clean.

    7.97$

    What this connector actually does
    The FBT6100-WH-3 is a flexible wire connector from the LITELINE Fluoro Bar System, offered in various lengths and used to join Aluminum Fluoro Bar Systems together. Instead of hard-butting two fixtures end to end, you bridge them with a flexible lead that bends around a cabinet corner, hops over a range hood break, or spans the gap created by a cabinet stile. The result is one electrically continuous run fed from a single 120V supply, with no visible splices and no added junction boxes along the counter. At 12" (304.8mm), this model handles the medium jogs that show up in almost every kitchen layout.

    Construction and connections
    The connector uses push in easy connectors on each end to ensure a tight fit between fixtures — no tools, no stripping, no wire nuts floating behind the toe kick. Internally it is wired with #18 AWG conductors rated 105ºC, a temperature rating that suits the confined, warm spaces under cabinets, inside display cases and behind valances. The jacket and body are finished in white, matching the standard finish of the bar fixtures so the jumper disappears against light cabinetry and painted millwork.

    Technical specifications
    Model: FBT6100-WH-3
    Type: Flexible wire connector, Fluoro Bar System
    Length: 12" (304.8mm)
    Colour: White
    Input/Output: 120V AC 60Hz
    Power input: 120V AC
    Wiring: #18 AWG 105ºC
    Compatibility: ALFT4 and ALFT5 3-wire fixtures, T4/T5 3-wire systems
    Connection: Push in easy connectors
    Use: Undercabinet lighting, indoor only — not for outdoor use

    Compatibility and where it fits
    Use the FBT6100-WH-3 with ALFT4 and ALFT5 3-wire fixtures; it is designed for both T4/T5 3-wire systems, so a mixed run of bar lengths still links together on one circuit. When your gap is bigger than 12", step up within the same family: the flexible connector FBT6124-WH-3 gives you 24" (609mm) and the flexible connector FBT6136-WH-3 gives you 36" (914.4mm). Many installers keep all three lengths on the truck, since a single kitchen can need a short hop at the corner and a long reach across a window or sink.

    Applications and documentation
    Think galley kitchens with an L-return, pantry shelving, laundry and mudroom counters, home office desks, wet bars, jewellery and bakery display cases, retail shelving, and reception desk millwork in clinics and offices. Because this is an indoor undercabinet lighting accessory, keep it out of exterior soffits, unheated garages exposed to weather and any damp location. Before ordering, check the Documentation tab: the FBT6100-WH-3 Spec Sheet (PDF) lists the full dimensions and ordering guide for the connector family, the electrical data and the compatible fixture types, so you can confirm lengths and quantities before the cabinets go in.
