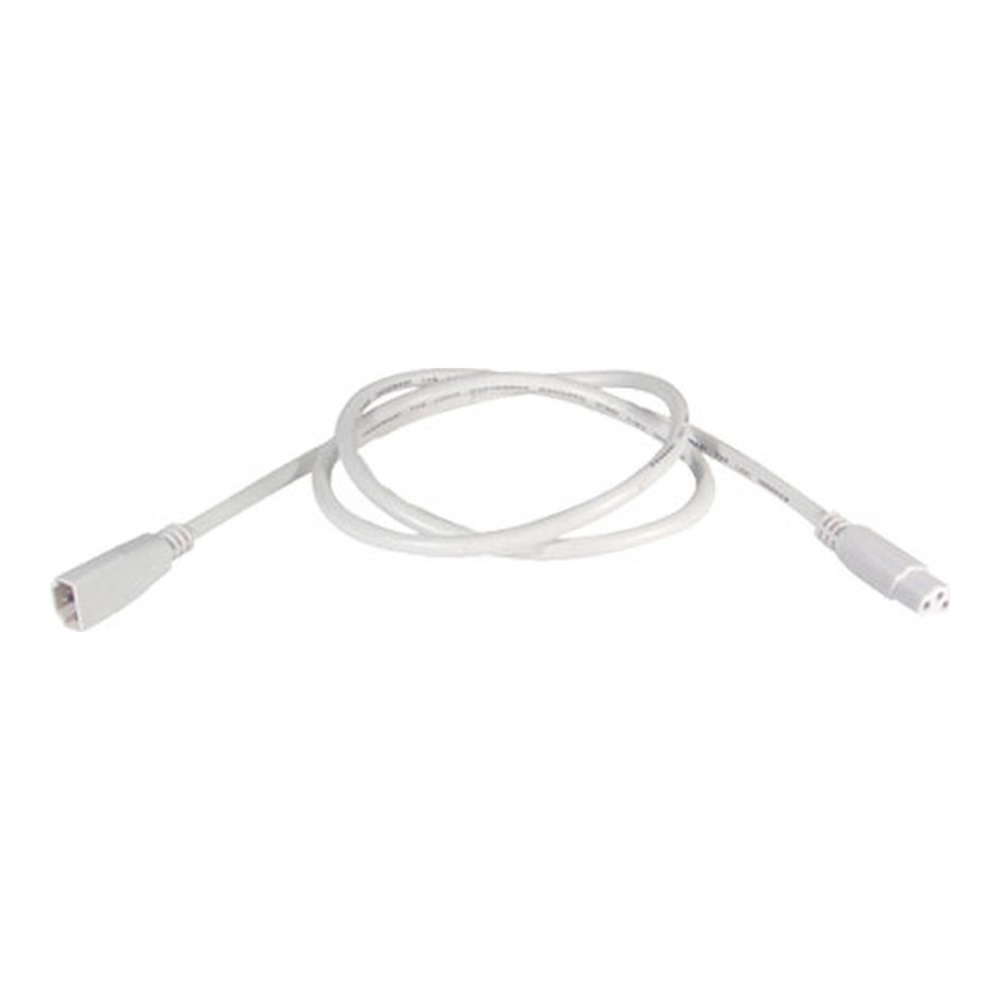

    FLEXIBLE CONNECTOR - FBT6136-WH-3
    FLEXIBLE CONNECTOR - FBT6136-WH-3

    FLEXIBLE CONNECTOR - FBT6136-WH-3

    SKU: FBT6136-WH-3

    Brand: LITELINE

    Need to jump a longer gap between two undercabinet light bars without running new wire? The FBT6136-WH-3 is a 36" flexible wire connector from Liteline, built to link Aluminum Fluoro Bar System fixtures together into one clean, continuous run. People look for it as a flexible connector, a fluoro bar jumper cable, an undercabinet light connector or simply a link cord — whatever you call it, its job is the same: carry power from one bar to the next, around corners, over backsplashes, past cabinet dividers and through cabinet gables, so the whole counter lights up from a single feed.

    This connector is designed for use with ALFT4 and ALFT5 3-wire fixtures, and works with both T4/T5 3-Wire systems. It measures 36" (914.4mm) and comes in a White finish that disappears against cabinet interiors and white bar housings. Wiring is #18 AWG rated 105ºC, and the input/output is 120V AC 60Hz, so it ties straight into standard Canadian household and light commercial power. The push-in easy connectors snap into place to ensure a tight fit between fixtures — no splicing, no wire nuts, no guesswork — and the whole cord stays flexible enough to route around obstacles instead of fighting them. Please note this connector is not for outdoor use; keep it to dry indoor locations.

    It shines in kitchens, butler's pantries, bars and laundry rooms, and just as much in commercial undercabinet lighting — reception desks, retail display shelving, office kitchenettes, salon stations and workshop benches. For residential and commercial projects alike, the 36" length is the one you reach for when two fixtures sit far apart or when you need to cross a sink base, a drawer bank or an appliance cut-out. Shorter runs? Pair it with the 12 in. flexible connector FBT6100-WH-3 or the 24 in. flexible connector FBT6124-WH-3 and mix lengths across the same run. Add it to your cart and finish the job right the first time.

    8.97$

    Built to join fluoro bar fixtures
    The FBT6136-WH-3 belongs to Liteline's Fluoro Bar System family of flexible wire connectors, offered in various lengths and used to join Aluminum Fluoro Bar Systems together. This model is the 36" (914.4mm) version in White. Rather than hard-wiring each fixture back to a junction box, you daisy-chain the bars: one feed in, then a connector from fixture to fixture. The result is fewer holes drilled through cabinet gables, fewer connections to troubleshoot later, and an undercabinet lighting run that reads as one continuous line of light instead of a patchwork.

    Technical specifications
    Model: FBT6136-WH-3
    Description: Flexible wire connector, Fluoro Bar System
    Length: 36" (914.4mm)
    Colour: White
    Input/Output: 120V AC 60Hz
    Power input: For 120V AC Power Input
    Electrical: #18 AWG 105ºC
    Compatibility: For use with ALFT4 and ALFT5 3-wire fixtures; designed for use with both T4/T5 3-Wire systems
    Note: Not for outdoor use

    Electrical and installation details
    The conductor is #18 AWG rated 105ºC, sized for the low-current linking duty of a 3-wire fluoro bar system and comfortable with the heat found inside a closed cabinet valance. Input and output are 120V AC 60Hz — line voltage, no driver or transformer required for the connector itself. The ends use push in easy connectors that ensure a tight fit between fixtures, so installation is a matter of aligning the plug and pressing it home until it seats. Always cut power at the breaker before connecting or disconnecting fixtures, respect the total load allowed on the circuit and on the fixture run, and keep the cord clear of hinges, drawer glides and sharp cabinet edges. Small cable clips or staples (used gently, never pinching the jacket) keep the slack tucked up out of sight.

    Choosing the right length
    Measure the actual path the cord will travel — not the straight-line gap — including the drop behind a cabinet gable or the detour around a range hood, outlet box or plumbing chase. When that path runs long, the 36" FBT6136-WH-3 keeps you from stacking connectors end to end. On tighter runs, the 12 in. flexible connector FBT6100-WH-3 and the 24 in. flexible connector FBT6124-WH-3 cover the shorter gaps, and there is nothing wrong with mixing lengths along a single counter. Contractors often keep all three on the truck so a surprise cabinet layout never stalls a service call.

    Where it gets used, and the paperwork
    Kitchen counters and islands, pantries, home bars, laundry and craft rooms, garage workbenches — anywhere a flexible connector has to bridge two light bars discreetly. On the commercial side, think retail shelving and display cases, office kitchenettes, reception millwork, clinic casework and salon stations, all interior and dry, since this connector is not rated for outdoor use. The technical PDF (FBT6136-WH-3 Spec Sheet) is posted in the Documentation tab with the full dimensions and ordering guide for the family, so you can confirm model, length and colour before you order for a multi-unit job.
