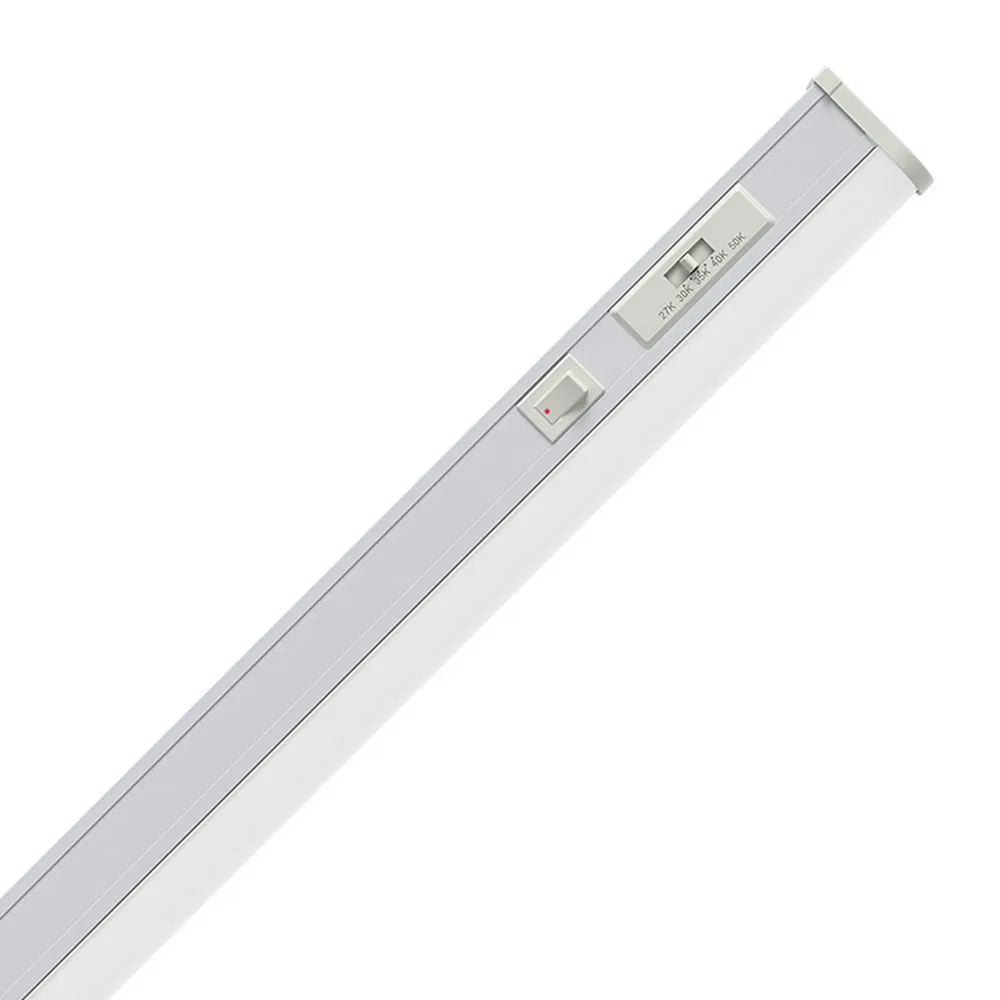

LEDBAR CCT - LCFIX-LEDBAR-34IN-CCT

Name: LEDBAR CCT - LCFIX-LEDBAR-34IN-CCT
Brand: LEDCO
SKU: LCFIX-LEDBAR-34IN-CCT
Price: 66.97 CAD
Availability: InStock

SKU: LCFIX-LEDBAR-34IN-CCT

Brand: LEDCO

Turn that dark stretch of countertop into the best-lit spot in the kitchen. The LEDBAR CCT (SKU LCFIX-LEDBAR-34IN-CCT) is a 34 7/16" LED under cabinet light — also called an LED fluorobar, a linear LED light bar or simply a réglette — built to slip under upper cabinets, inside a cove or into millwork and disappear while doing all the work. It is the length people reach for when a single bar has to cover a long run of counter, a bookcase, a display case or a closet shelf without breaking the line of light. On-body controls mean no app, no remote, no guessing: an ON/OFF switch and a 5-position colour switch sit right on the fixture.

This 14W bar delivers real usable light: 850 lumens at 2700 K, 1175 lumens at 3000 K, 1120 lumens at 3500 K, and 1175 lumens at both 4000 K and 5000 K, with efficiency reaching up to 96 lm/W across the series. The 2700-5000K CCT select switch lets you go warm for a cozy kitchen or crisp for a workshop, and 90+ CRI keeps food, wood grain and paint colours looking true. It runs on 120V, 50/60Hz with a built-in silent, non-flicker electronic LED driver, and it is 100~0% dimmable with standard TRIAC and ELV dimmers. The body is durable extruded aluminum with a frosted smooth lens spreading a 125° beam, measuring 1-5/16" (33 mm) wide by 1" (25 mm) high. It is cULus certified, rated for dry locations, carries a 3 year warranty, a 36,000 hour rated life and 70% lumen maintenance at 60,000 hours.

It shines under kitchen cabinets, over a bar or pantry, in closets (compliant with NFPA 70, NEC section 410.16 (A)(1), keeping 6" minimum clearance to combustible materials), in retail display cases, reception millwork and office casework. Canadian winters and chilly garages are no problem: minimum start temperature is -18°C, with an operating range of -18°C~40°C. Mounting hardware is included for horizontal or vertical surfaces, and with a joiner these no-shadow fixtures link up to 2500 mA / 300 W. Pair it with other lengths like the LEDBAR14-CCT or LEDBAR23-CCT, and bridge gaps with the 12" flexible connector FBT6100-WH-3. A power feed is required — add yours and light up the counter tonight.

Built to last under the cabinet
The LEDBAR CCT is built around a durable extruded aluminum frame with a frosted smooth lens, a combination that does two jobs at once: the aluminum pulls heat away from the integrated LED strip, and the frosted lens hides the diodes so you see a smooth line of light instead of dots on your backsplash. The profile stays slim at 1-5/16" (33 mm) wide and 1" (25 mm) high, with an overall length of 34 7/16" (874 mm), so it tucks behind the front rail of most upper cabinets. It is approved for dry location applications only, and it complies with NFPA 70, NEC section 410.16 (A)(1) for use in closets — just keep a minimum of 6" clearance to combustible materials at all times.

Light quality and colour selection
This is a 14W fixture producing 850 lumens at 2700 K, 1175 lumens at 3000 K, 1120 lumens at 3500 K, 1175 lumens at 4000 K and 1175 lumens at 5000 K, with the series reaching up to 96 lm/W. The 5-position CCT select switch on the body means five selectable colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — chosen after installation, so you can match the bar to warm white pot lights in a kitchen or push to a cooler tone in a laundry room or workbench. With 90+ CRI, colours stay honest: fresh produce, stained oak, quartz veining and fabric samples all read correctly. The lens spreads a 125° beam angle for even coverage from counter edge to backsplash, and lumen maintenance is 70% at 60,000 hours.

Electrical, dimming and installation
Each fixture includes a built-in silent, non-flicker electronic LED driver running on 120V, 50/60Hz, with a power factor greater than 0.95 and THD under 15 — clean, quiet operation with no buzz behind the cabinet door. The bar is 100~0% dimmable using industry standard TRIAC and ELV dimmers, and an ON/OFF switch on the body lets each fixture be controlled individually. Mounting hardware is provided for standard horizontal surfaces or vertical wall surfaces. The connection type is 3-wire, and with a joiner these no-shadow linking fixtures can be linked up to 2500 mA / 300 W on one run. Minimum start temperature is -18°C and the operating range is -18°C~40°C (0°F~104°F), which matters in an unheated Canadian garage, cottage or basement shop.

Technical specifications
SKU: LCFIX-LEDBAR-34IN-CCT
Length: 34 7/16" (874 mm)
Profile: 1-5/16" (33 mm) x 1" (25 mm)
Wattage: 14
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 90+
Beam angle: 125°
Voltage: 120V, 50/60Hz
Dimming: Yes — TRIAC / ELV, 100~0%
Connection type: 3-Wire
Power factor: >0.95
THD: <15
Rated life: 36,000 hrs
Lumen maintenance: 70% @ 60,000 hrs
Approved location: Dry
Certification: cULus
Warranty: 3 Years

Applications, compatibility and documents
Think kitchen counters and island millwork, a pantry or walk-in closet, cove lighting above cabinetry, a home office credenza, retail shelving and display cases, salon stations, bar backs and reception desks. Because the series shares the same 3-wire system, you can mix lengths on one continuous run: the shorter LEDBAR14-CCT and LEDBAR23-CCT fill short cabinet bays, while the 46 3/16" LEDBAR CCT and 58" LEDBAR CCT cover long walls. To jump over a sink, a corner or a stile, use the flexible 3-wire connectors: FBT6100-WH-3 (12"), FBT6124-WH-3 (24") or FBT6136-WH-3 (36"). Accessories are sold separately and a power feed is required — power cords, 90° connector cords, hardwire boxes, magnetic clips and 90° mounting clips are all offered for the series. For full details, the technical PDF spec sheet (LCFIX-LEDBAR-34IN-CCT Spec Sheet) is available in the Documentation tab of this page.
