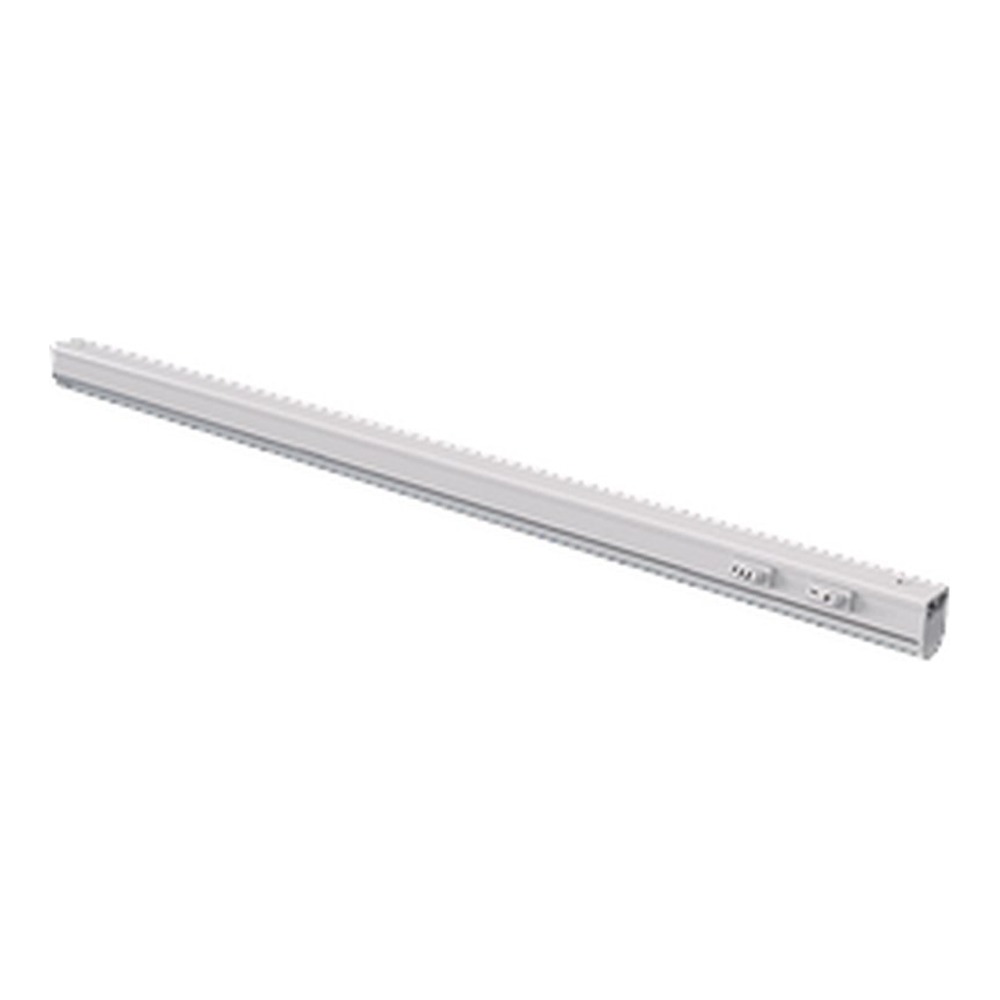

LED LINEAR CABINET LIGHT 3CCT 3FT

Name: LED LINEAR CABINET LIGHT 3CCT 3FT
Brand: LEDCO
SKU: LCFIX-CAB-120V-3CCT-3FT
Price: 57.97 CAD
Availability: InStock

SKU: LCFIX-CAB-120V-3CCT-3FT

Brand: LEDCO

Give your countertops the light they deserve. This 3 ft LED linear cabinet light — also called an under-cabinet light bar, under-shelf LED strip fixture or linear LED lighting for kitchens — is the simple fix for dark counters, shadowy prep zones and display shelves that never look quite right. It mounts right under the cabinet box or along a shelf edge, spreading a continuous band of light across the full working surface instead of dropping isolated pools of brightness. Homeowners use it over kitchen counters, in pantries, laundry rooms, garages and closets; contractors and small businesses reach for it under retail shelving, display cases and back-bar counters.

The white post-painted steel housing measures 34.37 inches long, 0.91 inch wide and 1.18 inch high, so it tucks discreetly under a cabinet bottom. Behind the smooth extruded frosted lens, a 120-degree beam angle softens the diodes so you see the counter, not the source. Field-selectable wattage lets you run this fixture at 12W or 7.5W, delivering 1260 or 788 initial delivered lumens, and the selectable 3CCT switch on the side of the luminaire gives you three colour temperatures in one fixture (30-40-50K) with a CRI of ≥80 so food, fabrics and merchandise keep their true colours. It runs on 120V, 50/60Hz, carries an IP 20 rating, is damp location rated, operates from -25˚C to +45˚C, and is backed by a 50,000-hour rating and a 5-year warranty. SKU: LCFIX-CAB-120V-3CCT-3FT.

In a Québec kitchen renovation, a basement workshop or a boutique display wall, this under-cabinet LED fixture earns its keep every day. Fixtures can be joined into linkable runs using the supplied 11” jumper cable and end cap, and each unit ships with L and U mounting clips, drywall screws, anchors and a 61” white power cord with a moulded 2-prong plug — surface or side mount, your call. Need to follow cabinet runs of different widths? Pair it with the LED linear cabinet light 3CCT 1FT or the LED linear cabinet light 3CCT 4FT. Light up your counters the right way — add it to your project today.

Built for task lighting
This 3 ft under-cabinet LED light bar is engineered to put clean, usable light exactly where you work. The housing is white post-painted steel, offered in 1’, 2’, 3’ and 4’ lengths, and this model measures 34.37 inches long by 0.91 inch wide by 1.18 inch high — slim enough to hide behind a cabinet face frame. The smooth extruded frosted lens spreads a 120-degree beam so the light lands on the counter rather than glaring back at you, and the steel body supports efficient thermal management, which helps protect the diodes through years of daily switching in busy kitchens and workrooms.

Light quality and selectable settings
Two selections happen right on the side of the luminaire. Selectable wattage lets you choose 12W or 7.5W on this 3 ft model, for 1260 or 788 initial delivered lumens — full output over a prep counter, lower output under a display shelf or in a hallway pantry. Selectable 3CCT means three colour temperatures in the same fixture (30-40-50K), so one product covers a cozy kitchen, a bright laundry area and a crisp commercial display without changing hardware on the job. With a CRI of ≥80, produce, paint samples, fabrics and packaged goods keep their true appearance.

Technical specifications
SKU: LCFIX-CAB-120V-3CCT-3FT
Model: DL-SCL/3F/MW/MK/120V
Input wattage: 12-7.5W (selectable)
Initial delivered lumens: 1260-788
CCT: 30-40-50K selectable
CRI: ≥80
Voltage: 120V, 50/60Hz
Hour rating: 50,000
Housing: white post-painted steel
Optics: smooth extruded frosted lens, 120-degree beam angle
Dimensions (L × W × H): 34.37” × 0.91” × 1.18”
Ingress protection: IP 20
Location: damp location rated
Operating temperature: -25˚C ~ +45˚C
Warranty: 5 years

Installation, wiring and linking
Every fixture arrives with its own hardware: two “L” mounting clips, two “U” mounting clips, two drywall screws, two anchors, one end cap, one 11.42” linking cord and one 61” white power cord with a moulded 2-prong plug. That means surface or side mount installation without hunting for parts. Luminaires can be joined together for linkable runs using the jumper cable, with the end cap closing the last fixture — just keep the total power of all linked fixtures at or below 180W. A separate hardwire box with on/off switching (DL-SCL/WB) is available for clean wire management when you prefer a hardwired job over a plug-in cord. Installer tip: mount the fixture toward the front edge of the cabinet bottom rather than against the back wall — this pushes light onto the working area and keeps reflections off the backsplash.

Applications, matching lengths and documentation
This fixture suits retail, residential and mall applications: kitchen counters, islands and pantries, laundry rooms, home offices, garage benches, jewellery and bakery display cases, reception millwork and back-bar shelving. To follow cabinet runs of different widths on the same project, combine it with the LED under-shelf and cabinet light 1 unit 12.32”, the LED under-shelf cabinet light 2FS 21.38”, the LED under-shelf and cabinet light 2FL 22.56” or the LED under-shelf cabinet light 4F 46.18”. The full technical PDF spec sheet is available in the Documentation tab for dimensional drawings, the polar candela curve and the complete ordering information.
