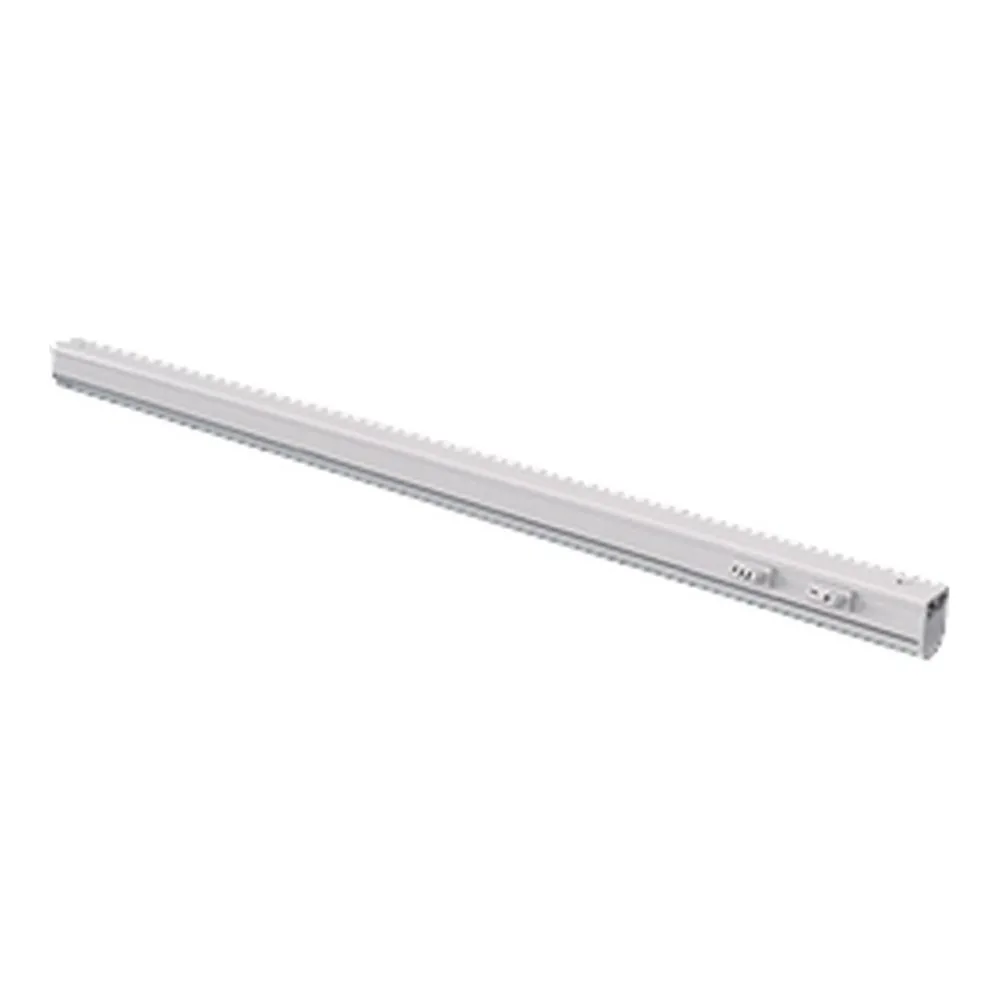

LED LINEAR CABINET LIGHT 3CCT 4FT

Name: LED LINEAR CABINET LIGHT 3CCT 4FT
Brand: LEDCO
SKU: LCFIX-CAB-120V-3CCT-4FT
Price: 67.97 CAD
Availability: InStock

SKU: LCFIX-CAB-120V-3CCT-4FT

Brand: LEDCO

Turn a dark counter into the best-lit work surface in the house. This 4-foot LED linear cabinet light — also called an under-cabinet light bar, an under-shelf LED strip fixture or simply a LED linear fixture — slips under upper cabinets, display shelves and workbenches to throw clean, even light exactly where you chop, read, price-tag or assemble. It plugs in and goes to work: kitchen counters, pantries, bookcases, retail showcases, reception millwork, garage benches and basement bars. SKU LCFIX-CAB-120V-3CCT-4FT.

The frosted extruded lens smooths the diode pattern into one continuous line of light with a wide 120 degree beam angle, while a CRI of ≥80 keeps produce, fabrics and wood finishes looking true. Field-selectable dual wattage lets you set 16W or 9.5W for 1680 or 998 delivered lumens, and the 3CCT selector on the side of the fixture gives you three white appearances (30-40-50K) chosen right at installation. It runs on 120V, 50/60Hz, measures 46.18 inches long by 0.91 inch wide by 1.18 inch high, and hides in a slim white post-painted steel housing rated IP20 and damp location, with a 50,000 hour rating, an operating range of -25˚C to +45˚C and a 5 year warranty.

In a Québec kitchen it kills the shadow your upper cabinets cast on the counter; in a boutique it makes a shelf of merchandise pop; in a workshop it puts real light on the vise. Each fixture ships with L and U mounting clips, drywall screws, anchors, an end cap, an 11.42 inch linking cord and a 61 inch white power cord with a moulded 2-prong plug, so you can surface mount or side mount and link fixtures into a continuous run (keep total linked load at or under 180W). Match shorter cabinet runs with the LED linear cabinet light 3CCT 1FT or the LED linear cabinet light 3CCT 3FT, and add the 3 ft under-shelf cabinet light where the millwork is narrower. Light up that counter properly — order yours today.

Built for millwork, built to last
The housing is white post-painted steel in a low-profile 0.91 inch wide by 1.18 inch high section, so this under-cabinet LED bar tucks behind the face frame and stays out of sight. Steel resists the knocks of a busy kitchen or stockroom, and the smooth extruded frosted lens spreads the output evenly instead of printing dots on your backsplash. At 46.18 inches, this 4-foot model covers a full cabinet run in one clean line of light rather than two short, mismatched fixtures.

Light quality and selectable settings
Two controls sit on the side of the luminaire. The dual wattage selector switches between 16W and 9.5W, giving you 1680 or 998 initial delivered lumens depending on whether you want task-level punch or a softer accent glow. The 3CCT selector offers three selectable colour temperatures (30-40-50K), so one part number suits a cozy home kitchen, a neutral laundry or office, and a crisp commercial counter. CRI of ≥80 keeps skin tones, food and finishes honest, and the 120 degree beam angle washes the whole depth of the counter.

Technical specifications
SKU: LCFIX-CAB-120V-3CCT-4FT
Model: DL-SCL/4F/MW/MK/120V
Input wattage: 16-9.5W selectable
Initial delivered lumens: 1680-998
CCT: 30-40-50K selectable (3CCT)
CRI: ≥80
Voltage: 120V, 50/60Hz
Hour rating: 50,000
Beam angle: 120 degrees
Dimensions: 46.18" L × 0.91" W × 1.18" H
Ingress protection: IP20
Damp location: Yes
Operating temperature: -25˚C ~ +45˚C
Warranty: 5 years

Wiring, mounting and linking
Every fixture arrives with the hardware you need: two "L" mounting clips, two "U" mounting clips, two drywall screws, two anchors, one end cap, one 11.42 inch linking cord and one 61 inch white power cord with a moulded 2-prong plug. Choose surface mount or side mount depending on whether you are fastening to the underside of the cabinet or to the inside of the rail. Fixtures can be joined into linkable runs with the jumper cable and end cap; total power of all linked fixtures should not exceed 180W. For a tidier job with no visible cord, a separate hardwire box with on/off switching (DL-SCL/WB) handles wire management. Mount toward the front edge of the cabinet to push light onto the work surface instead of the backsplash, and always cut power at the panel before you start.

Applications, family and documentation
Retail displays, malls and residential millwork are the sweet spot: kitchen counters, pantry shelves, bar backs, display cases, reception desks, garage and basement workbenches. Because the same family comes in 1', 2' and 3' lengths, you can mix sizes along an uneven cabinet layout — see the 1 ft version, the 3 ft under-shelf model, the 2FS 21.38 inch model and the 4F 46.18 inch model. The full technical PDF spec sheet, including the polar candela distribution and the dimensional drawings of the fixture and hardwire box, is in the Documentation tab.
