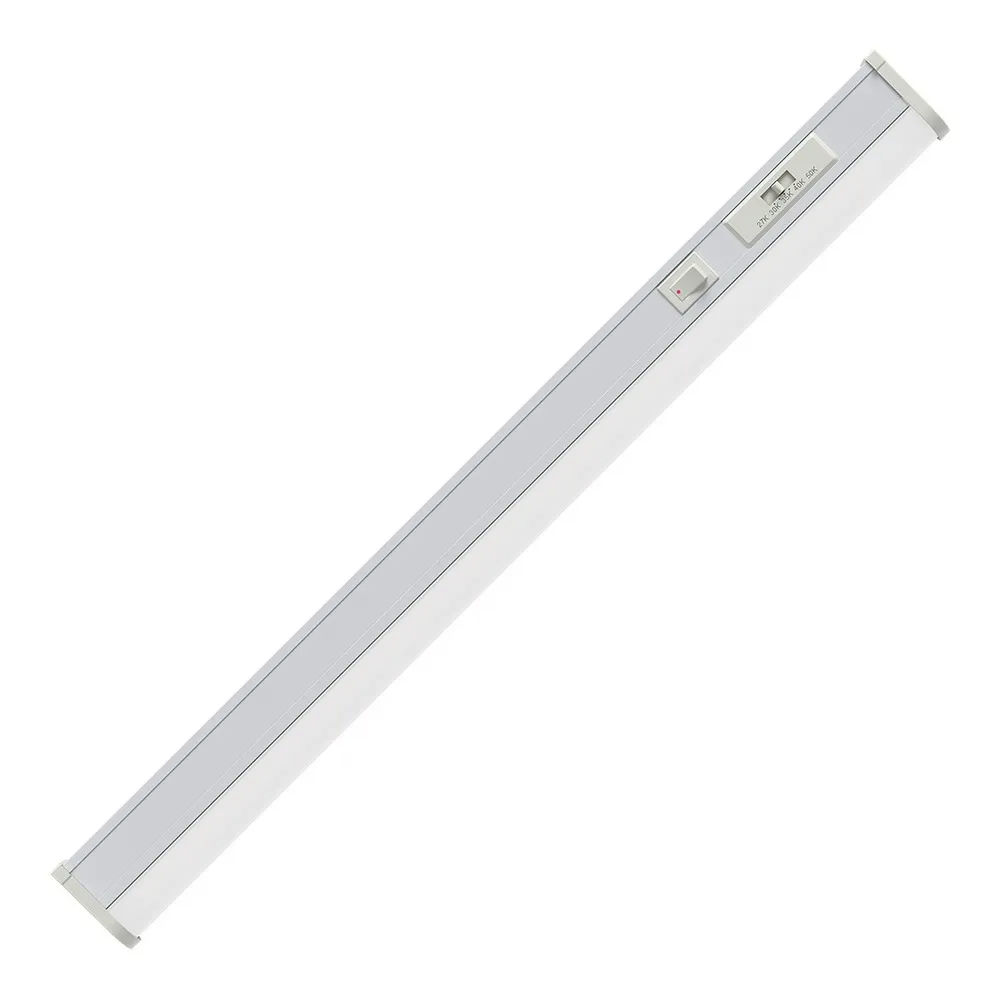

LEDBAR CCT - LEDBAR14-CCT

Name: LEDBAR CCT - LEDBAR14-CCT
Brand: LITELINE
SKU: LEDBAR14-CCT
Price: 64.97 CAD
Availability: InStock

SKU: LEDBAR14-CCT

Brand: LITELINE

Finally, a light bar that makes your countertops, shelves and coves look as good as the rest of the room. The LITELINE LEDBAR CCT (SKU LEDBAR14-CCT) is a slim linear LED fixture — what most people call an under cabinet light, a LED fluorobar or a light bar — built for cove, under cabinet and millwork lighting. If you have been shopping for kitchen under cabinet lighting, display cabinet lighting or a cleaner alternative to scattered LED puck lights, this one gives you a continuous, even line of light instead of hot spots and dark gaps, with an integrated LED strip hidden behind a frosted lens.

This is the 5W version of the family, delivering 400 lumens at 3000 K, 4000 K and 5000 K, 350 lumens at 3500 K and 250 lumens at 2700 K — the family reaches up to 96 lm/W. A 5-position CCT select switch right on the body lets you pick 2700 K, 3000 K, 3500 K, 4000 K or 5000 K, so warm kitchen glow or crisp task white is a flick away, and an on-body ON/OFF switch gives you local control. Light quality is excellent at 90+ CRI, with a 125° beam spread that spreads light across the whole work surface. It runs on 120V, 50/60 Hz through a built-in silent, non-flicker driver, and dims from 100~0% with standard TRIAC and ELV dimmers. The extruded aluminum frame is durable, rated for dry locations, cULus certified, with 70% lumen maintenance at 60,000 hours, a 36,000-hour rated life and a 3-year warranty.

Put it under upper kitchen cabinets, above a bathroom vanity, inside a retail display case, along a bookshelf, in a cove or in a closet (it is compliant with NFPA 70, NEC section 410.16 (A)(1), keeping 6" minimum clearance to combustible materials). Perfect for Canadian kitchen renos, basement bars, garage workbenches and small shops that need reliable task light, and it starts down to -18°C. Fixtures link with a joiner for a no-shadow run up to 2500 mA / 300 W — extend around corners or between cabinets with the Flexible connector FBT6100-WH-3, Flexible connector FBT6124-WH-3 or Flexible connector FBT6136-WH-3, and pair it with the longer LEDBAR CCT LEDBAR23-CCT for wider cabinet spans. Add it to your project and light up every counter properly.

Built to last, built to hide
The LEDBAR CCT is made around a durable extruded aluminum frame with a frosted smooth lens, so the housing stays cool-running and rigid while the lens softens the LEDs into one clean line. Its low profile — 1-5/16" (33 mm) wide by 1" (25 mm) high — tucks neatly behind a cabinet valance, inside a cove or under a shelf where you see the light and not the fixture. The fixture is suitable for dry location applications only, and hardware is provided to mount it to standard horizontal surfaces or to a vertical wall surface, which makes it just as easy to install under an upper cabinet as on the back wall of a millwork niche.

Light quality and colour control
An integrated LED strip maintains uniform intensity and 70% lumen maintenance at 60,000 hours, with a rated life of 36,000 hours average at 90 CRI. That 90+ CRI matters: wood grain, stone counters, food, fabrics and merchandise all read true instead of washed out. The 125° beam spread from the lens covers the depth of a standard counter without a dark strip at the backsplash. The 5-position CCT select switch gives you five selectable colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so you can match existing pot lights or change the mood of the room later without changing the fixture.

Technical specifications
SKU: LEDBAR14-CCT
Length: 343 mm
Width: 1-5/16" (33 mm)
Height: 1" (25 mm)
Wattage: 5W
Lumens: 250 (2700 K), 400 (3000 K), 350 (3500 K), 400 (4000 K), 400 (5000 K)
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K selectable
CRI: 90+
Beam angle: 125°
Voltage: 120V, 50/60 Hz
Dimming: 100~0%, TRIAC / ELV
Power factor: >0.95
THD: <15
Connection type: 3-Wire
Min. start temperature: -18°C
Operating temperature: -18°C~40°C (0°F~104°F)
Approved location: Dry
Certification: cULus
Warranty: 3 Years

Wiring, linking and accessories
The built-in silent non-flicker electronic LED driver runs directly on 120V, so there is no remote transformer to hide. A power feed is required: choose a flexible 3-wire power cord, a cord with a 90° connector or a hardwire box from the FluoroBar accessory range, several of which include an on/off switch or a motion sensor option. Complete with a joiner, these no-shadow linking fixtures can be linked up to 2500 mA / 300 W on one feed, and flexible 3-wire connectors let you jump gaps, turn corners or reach the next cabinet: the 12" flexible connector FBT6100-WH-3, the 24" flexible connector FBT6124-WH-3 and the 36" flexible connector FBT6136-WH-3. Magnetic mounting clips and 90° mounting clips are also offered for the LEDBAR series. Accessories are sold separately.

Where to use it and what's in the documents
Contractors use this bar under kitchen uppers, over bathroom vanities and in bedroom closets (compliant with NFPA 70, NEC section 410.16 (A)(1), with a minimum 6" clearance to combustible materials at all times). Retailers and small businesses use it inside glass display cases, under reception counters, along shelving and in coves for indirect ceiling light. Because it starts down to -18°C, it also behaves in an unheated garage or workshop that warms up slowly. For a longer continuous run on a wide cabinet bank, combine it with the LEDBAR CCT LEDBAR23-CCT. The full technical PDF spec sheet is available in the Documentation tab, with the dimension drawing, the lumen table per colour temperature and the complete accessory list — worth a quick look before you order your power feeds.
