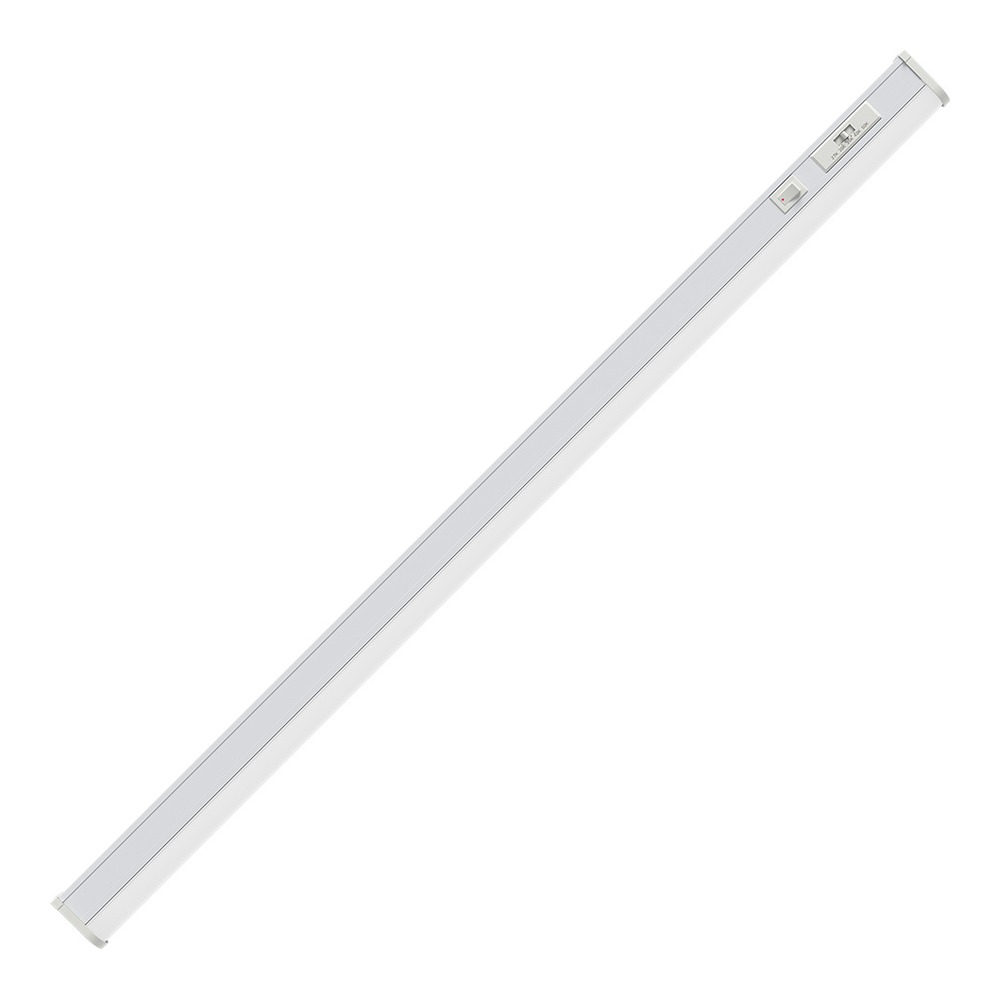

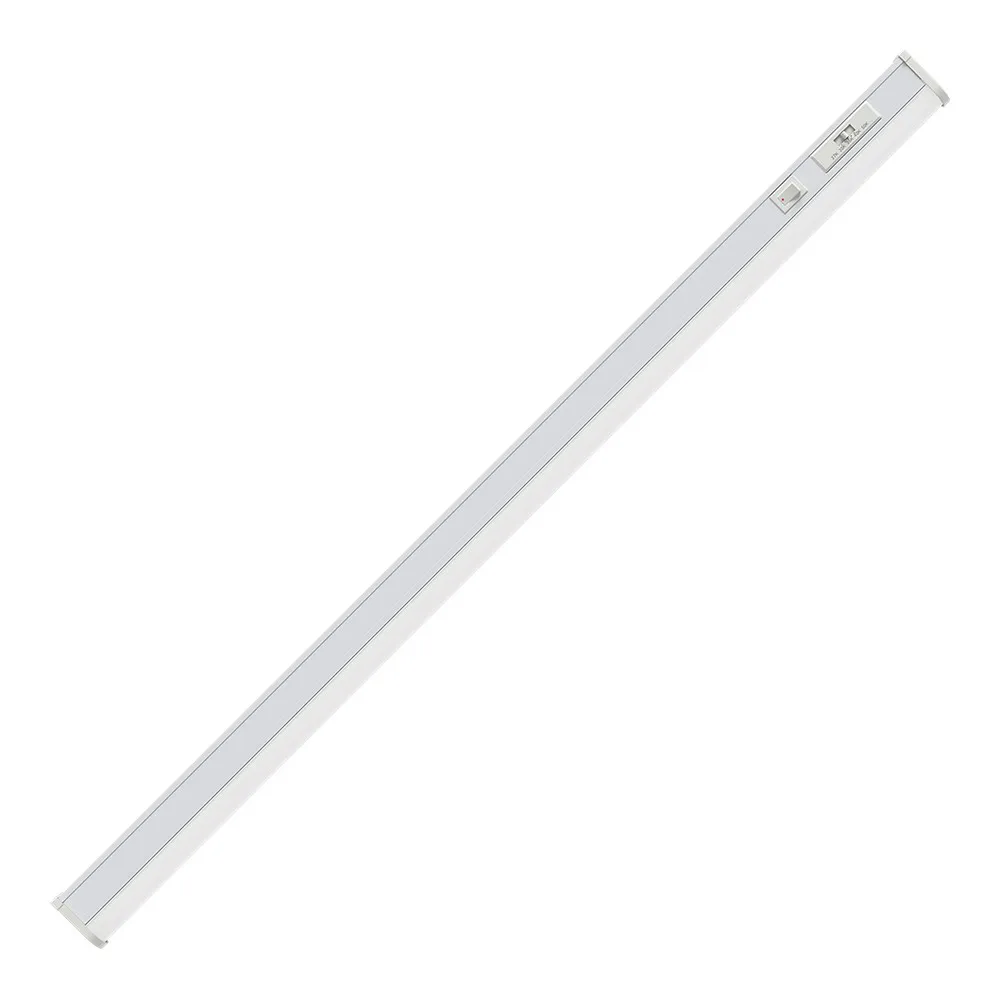

LEDBAR CCT - LEDBAR23-CCT

Name: LEDBAR CCT - LEDBAR23-CCT
Brand: LITELINE
SKU: LEDBAR23-CCT
Price: 68.97 CAD
Availability: InStock

SKU: LEDBAR23-CCT

Brand: LITELINE

Say goodbye to dark countertops and shadowy shelves. The LEDBAR23-CCT from LITELINE is a slim linear under cabinet light — also known as an LED FluoroBar, a light bar, a linear strip fixture or a kitchen under cabinet lighting bar — built to slide discreetly under a cabinet, inside a cove or into millwork and flood the surface below with clean, even light. If you have been shopping for led puck lights, bathroom cabinet lighting or display cabinet lighting and want continuous illumination instead of scalloped hot spots, this is the fixture that does it, in one tidy piece with no visible diodes and no extra transformer to hide.

This 22-5/8" (574 mm) model draws 9W and delivers 775 lumens at 3000 K, 4000 K and 5000 K, 550 lumens at 2700 K and 705 lumens at 3500 K, reaching up to 96 lumens per watt across the LEDBAR-CCT family. A 5-position CCT select switch right on the body lets you choose 2700 K, 3000 K, 3500 K, 4000 K or 5000 K, while an on-body ON/OFF switch gives each bar individual control. At 90+ CRI, food, wood grain and makeup look true. The extruded aluminum housing measures 1-5/16" (33 mm) wide by 1" (25 mm) high, carries a frosted smooth lens with a 125° beam spread, runs on 120V 50/60 Hz with a built-in silent non-flicker driver, and dims 100~0% with standard TRIAC and ELV dimmers. cULus certified, rated for dry locations, power factor >0.95, THD <15, min. start temperature -18°C, 36,000 hours rated life with 70% lumen maintenance at 60,000 hours, and a 3-year warranty.

Put it under kitchen uppers, over a bar counter, inside a pantry, a closet (it is compliant with NFPA 70, NEC section 410.16 (A)(1)), a bathroom vanity cabinet, a retail display case, a reception desk or a workshop bench — anywhere Canadian homeowners, contractors and small businesses need real task light. Bars link with no shadow up to 2500 mA / 300 W, so you can chain this one with the shorter LEDBAR CCT - LEDBAR14-CCT and bridge cabinet gaps with the flexible connector FBT6100-WH-3, FBT6124-WH-3 or FBT6136-WH-3. Order your LEDBAR23-CCT and light the work surface properly.

Built to disappear under the cabinet
The LEDBAR23-CCT is wrapped in a durable extruded aluminum frame with a frosted smooth lens, a low-profile section of 1-5/16" (33 mm) wide by 1" (25 mm) high and a length of 22-5/8" (574 mm). That slim body tucks behind a cabinet valance or inside a cove so you see the light, not the fixture. Mounting hardware is included for horizontal surfaces as well as vertical wall surfaces, so the same LED FluoroBar can go under an upper cabinet, on the back wall of a display case or along a millwork panel. The fixture is suitable for dry location applications only, and a minimum 6" clearance to combustible materials must be maintained at all times.

Light quality and colour selection
An integrated LED strip spreads uniform intensity through the frosted lens with a 125° beam spread, which is what kills the scalloped shadows you get from spaced puck lights. With 90+ CRI, colours stay honest — useful over a cutting board, at a vanity, or in a jewellery or bakery display. The 5-position CCT select switch covers 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, so one SKU adapts to warm residential millwork or crisp commercial display without reordering. This 9W length produces 550 lumens at 2700 K, 705 lumens at 3500 K and 775 lumens at 3000 K, 4000 K and 5000 K, with efficacy reaching up to 96 lm/W in the series. Lumen maintenance is 70% at 60,000 hours, with a rated life of 36,000 hours average life at 90 CRI.

Electrical, dimming and linking
The bar has a built-in silent non-flicker electronic LED driver at 120V, 50/60 Hz — no remote transformer, no buzzing over the sink. It dims 100~0% with industry standard TRIAC and ELV dimmers, and the on-body ON/OFF switch lets you control a single run by hand. Connection is 3-wire, and the no-shadow linking system, complete with a joiner, allows runs to be linked up to 2500 mA / 300 W. Power factor is >0.95 and THD is <15, with an operating temperature range of -18°C~40°C (0°F~104°F) and a minimum start temperature of -18°C — handy for an unheated garage workshop or a cold Canadian mudroom cabinet.

Technical specifications
SKU: LEDBAR23-CCT
Brand: LITELINE
Length: 22-5/8" (574 mm)
Profile: 1-5/16" (33 mm) x 1" (25 mm)
Wattage: 9W
Lumens: 550 (2700 K), 775 (3000 K), 705 (3500 K), 775 (4000 K), 775 (5000 K)
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K selectable
CRI: 90+
Beam angle: 125°
Voltage: 120V, 50/60 Hz
Dimming: 100~0%, TRIAC / ELV
Connection type: 3-Wire
Approved location: Dry
Certification: cULus
Rated life: 36,000 hrs
Warranty: 3 Years

Accessories, applications and documentation
A power feed is required and accessories are sold separately: power cords, power cords with 90° connectors, hardwire boxes including motion sensor and PIR versions, magnetic mounting clips and 90° mounting clips are all part of the FluoroBar accessory family. To jump from one cabinet bank to the next, use the 12" flexible connector FBT6100-WH-3, the 24" flexible connector FBT6124-WH-3 or the 36" flexible connector FBT6136-WH-3, and mix lengths in the same run by pairing this bar with the LEDBAR CCT - LEDBAR14-CCT. Typical jobs: kitchen counters, island overhangs, pantry and closet shelving (compliant with NFPA 70, NEC section 410.16 (A)(1)), bathroom vanity cabinets, retail display cases, office reception millwork and cove ceilings. The full technical PDF spec sheet is available in the Documentation tab for dimensions, lumen tables and the complete accessory list.
