LED LINEAR CABINET LIGHT CCT

Built like a tool, not a trim piece

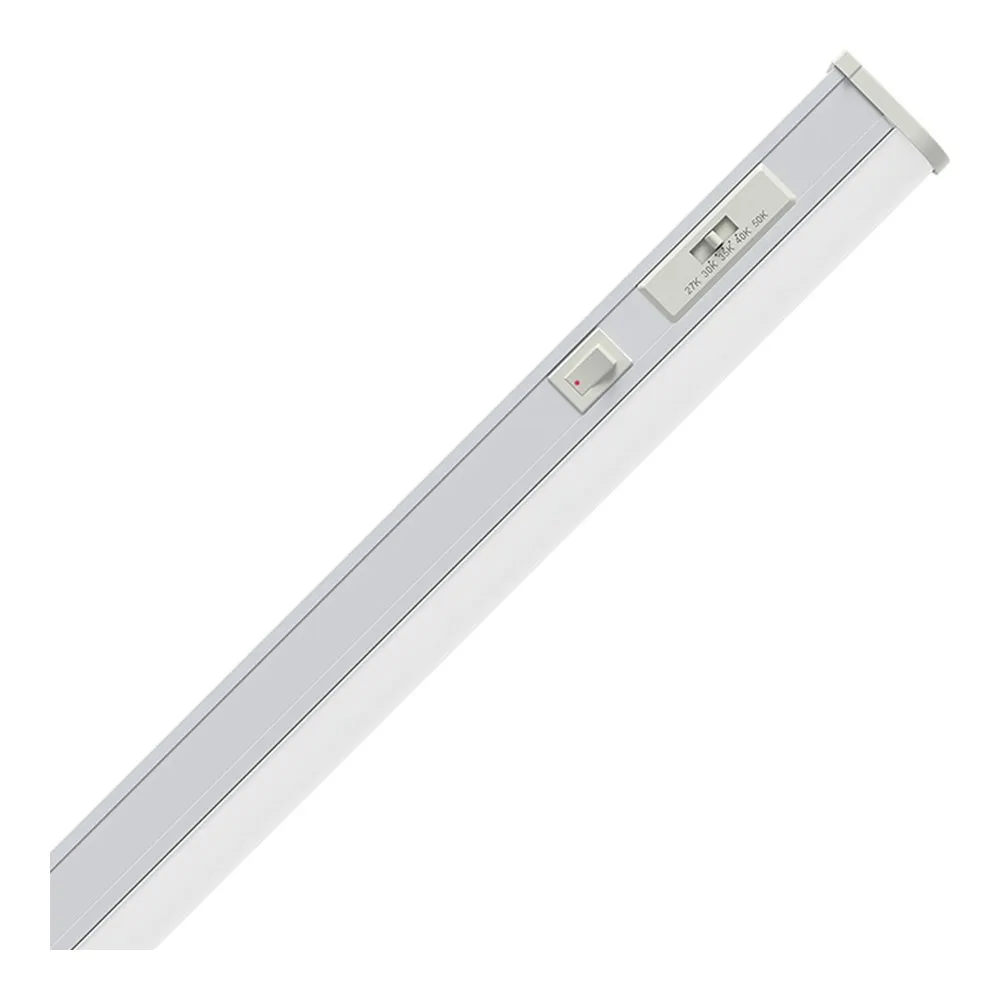

The body is a durable extruded aluminum frame with a frosted smooth lens — a combination that does two jobs at once. The aluminum pulls heat away from the integrated LED strip, which is what keeps the output stable over the long haul, and the frosted lens turns individual diodes into one continuous band of light. At 1-5/16" (33 mm) wide and just 1" (25 mm) tall, this under cabinet light bar tucks up against the underside of a cabinet without dropping into your sightline. Mounting hardware is included for horizontal surfaces and vertical wall surfaces, and 90° mounting clips or magnetic mounting clips are offered as accessories when you need a different angle or a tool-free hold on steel millwork.

Light quality you can actually see
With 90+ CRI, reds stay red and whites stay clean — meat on the cutting board, textiles on a retail shelf, paint chips on a desk. The lens spreads a 125° beam angle so the light washes the full depth of a standard counter instead of striping it. The 5-position CCT select switch covers 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, and on this 13½" model that means 250 lumens at 2700 K, 400 lumens at 3000 K, 350 lumens at 3500 K, 400 lumens at 4000 K and 400 lumens at 5000 K. Set it warm to blend with incandescent-look pendants, or push it to 5000 K over a workbench.

Electrical, dimming and linking
The fixture runs on 120V, 50/60Hz through a built-in silent, non-flicker electronic LED driver, with a power factor >0.95 and THD <15. It is 100~0% dimmable with industry-standard TRIAC and ELV dimmers, so it works with the wall dimmers most renovation projects already use. Connection is 3-wire, and these no-shadow linking fixtures can be linked up to 2500 mA / 300 W on one feed. A power feed is required and sold separately: 6' or 16" flexible power cords, power cords with 90° connectors, or a hardwire box (one version with an on/off switch, one with a motion sensor) depending on whether you're plugging in or wiring in behind the millwork.

Technical specifications
SKU: LCFIX-LEDBAR-14IN-CCT
Length: 13½" (343 mm)
Width / Height: 1-5/16" (33 mm) / 1" (25 mm)
Wattage: 5W
Lumens: 250 (2700 K) / 400 (3000 K) / 350 (3500 K) / 400 (4000 K) / 400 (5000 K)
Efficacy: up to 96 lm/W (series)
CRI: 90+
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K, 5-position switch
Beam angle: 125°
Voltage: 120V, 50/60Hz
Dimming: Yes — TRIAC / ELV, 100~0%
Connection: 3-Wire
Approved location: Dry
Operating temperature: -18°C~40°C (0°F~104°F), min. start temp. -18°C
Power factor: >0.95
THD: <15
Rated life: 36,000 hrs
Lumen maintenance: 70% @ 60,000 hrs
Certification: cULus
Warranty: 3 Years

Where it goes and what to pair it with
Think kitchen counters and backsplashes, butler's pantries, closets (it's suitable for use in closets and compliant with NFPA 70, NEC section 410.16 (A)(1), with a minimum 6" clearance to combustible materials), cove details above cabinetry, glass display cases in a boutique, and reception or bar millwork in a café. Install it toward the front edge of the cabinet underside so the light hits the work surface rather than the backsplash. For longer counters, continue the run with the 23" LEDBAR CCT or the 34" LEDBAR CCT, and jump around a corner or an obstacle with the 36" flexible connector FBT6136-WH-3. The full technical PDF spec sheet is in the Documentation tab, with dimensions, the ordering guide and the complete accessory list for power feeds, joiners and clips.
