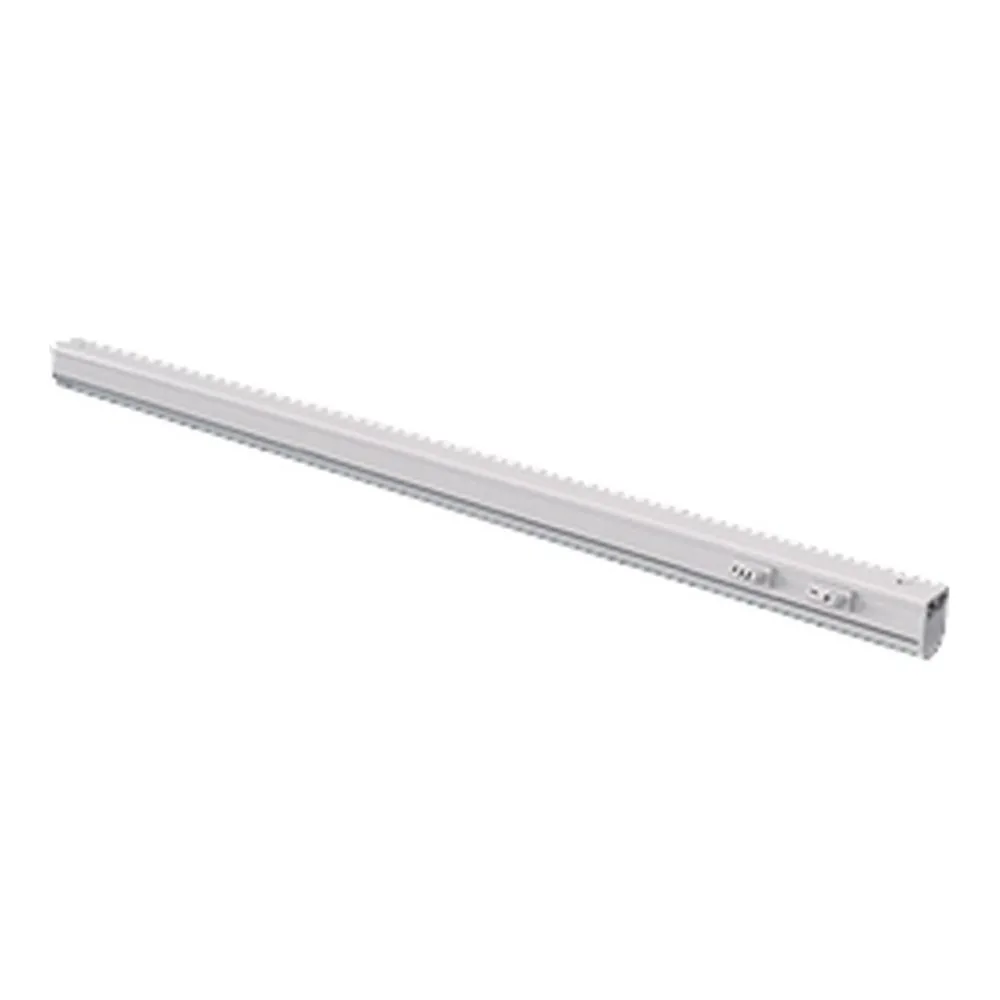

LED LINEAR CABINET LIGHT 3CCT 1FT

Name: LED LINEAR CABINET LIGHT 3CCT 1FT
Brand: LEDCO
SKU: LCFIX-CAB-120V-3CCT-1FT
Price: 39.97 CAD
Availability: InStock

SKU: LCFIX-CAB-120V-3CCT-1FT

Brand: LEDCO

Give your countertops the clean, even light they deserve. This LED linear cabinet light (SKU LCFIX-CAB-120V-3CCT-1FT) is the 1-foot member of the DeltaLum Shelf & Cabinet Lights family — the slim bar people also search as an under-cabinet LED light, under-shelf light bar, LED linear lighting or simply a cabinet light strip. Instead of the spotty pools you get from puck fixtures, it lays down a smooth, continuous beam across the work surface, which is exactly what you want over a prep counter, inside a display case, along a pantry shelf, under a bar top, in a workshop cabinet or in a retail showcase.

The housing is white post-painted steel with a smooth extruded frosted lens and a 120-degree beam angle, so the light spreads wide without hot spots. Field-selectable dual wattage lets you run it at 5W or 3W for 525 or 315 delivered lumens, and the selectable 3CCT switch on the side of the luminaire gives you three colour temperatures on site (30-40-50K) — warm for wood and stone kitchens, cooler for task and display work. CRI of ≥80 keeps food, fabrics, tools and merchandise looking true. It runs on 120V, 50/60Hz, is rated IP20 and damp location, works from -25 ˚C to +45 ˚C, is rated for 50,000 hours, is dimmable with compatible dimmers, and carries a 5-year warranty. Compact at 12.32" long × 0.91" wide × 1.18" high, it tucks out of sight under almost any cabinet.

It is right at home in kitchens, condo galley counters, basement bars, home offices, hobby benches, jewellery and bakery display cases, pharmacy shelving and boutique fixtures across Canada. Each unit ships with mounting clips, drywall screws and anchors, an end cap, an 11" jumper cable and a 61" white power cord with a moulded 2-prong plug, so several fixtures can be linked into a continuous run — total power of all linked fixtures should not exceed 180W. Need more reach? Pair it with the LED linear cabinet light 3CCT 3FT or the LED linear cabinet light 3CCT 4FT to follow a full cabinet bank. Add it to your project and light the counter, not the backsplash.

Built to disappear under the cabinet
This 1-foot bar is part of the DeltaLum Shelf & Cabinet Lights range, offered in 1', 2', 3' and 4' lengths so a run can follow a whole cabinet bank. The body is white post-painted steel, slim enough at 0.91" wide and 1.18" high to hide behind a cabinet lip, and 12.32" long for short uppers, bookcases and narrow display cases. The smooth extruded frosted lens diffuses the diodes into one continuous line with a 120-degree beam angle — no dotted reflections on a glossy quartz or laminate counter. Efficient thermal management protects the diodes and keeps output stable over the long haul.

Light quality and field-selectable output
Two controls sit on the side of the luminaire. The selectable dual wattage switch sets the fixture to 5W or 3W, delivering 525 or 315 lumens, so you can dial brightness to the depth of the counter instead of over-lighting a small nook. The selectable 3CCT switch offers three colour temperatures (30-40-50K), chosen right on the job with no need to reorder a different version — warm tones flatter wood and stone, cooler tones sharpen detail for task and display lighting. With a CRI of ≥80, produce, baked goods, fabrics, paint and packaged merchandise keep their real colours.

Electrical, mounting and linking
The integral driver runs on 120V, 50/60Hz and the fixture is dimmable with compatible dimmers for softer evening ambiance. Every unit is supplied with two "L" mounting clips, two "U" mounting clips, two drywall screws, two anchors, one end cap, one 11.42" linking cord and one 61" white power cord with a moulded 2-prong plug, which allows surface or side mount installation. Luminaires may be joined together for linkable runs using the jumper cable and end cap; the total power of all linked fixtures should not exceed 180W. For clean wire management, a separate hardwire box with on/off switching (DL-SCL/WB) is offered in the same family. Installation tip: mount the bar toward the front edge of the cabinet bottom rather than against the back wall — the light lands on the working surface instead of the backsplash, glare off glossy counters drops, and the source stays hidden from anyone standing in the room.

Technical specifications
SKU: LCFIX-CAB-120V-3CCT-1FT
Model: DL-SCL/1F/MW/MK/120V
Input wattage: 5-3W selectable
Delivered lumens: 525-315 lm
CCT: 3CCT selectable (30-40-50K)
CRI: ≥80
Voltage: 120V, 50/60Hz
Rated life: 50,000 hours
Ingress protection: IP20
Location: damp location rated
Operating temperature: -25 ˚C ~ +45 ˚C
Beam angle: 120 degrees
Dimensions (L × W × H): 12.32" × 0.91" × 1.18"
Housing: white post-painted steel
Warranty: 5 years

Applications, matching sizes and documentation
Retail, residential and malls are the natural homes for this bar: under kitchen uppers, above a bar or coffee station, inside glass display cabinets, along shelving in a boutique, pharmacy or bakery, under a reception desk, or over a garage workbench. When one length is not enough, stay in the same family so the colour and look match end to end — the LED under-shelf / cabinet light 2FS, the LED under-shelf / cabinet light 3 ft and the LED under-shelf / cabinet light 4F cover longer cabinet banks with the same selectable wattage and selectable CCT controls. The full technical PDF (LCFIX-CAB-120V-3CCT-1FT Spec Sheet) is in the Documentation tab, with the dimensional drawing, polar candela curve, ordering information and the complete list of supplied accessories.
