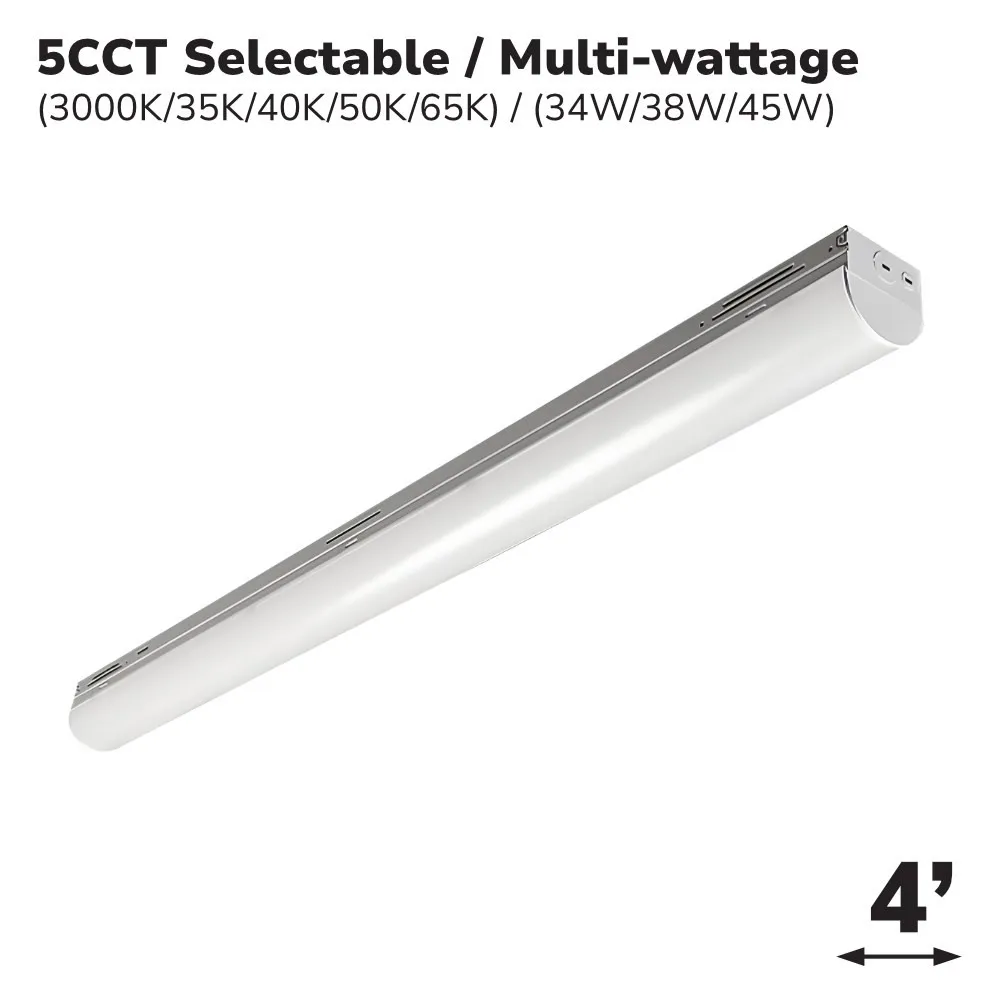

LED WRAPAROUND LINEAR FIXTURE 4'

Name: LED WRAPAROUND LINEAR FIXTURE 4'
Brand: LEDCO
SKU: LCWRAP-45W-4CCT-UV-T-4FT
Price: 89.97 CAD
Availability: InStock

SKU: LCWRAP-45W-4CCT-UV-T-4FT

Brand: LEDCO

Bright, clean, no-fuss light from wall to wall — that's what a good LED wraparound delivers, and this 4-foot model does it without drama. Often searched as a 4ft LED wraparound light fixture, a wrap light, a surface mount fixture or simply a linear LED ceiling light, it's the classic workhorse that replaces old fluorescent wrap troffers in hallways, basements, garages, stockrooms, laundry rooms and shops. The opal lens wraps the light source so the glow spreads soft and wide instead of stabbing your eyes, which is exactly why it stays a favourite for linear LED lighting in homes, offices, schools and small businesses alike.

SKU LCWRAP-45W-4CCT-UV-T-4FT measures 47.3" long by 2.8" wide by 3.1" high and runs on a selectable-wattage driver: choose 34 W, 38 W or 45 W and get 4420, 4940 or 6075 initial delivered lumens — one fixture, three light levels, so you can match a storage room and a work area with the same box. It's also field selectable 5 CCT, meaning five colour temperatures on the fixture: 3000K, 3500K, 4000K, 5000K and 6500K, with CRI greater than 80 for colours that look right. The auto-sensing 120-347V driver, 0-10V dimming compatibility, cULus listing, damp location rating, 100,000 hour L70 rating, 120° beam angle and −20˚C ~ +50˚C operating range round out a very complete package in a white post-painted steel housing.

This is the fixture for a renovated basement, a garage workshop, a condo corridor, a daycare, a stairwell, a clinic hallway, a warehouse office or a back-of-house prep area — anywhere Canadian winters push temperatures down and you still need instant, reliable light. Mount it straight to the ceiling with the standard snap-on brackets, hang it on chains, or line several up in a row with the optional joiner plate; the included J-box split cover plate keeps the wiring tidy. An optional field-installed wire guard protects the lens in rougher spaces, and an optional microwave sensor with remote control adds hands-free switching. Check the spec sheet in the Documentation tab, pick your length, and light the whole room properly.

Built to take a ceiling and keep looking good
The housing is white post-painted steel with a split LED box cover, a construction that stays straight over a 4-foot span and hides the wiring compartment once installed. The PMMA opal lens is mounted on the LED box cover and simply snaps onto the housing, so servicing means unclipping rather than wrestling with hardware. For gyms, storage rooms, loading areas or school corridors where a ball or a ladder can find the lens, an optional field-installed wire guard can be added. The fixture is usable in damp location and handles an operating temperature range of −20˚C ~ +50˚C, which matters in an unheated Canadian garage or a cold back room.

Light you can actually tune
This 5CCT LED wraparound luminaire is field selectable across 3000K, 3500K, 4000K, 5000K and 6500K: warm 3000K for a finished basement or a residential hallway, neutral 4000K for offices and corridors, crisp 5000K or 6500K for workshops, garages and utility rooms. CRI is greater than 80, so paint, product packaging and skin tones read naturally. The 120° beam angle spreads light broadly across the ceiling plane, and the opal diffuser softens the source for comfortable, low-glare illumination under a low basement ceiling or in a room full of screens.

Technical specifications
Product code: LCWRAP-45W-4CCT-UV-T-4FT
Length: 47.3" (4FT)
Width: 2.8"
Height: 3.1"
Selectable wattage: 34-38-45 W
Initial delivered lumens: 4420-4940-6075 lm
CCT: 3000K, 3500K, 4000K, 5000K, 6500K (field selectable)
CRI: >80
Input voltage: 120-347V auto-sensing
Beam angle: 120°
Hour rating (L70): 100,000
Dimming: 0-10V compatible
Housing: white post-painted steel with split LED box cover
Optics: PMMA opal lens
Operating temperature: −20˚C ~ +50˚C
Location: damp location
Certification: cULus Listed

Wiring and installation
The auto-sensing 120-347V driver is the quiet hero here: the same fixture goes on a residential circuit or a higher-voltage commercial branch without ordering a different model, which simplifies stocking for contractors working several sites. Mounting is surface or suspended chain, using the standard snap-on mounting brackets, and the included J-BOX split cover plate finishes the connection point cleanly. Need a continuous line of light over a corridor or a workbench? Row mounting is possible with the optional joiner plate. The fixture is compatible with 0-10V dimming for dimmable circuits, and with an optional microwave sensor controlled by an optional remote control for occupancy-based switching in washrooms, stairwells and storage rooms.

Where it earns its keep, and what's documented
Picture a 4-foot wrap every few feet down a condo corridor at 4000K, a pair at 5000K over a garage workbench, a row at 3500K in a clinic hallway, or single units in laundry rooms, utility closets, walk-in storage and small retail back rooms. Because the wattage is selectable, one part number covers the low-output storage room and the higher-output shop — set 34 W where light is plentiful and 45 W where the ceiling is high or the surfaces are dark. The full technical spec sheet for this model, including the dimensional drawing, the polar candela curve and the complete product specifications table, is available in the Documentation tab of this page for your submittals and permit files.
