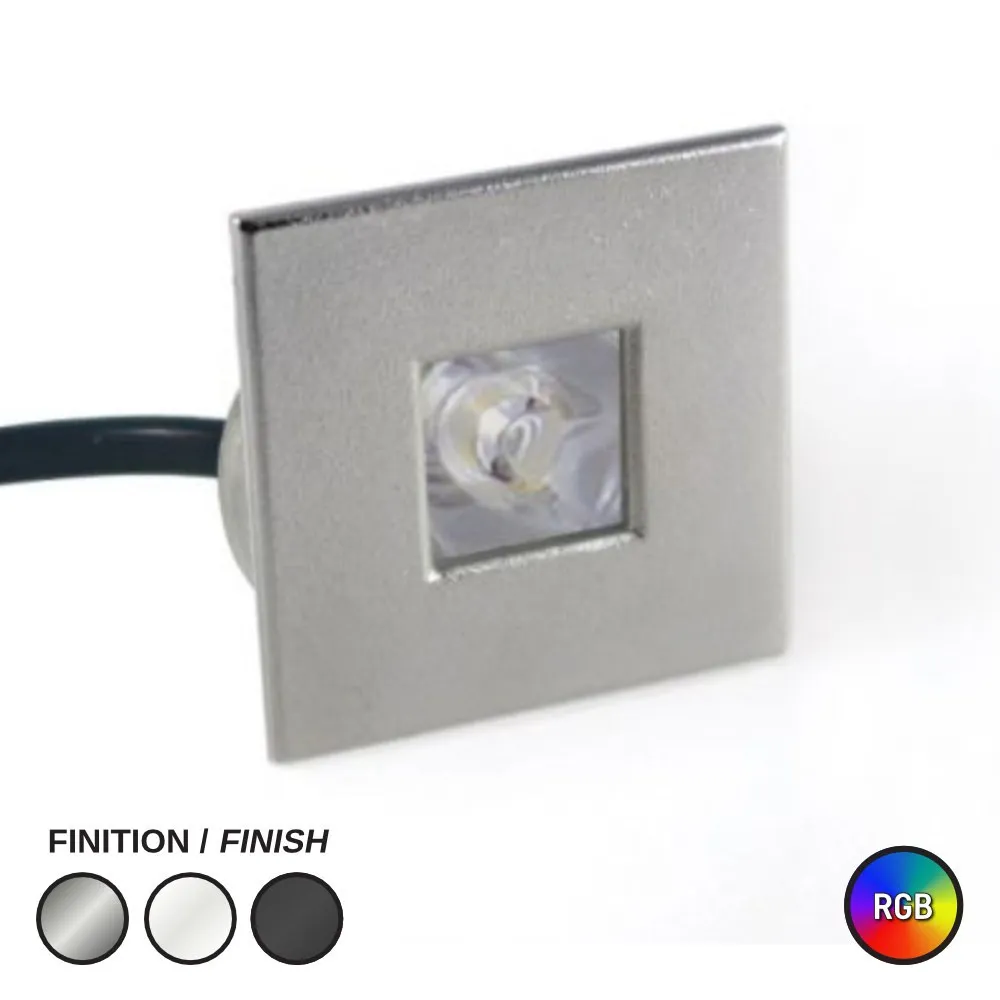

LED PUCK LIGHT #2000 SQUARE RGB BRUSHED STEEL

Name: LED PUCK LIGHT #2000 SQUARE RGB BRUSHED STEEL
Brand: LEDCO
SKU: LCPK2000S-1W-RGB-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000S-1W-RGB-BS

Brand: LEDCO

Tiny fixture, big impact: the LED PUCK LIGHT #2000 SQUARE is the little recessed accent light that makes cabinets, stairs and display cases look like they were designed by a pro. Known by plenty of names — led puck light, puck lamp, mini recessed spot, square downlight or cabinet light — this compact square puck slips into a small hole and delivers a clean, focused beam exactly where you need it. It is the go-to choice for kitchen lights puck installations under upper cabinets, for a bathroom cabinet light above a vanity, for toe-kick and stair lighting, and for display cabinet lighting in boutiques, jewellery counters and trophy cases. Model SKU LCPK2000S-1W-RGB-BS comes in the square trim with a brushed stainless finish and the RGB colour option, so you can dial the mood from cool white accents to vivid colour.

Behind that small square face is real performance. It runs on 12/24 V DC low voltage and draws only 1 watt while producing 125 lumens — roughly the punch of a 20-watt incandescent, with a fraction of the energy. The tight 25º projection angle keeps the light where you aim it, and a CRI above 80 makes wood grain, glassware and merchandise look honest and rich. It is dimmable, so you can go from full display brightness down to a soft evening glow, and the power factor above 90 keeps the electrical side efficient. The IP67 protection rating means dust and water are not a problem, which is rare in a puck this size. It measures 50 mm / 1.967" square, stands 29 mm / 1.142" with a 27 mm / 1.063" body, and drops into a 35 mm / 1.378 inches cutout. Rated lifespan is 25 000 hours and it carries a 3-year warranty.

This little square earns its keep everywhere: under kitchen cabinets, inside pantries and closets, along stair risers and deck steps, in wine cellars, saunas, showcases, reception desks and restaurant millwork. Canadian homeowners love it for basement renovations and mudrooms, while contractors use it by the dozen in commercial millwork because the IP67 rating handles damp and splash-prone spots. Need the same puck in a different look? Pair it with the LED puck light #2000 square in white for light-coloured cabinetry, choose the LED puck light #2000 louver when you want to cut glare, or add the LED puck light #2000 round 1 side for directional accents. Plan your low-voltage puck lighting layout and order yours today.

Built small, built tough
The #2000 square puck packs a full recessed luminaire into a face of 50 mm / 1.967", with an overall height of 29 mm / 1.142" and a 27 mm / 1.063" body that disappears into millwork, a shelf or a stair riser. The trim on this SKU is the square profile in brushed stainless, a finish that plays well with modern appliances, glass shelving and commercial displays. The same platform is offered with round, 1-side, 2-side and louver trims in white, black and brushed stainless, so an entire project can share one cutout and one look family. With an IP67 protection rating, this puck shrugs off dust and water where most mini recessed lights would not survive.

Light quality and colour
This version is the RGB model: colour-changing light for accent walls, display cases, bars, home theatres and feature millwork. It puts out 125 lumens from just 1 watt, the equivalent of a 20-watt incandescent lamp, with a CRI greater than 80 so surfaces, finishes and products keep their true tone. The 25º projection angle creates a tight, deliberate pool of light rather than a wide wash — ideal for grazing a backsplash, highlighting a single shelf, or marking a step. The family is also offered in 3000K warm white and 4000K neutral white if a fixed colour temperature suits the room better.

Technical specifications
SKU: LCPK2000S-1W-RGB-BS
Voltage: 12/24 V DC
Consumption: 1 Watt
Light intensity: 125 lumens
Incandescent equivalent: 20 watts
Colour: RGB
CRI: greater than 80
Projection angle: 25º
Power factor: +90
Protection rating: IP67
Dimmable: yes
Cutout size: 35 mm / 1.378 inches
Dimensions: 50 mm / 1.967" x 29 mm / 1.142", body 27 mm / 1.063"
Trim: square, brushed stainless
Lifespan: 25 000 hours
Warranty: 3 years

Installation and electrical
Because this is a low-voltage fixture running on 12/24 V DC, it needs a DC driver or power supply sized for the total load of the run — at 1 watt per puck, you can group a generous number of them on a single supply while leaving headroom. Drill a clean 35 mm / 1.378 inches cutout, feed the leads through, and seat the puck flush in cabinet tops, shelf undersides, kick plates, stair stringers or shower niches. Keep the driver accessible in a cabinet, soffit or service panel. The fixture is dimmable, so the dimming method has to be handled on the low-voltage side by a compatible DC dimmer or controller; for the RGB version, an RGB controller manages colour and level together.

Applications, alternatives and documentation
Think kitchen island toe-kicks, glass display cabinets in a jewellery or bakery shop, stair lighting in a finished basement, bar shelving, hotel millwork, museum vitrines and wet-area niches where the IP67 rating counts. Matching the rest of your project is easy: the LED puck light #2000 square 3000K white and LED puck light #2000 square 4000K white cover fixed white tones, the LED puck #2000 louver in brushed stainless RGB adds glare control, and the LED puck light #2000 round 1 side gives you a one-way directional beam. The full technical PDF spec sheet for LCPK2000S-1W-RGB-BS, including the technical drawing and the complete trim and model table, is available in the Documentation tab.
