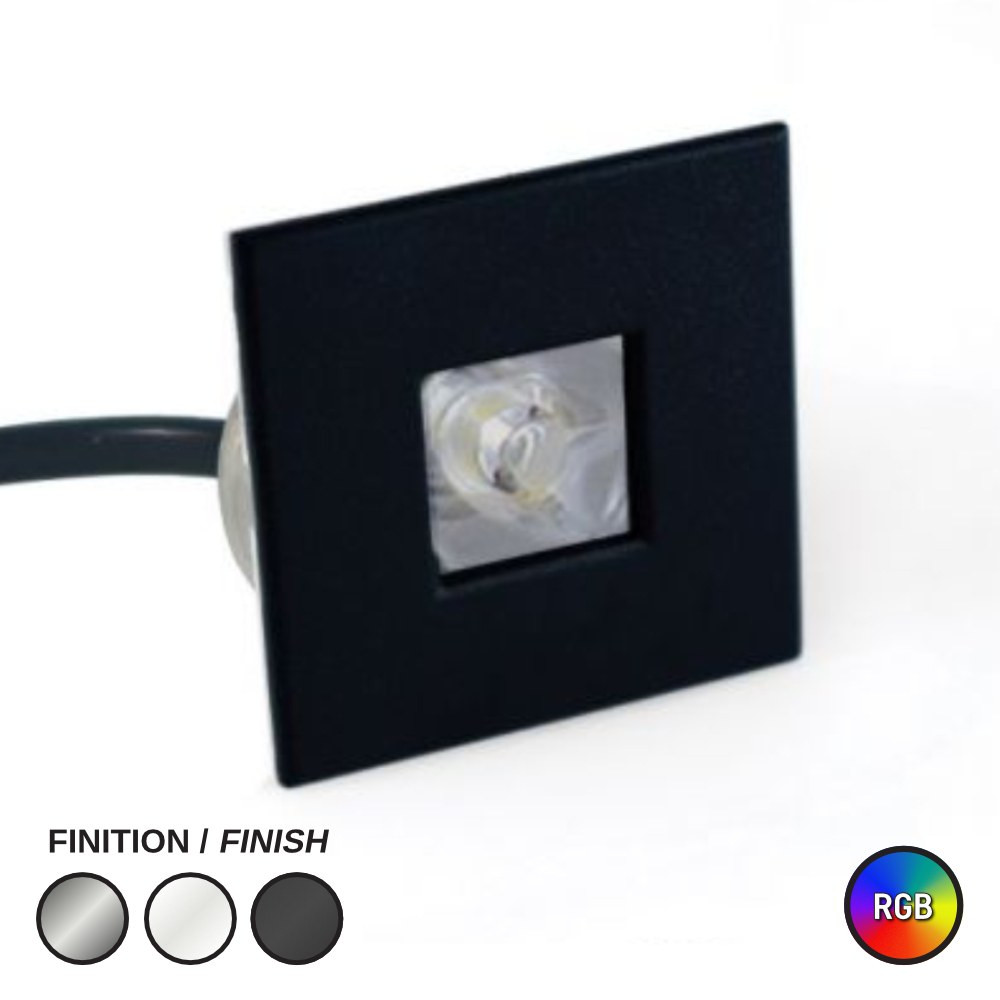

LED PUCK LIGHT #2000 SQUARE RGB BLACK

Name: LED PUCK LIGHT #2000 SQUARE RGB BLACK
Brand: LEDCO
SKU: LCPK2000S-1W-RGB-BK
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000S-1W-RGB-BK

Brand: LEDCO

Tiny fixture, huge effect: this square LED puck light is the little recessed accent light that makes cabinets, shelves and stairs look custom-built. People search for it as a LED puck light, a mini square downlight, a display cabinet light or a bathroom cabinet light — same idea, one small square trim that sits flush in wood, melamine, stone or drywall and throws a clean, focused beam exactly where you want it. It's the classic answer for under-cabinet lighting in a kitchen, glass display cases in a boutique, niches in a bathroom, toe-kicks, closets, bar fronts, stair risers and headboards. This version pairs a black square trim with RGB colour-changing light, so you get warm functional light or a full palette of colours on the same tiny point source. Model LCPK2000S-1W-RGB-BK.

Built for low-voltage work, it runs on 12/24 V DC and draws only 1 watt while delivering 125 lumens — roughly the punch of a 20-watt incandescent, with a 25 000 hour lifespan behind it. The tight 25º projection angle keeps the light where it belongs: on the shelf, on the bottle display, on the countertop, instead of glaring into your eyes. Colour rendering comes in at CRI greater than 80 so wood grain, quartz and merchandise keep their true tones, and the power factor above 90 keeps the whole run efficient. It is dimmable, so you can move from task light to ambiance, and it is rated IP67 — a real advantage near sinks, showers, outdoor kitchens and boat or RV work. The square black trim measures 50 mm / 1.967" across with a 29 mm depth, and it drops into a 35 mm / 1.378 inch cutout. Backed by a 3 year warranty.

In Canadian homes and businesses, this is the fixture that finishes a renovation: kitchen upper and lower cabinets, pantry shelving, bathroom vanities and medicine cabinets, basement bars, mudroom nooks, jewellery and retail display cases, restaurant millwork, hotel headboards and stair accents. Because it is low voltage, it's easy to run several pucks from a single driver and a compatible dimmer, and the shallow body slips into thin millwork where a standard pot light never could. Prefer a different look or colour temperature? The same square trim is offered in white with LED puck light #2000 square RGB white, in warm 3000K square puck light and in neutral 4000K square puck light, and the same PK2000 platform also comes as a louver trim puck light in black when you want the LED hidden from view. Plan your layout, add your driver, and light up the details.

Small format, serious construction
The PK2000 platform was designed for millwork and tight recesses: a compact square housing with a black trim, sized at 50 mm / 1.967" across the face with a 29 mm depth, dropping into a clean 35 mm / 1.378 inch hole. That means a hole saw, a wire, and you're done — no big pot light can, no drywall surgery. The square trim gives a sharper, more architectural look than a round puck, which is why designers pick it for stone niches, floating shelves and modern kitchen millwork. An IP67 protection rating makes it a serious candidate for damp and wet spots where ordinary under-cabinet lighting fails, and the 3 year warranty on the fixture backs up long installs.

Light quality and RGB colour
You get 125 lumens from a single watt, an incandescent equivalent of 20 watts, in a focused 25º projection angle that behaves like a mini spotlight rather than a flood. On a shelf, that means a defined pool of light on the object instead of a washed-out cabinet interior. Colour rendering of CRI greater than 80 keeps skin tones, wood grain and packaging colours honest — important in retail display cases and bathroom vanities. This SKU is the RGB version, so the same fixture delivers colour-changing light for bars, home theatres, gaming rooms, display cases and seasonal accents, with a compatible RGB controller. The fixture is dimmable, so brightness can be tuned to the room instead of running flat out.

Technical specifications
Model: LCPK2000S-1W-RGB-BK
Voltage: 12/24 V DC
Consumption: 1 watt
Light intensity: 125 lumens
Incandescent equivalent: 20 watts
Colour: RGB
Projection angle: 25º
CRI: greater than 80
Power factor: +90
Dimmable: Yes
Protection rating: IP67
Cutout size: 35 mm / 1.378 inches
Trim: square, black
Lifespan: 25 000 hours
Warranty: 3 years

Wiring and installation
This is a low voltage puck light, so it needs a 12 V or 24 V DC power supply sized for the total load of your run — at 1 watt per puck, a small driver feeds a lot of points, and for RGB you add a controller between the driver and the fixtures. Drill the 35 mm cutout, feed the lead through, connect, and press the puck home. Because the depth is only 29 mm, it fits inside cabinet tops, shelf boards, stair stringers and window benches where a recessed downlight would never clear. Keep runs balanced from the supply so brightness stays even, use a dimmer compatible with your driver, and on wet or outdoor work take advantage of the IP67 rating by sealing the wire entry properly.

Applications, family and documentation
Concrete examples: three pucks along a bathroom mirror niche, a row under kitchen uppers to light the counter, one per shelf in a boutique's glass display cabinet, RGB accents under a basement bar's floating shelf, or discreet markers in stair risers. If you want the same square trim in another finish or colour, look at the square RGB puck light in white, the 3000K warm white square puck or the 4000K neutral white square puck. Within the same PK2000 family you also have louver trims such as the RGB louver puck in black and directional versions like the round 1 side puck light, useful when you want to aim light off a vertical surface. The complete technical PDF, with the drawing, the cutout dimension and the trim ordering guide, is in the Documentation tab of this page — worth printing before you start cutting.
