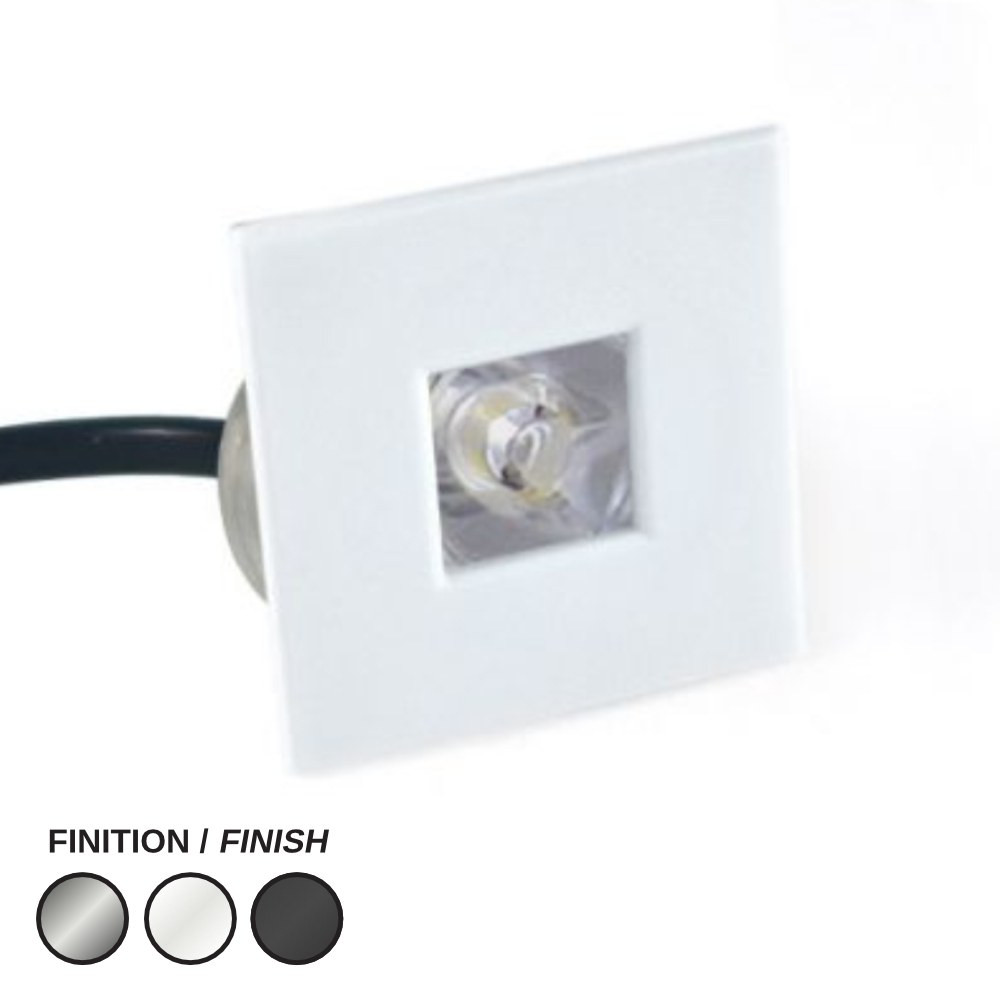

LED PUCK LIGHT #2000 SQUARE 3000K WHITE

Name: LED PUCK LIGHT #2000 SQUARE 3000K WHITE
Brand: LEDCO
SKU: LCPK2000S-1W-3000K-WH
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000S-1W-3000K-WH

Brand: LEDCO

Small light, big impact — meet the LED PUCK LIGHT #2000 SQUARE, the discreet little recessed LED puck light that turns cabinets, shelves and stairs into something you actually want to show off. Also called a mini puck, a square mini downlight or simply a square downlight, it drops into a cabinet base, a toe-kick, a display case, a closet or a soffit and disappears, leaving only a crisp, clean beam of warm light. Homeowners use it for kitchen puck lights under upper cabinets, for a bathroom cabinet light over the vanity, and for bookcase or wine-rack accents; contractors and shop owners use it for display cabinet lighting, reception desks, retail millwork and showroom shelving. SKU LCPK2000S-1W-3000K-WH.

Behind that tiny white square trim there is real performance. It runs on 12/24 V DC low voltage, draws only 1 watt and delivers 125 lumens — the light you would expect from a 20 W incandescent, without the heat or the energy bill. The 3000K warm white colour temperature flatters wood, stone and stainless, while a CRI greater than 80 keeps food, fabrics and merchandise looking true. The tight 25° projection angle creates a focused pool of light instead of glare, the power factor above 90 keeps the electrical side efficient, and yes, it is dimmable so you can drop it to a soft glow at night. Rated IP67 and built for a 25,000-hour lifespan, it is backed by a 3-year warranty.

This is the fixture that finishes a project: kitchen islands and pantry shelves, bathroom vanities and medicine cabinets, jewellery and bakery display cases, stair risers, mudroom benches, boat and RV interiors, and outdoor soffits or deck details where moisture is a fact of Canadian life. It shares the same 35 mm cutout as the rest of the PK2000 family, so you can mix trims on one run — pair it with the LED puck light #2000 round 1 side for step lighting, or the LED puck light #2000 louver where you want to cut glare. Prefer a cooler, crisper light or a splash of colour? See the 4000K square version or the RGB square version. Order yours and light up the details.

A recessed mini puck built to disappear
The LED PUCK LIGHT #2000 SQUARE is a recessed low-voltage luminaire designed to sit flush in millwork, panels and soffits. The square white trim measures 50 mm across and the housing is 29 mm deep, with a 27 mm dimension shown on the technical drawing — compact enough for cabinet bottoms, shelf undersides, stair stringers and tight soffit cavities. The same platform is offered in round, square, 1-side, 2-side and louver (persienne) trims and in white, black and brushed stainless finishes, so an entire job can share one look or mix styles on purpose. This SKU is the square white 3000K version.

Light quality that flatters what it touches
At 125 lumens from a single 1 W LED, this puck is an accent light, not a room light — and that is exactly the point. The 3000K warm white tone keeps kitchens, vanities and display cases inviting rather than clinical, and a CRI above 80 renders wood grain, skin tones, food and merchandise honestly. The 25° projection angle concentrates the beam straight down into a defined pool, which is why these pucks are so good at grazing a backsplash, highlighting a shelf of glassware or marking a stair edge without shining in anyone's eyes. Incandescent equivalence is rated at 20 W, so you get the familiar look of a small halogen puck with a fraction of the draw and none of the heat build-up inside a closed cabinet.

Technical specifications
SKU: LCPK2000S-1W-3000K-WH
Voltage: 12/24 V DC
Consumption: 1 W
Light intensity: 125 lumens
Incandescent equivalent: 20 W
Colour temperature: 3000K
CRI: >80
Projection angle: 25°
Power factor: +90
Cutout size: 35 mm
Protection rating: IP67
Lifespan: 25 000 hours
Dimmable: yes
Trim: square, white
Warranty: 3 years

Wiring, dimming and installation
Installation is straightforward: drill a 35 mm cutout, pass the lead, seat the puck and feed it from a 12 V or 24 V DC low-voltage supply. Because each fixture only pulls 1 W, a long run of pucks stays easy on the driver — handy when you are lighting a full wall of cabinets or a row of display cases from one location. The fixture is dimmable, so pair it with a compatible low-voltage dimming system and you can take a display from full brightness during business hours to a soft evening glow. The IP67 rating means it tolerates damp and splash-prone spots that ordinary cabinet lights cannot, such as bathroom vanities, shower niches, outdoor soffits, covered decks, boat and RV cabinetry.

Applications, compatibility and documentation
Concrete examples: under-cabinet task light over a kitchen counter, toe-kick accents on an island, interior lighting for a glass display cabinet at a boutique or bakery, stair-riser markers in a finished basement, closet and pantry lighting, reception desk millwork in an office. Because every PK2000 trim uses the same 35 mm cutout, you can standardize one hole size across the project and choose trims by function — the round 1 side puck for directional step and corridor lighting, the louver puck in black for glare control, and the matching square 4000K or square RGB models when a zone calls for cooler light or colour. The full technical PDF spec sheet for LCPK2000S-1W-3000K-WH, with the dimensional drawing and the complete trim ordering guide, is available in the Documentation tab.
