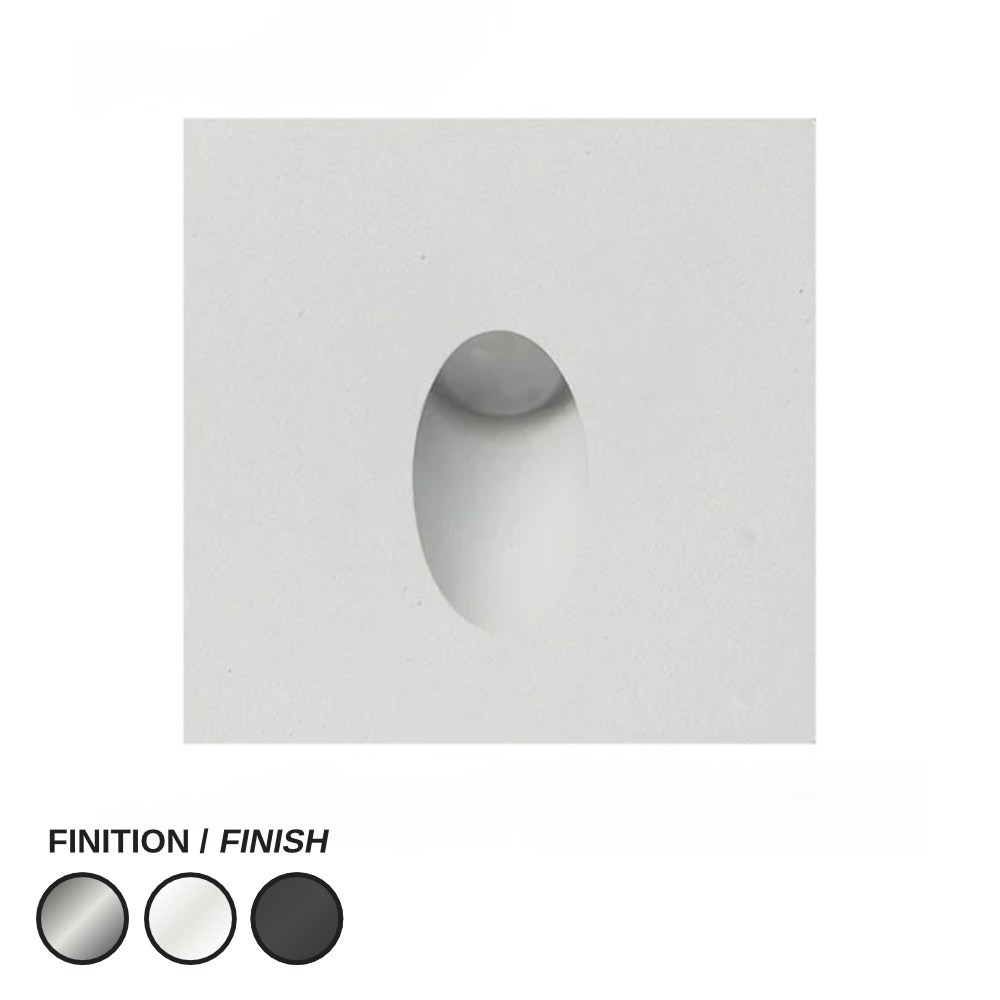

LED PUCK #600S - LCPK600S-12V-40K-WH

Name: LED PUCK #600S - LCPK600S-12V-40K-WH
Brand: LEDCO
SKU: LCPK600S-12V-40K-WH
Price: 30.97 CAD
Availability: InStock

SKU: LCPK600S-12V-40K-WH

Brand: LEDCO

Tiny light, huge difference. The LED PUCK #600S (SKU LCPK600S-12V-40K-WH) is the little square recessed puck that finally makes your cabinets, shelves and display cases look finished. People search for it as a LED puck light, a kitchen under cabinet lighting fixture, a cabinet light or a dimmable LED puck light 12V — and that is exactly what it is: a low-voltage mini recessed spot you drop into a cabinet bottom, a shelf, a toe-kick, a closet or a millwork panel to throw a clean, controlled pool of light exactly where you need it. It is a modern, low-heat answer to the old halogen pucks that used to cook your spice jars, and it slips into the same kind of small round cutout woodworkers already make on site.

This square white-trim version runs on DC 12V and draws only 1 Watt for 85 lumens, with a crisp 4000K neutral white colour that makes countertops, glassware and merchandise look bright and true. The CRI >80 keeps colours honest — real wood tones, real food colours, real product colours in a display case. Its tight 15º beam angle gives you an accent-style shaft of light rather than a wash, perfect for highlighting a single shelf, bottle or object. It is dimmable, measures 50 x 50 x 27 mm with a 47 mm cutout, carries an IP 21 rating, a rated life of 25 000 hrs and a 3-year warranty. Working temperature is 40ºC at a 25ºC room temperature, so it stays comfortable inside tight cabinetry.

It shines in kitchen uppers and islands, bathroom vanity cabinets, bookcases, wine and liquor displays, jewellery and boutique showcases, reception millwork and pantry shelving — residential renovations and small commercial fit-ups alike, from a Montréal condo kitchen to a storefront display in Calgary. Being 12V, it needs a low-voltage power supply and pairs naturally with the rest of the 600 series, including the matching LED puck #600S in black when you want a darker trim, or the 24V versions such as the LED puck 600 square 24V 40K white, LED puck 600 square 24V 40K stainless and the warmer LED puck 600 square 24V 30K white. Plan your cutouts, order your pucks and light up every shelf in the house.

Built small, built to disappear
The LED PUCK #600S is a square mini recessed puck light measuring only 50 x 50 x 27 mm, with a white trim that sits flush and quietly against cabinet bottoms, shelf undersides and millwork panels. Its depth of 27 mm is what makes it so useful in cabinetry work: it hides inside a shelf or a valance instead of hanging below it, so nothing catches your eye or your hand. The installer cuts a 47 mm hole with a standard hole saw, feeds the low-voltage leads through, and the puck seats in place. Multiply it along a run of uppers and you get an even rhythm of light points instead of one flat, boring glow.

Light quality you can actually see
At 4000K neutral white, this puck delivers a clean, daylight-leaning tone that reads as bright and modern — ideal over countertops, sinks, work surfaces and retail shelving where you want crisp visibility rather than a cozy amber. The CRI >80 means colours stay faithful: fabric samples, food prep, cosmetics on a vanity shelf and merchandise in a display case all look like themselves. The narrow 15º beam angle concentrates the 85 lumens into a defined pool, which is exactly what you want for accenting objects, glass shelves and feature niches. Because it is dimmable, you can tune that accent down for evening ambience with a compatible low-voltage dimming setup.

Technical specifications
SKU: LCPK600S-12V-40K-WH
Input voltage: DC 12V
LED power: 1 Watt
Lumen output: 85 LM
Colour temperature: 4000K (neutral white)
CRI: >80
Beam angle: 15º
Dimmable: Yes
IP class: IP 21
Dimensions: 50 x 50 x 27 mm
Cutout size: 47 mm
Working temp: 40ºC at room temp 25ºC
Lifespan: 25 000 hrs
Warranty: 3 years

Wiring, installation and compatibility
This is a 12V low-voltage puck, so it must be fed by a 12V DC power supply sized for the total load of the pucks on the circuit; at 1 Watt each, you can group a generous number of them on a single small driver and still keep headroom. Keep the connections accessible inside the cabinet or behind a removable panel, and mount the power supply where air can move around it. The IP 21 rating means indoor, dry to lightly protected locations — cabinet interiors, shelves, closets, display cases — not showers or exterior soffits. For dimming, use a dimming method suited to your 12V supply and test one unit before you cut thirty holes. Within the same family you can mix trims and temperatures room by room: the black-trim LED puck #600S, or the 24V line with LED puck 600 square 24V 40K black and LED puck 600 square 24V 30K black for warmer spaces.

Where contractors put them — and the paperwork
Kitchen uppers over a quartz counter, a bar back with glass shelving, bathroom vanity cabinets and medicine niches, walk-in closets, home office bookcases, pantry shelves, hotel millwork, pharmacy and boutique display cases, reception desks and trophy cabinets: anywhere a small, bright, focused point of light makes the cabinetry look custom. The 3-year warranty and the 25 000 hrs rated life keep service calls rare, which matters when the fixture is buried in finished millwork. The full technical PDF spec sheet for LCPK600S-12V-40K-WH is in the Documentation tab with the dimensional drawing and cutout detail — download it before you build the cabinet boxes so the holes land where you want the light.
