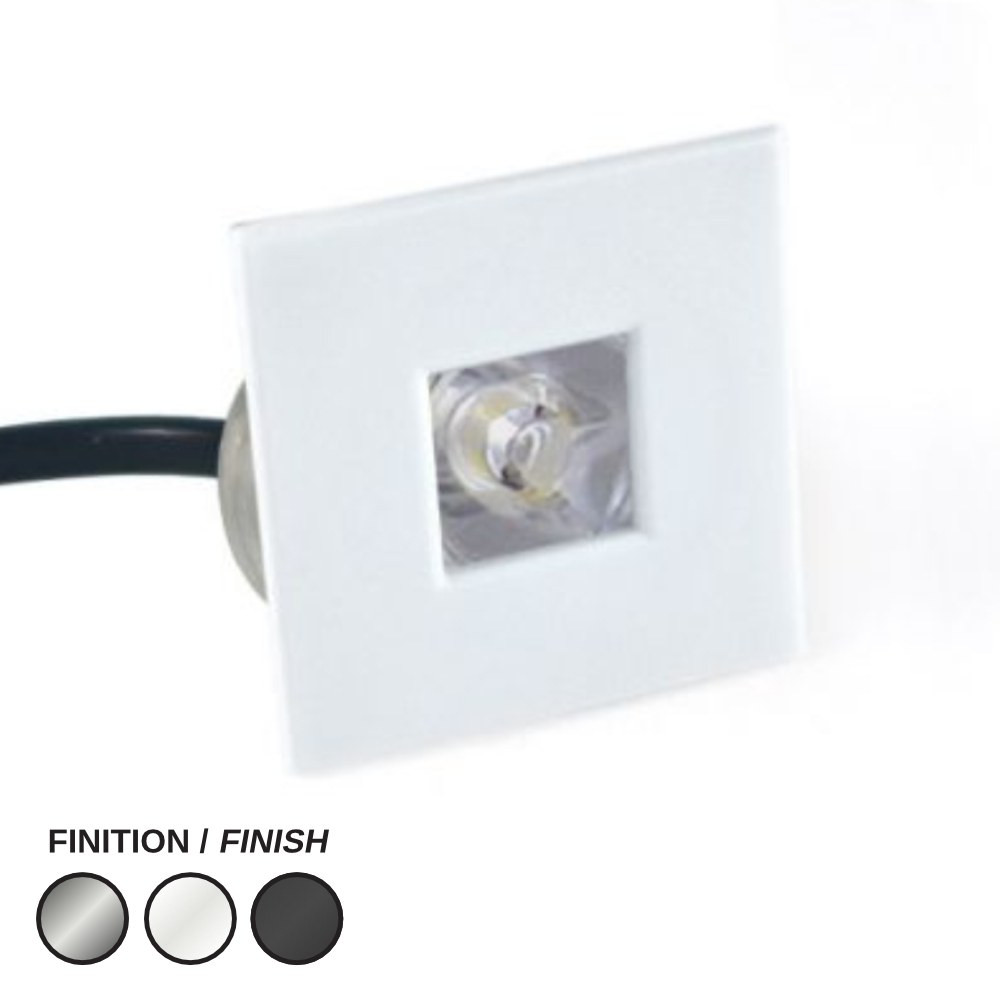

LED PUCK LIGHT #2000 SQUARE 4000K WHITE

Name: LED PUCK LIGHT #2000 SQUARE 4000K WHITE
Brand: LEDCO
SKU: LCPK2000S-1W-4000K-WH
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000S-1W-4000K-WH

Brand: LEDCO

Small light, big difference: the LED puck light #2000 Square turns dark shelves, toe-kicks and cabinet interiors into something worth showing off. Also called a square mini recessed puck, a cabinet spotlight or simply an under cabinet light, this compact low-voltage fixture drops into a small hole and disappears into the surface, leaving only a crisp square white trim and a tight, jewel-like beam. It's the go-to for kitchen puck lights under upper cabinets, for display cabinet lighting in a boutique, for bathroom cabinet light accents, and for stair risers, closets, bookcases, bars and reception millwork where a full-size recessed pot would be far too big.

Behind that tiny face sits real performance. It runs on 12/24 V DC low voltage and draws just 1 watt, yet delivers 125 lumens — roughly the punch of a 20-watt incandescent — with a focused 25º projection angle that keeps the light on the merchandise, the countertop or the backsplash instead of spilling everywhere. The 4000K neutral white output reads clean and modern, and with a CRI of >80, wood grain, quartz veining, fabrics and product packaging all look true. It is dimmable, so you can take a kitchen from task-bright to evening-soft, and the power factor of +90 keeps the electrical side tidy. An IP67 protection rating means dust and water are not a concern, and the rated lifespan of 25 000 hours plus a 3-year warranty back it up. Compact by design: 50 mm / 1.967" face, 29 mm / 1.142" body, 27 mm / 1.063", installed in a 35 mm / 1.378 inch cutout.

This is the detail that makes a renovation feel finished — Canadian kitchens with deep upper cabinets, basement bars, jewellery and eyewear display cases, hotel millwork, pantry shelving, garage workbenches and exterior soffit or step accents where the IP67 rating earns its keep. The white square trim blends into painted MDF and light melamine; if your project calls for a warmer glow, choose the LED puck light #2000 square 3000K, and for colour-changing accent work look at the LED puck light #2000 square RGB. Mixing shapes in the same millwork? The LED puck light #2000 round 1 side and the LED puck light #2000 louver share the same platform. Order SKU LCPK2000S-1W-4000K-WH and light up the details.

Built to disappear into the millwork
The #2000 Square is a miniature recessed LED puck light designed to sit flush in cabinetry, shelving and soffits. The visible face measures 50 mm / 1.967", the body is 29 mm / 1.142" and 27 mm / 1.063", and the whole fixture installs in a single 35 mm / 1.378 inch cutout — a standard Forstner-bit hole your cabinetmaker can drill in seconds. This version wears a square white trim, the cleanest match for white or painted cabinet frames, light melamine and drywall soffits. The same platform is also offered with round, 1-side, 2-side and louver trims in white, black and brushed stainless, so a single project can keep one lighting look from the kitchen island to the display wall.

Light quality you can actually see
With 125 lumens from only 1 watt, this puck is the equivalent of a 20-watt incandescent without the heat load or the constant bulb changes. The 4000K neutral white colour temperature is the sweet spot for work surfaces and retail display: crisp and current, never blue, never yellow. A CRI of >80 keeps colours honest — important when you're lighting food prep, cosmetics, clothing or finished wood. The 25º projection angle creates a defined, controlled pool of light rather than a wash, which is exactly what you want for grazing a backsplash, highlighting a shelf of product or marking a stair. It is dimmable, so the same installation can serve as task lighting at dinner prep and as low ambient light later in the evening.

Technical specifications
SKU: LCPK2000S-1W-4000K-WH
Voltage: 12/24 V DC
Consumption: 1 Watts
Light intensity: 125 Lumens
Incandescent equivalent: 20 Watts
Colour temperature: 4000K
CRI: >80
Projection angle: 25º
Power factor: +90
Dimmable: Yes
Protection rating: IP67
Cutout size: 35 mm / 1.378 inches
Dimensions: 50 mm / 1.967" x 29 mm / 1.142", 27 mm / 1.063"
Trim: Square, White
Lifespan: 25 000 Hours
Warranty: 3 years

Wiring, power and installation
Because it operates on 12/24 V DC low voltage, this puck needs a DC driver or power supply sized for the total load of the run — at 1 watt each, a long row of pucks stays very manageable, which is why designers can line a whole bank of cabinets without heavy electrical work. Plan your driver location in a ventilated, accessible spot (inside a cabinet gable, above the upper cabinets or in a service cavity), keep the low-voltage runs short to avoid voltage drop, and confirm your dimmer is matched to the driver before you close up the millwork. The IP67 rating is a real advantage on the jobsite: it tolerates dust during construction and moisture in service, so it can be used in bathrooms, near sinks, in outdoor soffits, on steps or in wash-down areas where an ordinary cabinet light would fail.

Where it earns its place — and what pairs with it
Think under-cabinet task lighting over a quartz counter, a grid of square downlights inside a glass display case, accent points in a wine cellar, evenly spaced markers along a hallway soffit, or shelf lighting in a pharmacy, bakery or optician's shop. For a warmer residential feel use the LED puck light #2000 square 3000K; for colour scenes in a bar or media room, the LED puck light #2000 square RGB. Need directional or glare-controlled versions in the same family? See the LED puck light #2000 round 1 side and the LED puck #2000 louver stainless. The full technical PDF spec sheet, with the drawing, the cutout dimension and the complete trim and model table, is in the Documentation tab.
