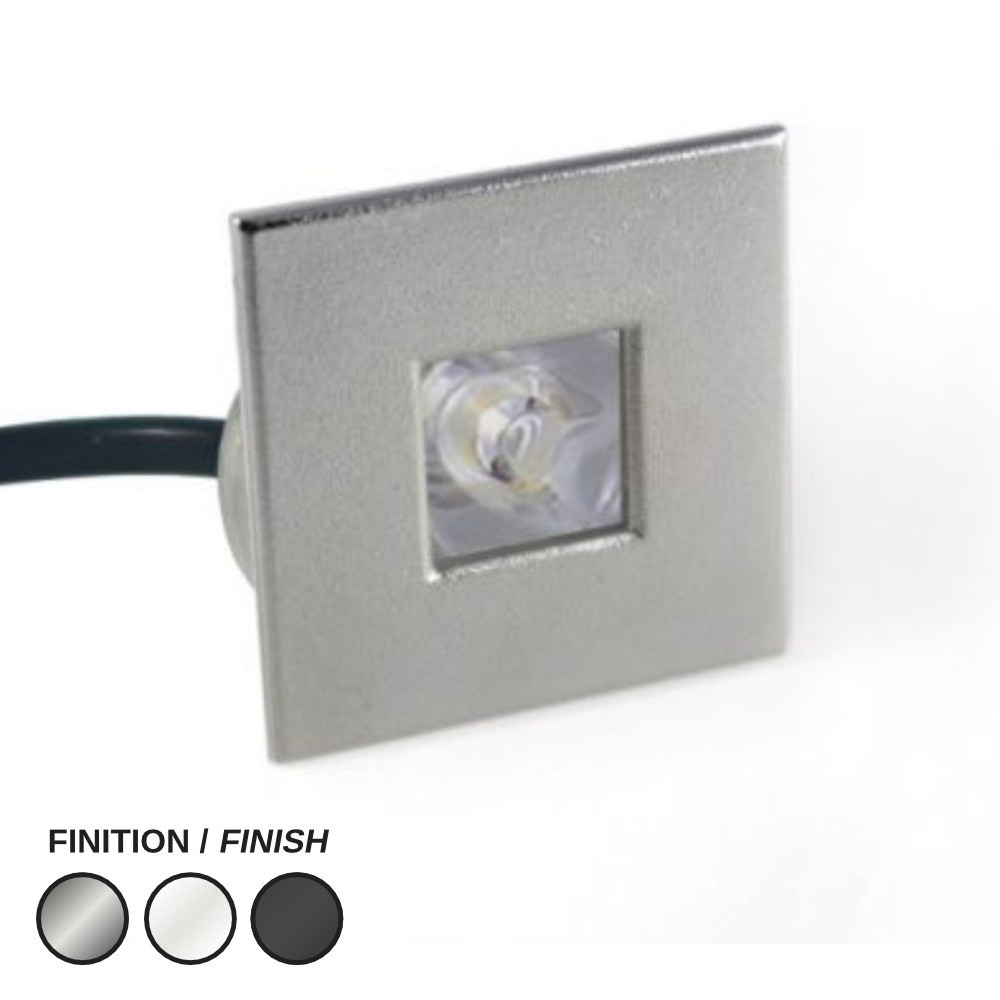

LED PUCK LIGHT #2000 SQUARE 3000K BRUSHED STEEL

Name: LED PUCK LIGHT #2000 SQUARE 3000K BRUSHED STEEL
Brand: LEDCO
SKU: LCPK2000S-1W-3000K-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000S-1W-3000K-BS

Brand: LEDCO

Small fixture, big impact: the LED PUCK LIGHT #2000 SQUARE is the tiny recessed accent light that turns cabinets, shelves and stair nosings into something worth looking at. Known by shoppers as a LED puck light, mini square downlight, cabinet spot or display cabinet lighting, this low-voltage puck disappears into millwork, toe-kicks, wardrobe panels and bathroom vanities, leaving only a crisp square of warm light. It is the go-to solution when you need kitchen puck lights under upper cabinets, a discreet glow in a glass display case, or a row of clean little squares along a hallway ceiling. Homeowners renovating, cabinetmakers and contractors all reach for the same answer: a puck small enough to hide, bright enough to matter.

This version is finished in brushed stainless with a square trim, and delivers 125 lumens from just 1 watt — the light you'd expect from a 20 watt incandescent, with a fraction of the draw. It runs on 12/24 V DC, so it's safe and simple inside furniture, and it is dimmable for mood control from full brightness down to a soft evening glow. The warm 3000K colour temperature flatters wood, stone and skin tones, while a CRI of over 80 keeps dishware, merchandise and finishes looking true. A tight 25° beam angle creates a focused pool of light instead of spill, the power factor of +90 keeps the electrical side clean, and an IP67 protection rating means humidity, splashes and dust are not a problem. Rated for 25,000 hours and backed by a 3 year warranty, it is built to stay put once the millwork is closed up.

Put it under kitchen uppers, inside pantry and wardrobe units, over a bar counter, in bathroom vanities, in retail display cases and jewellery showcases, or in stair risers and mudroom benches — anywhere a Canadian renovation needs light without a visible fixture. Because it is part of the LCPK2000 family, you can mix trims on the same project: pair it with the LED puck light #2000 louver where you want glare shielded, or the LED puck light #2000 round 1 side for directional accents. Prefer white trim? See the LED puck light #2000 square in white. Order SKU LCPK2000S-1W-3000K-BS and light up the details.

Built to hide, made to last
The #2000 square puck is a recessed mini-luminaire designed to sit flush in cabinet panels, shelf undersides, soffits and furniture. The brushed stainless square trim gives it a clean, modern edge that works just as well against white lacquer millwork as it does on walnut or matte black cabinetry. Its compact body slips into standard millwork thicknesses and cabinet voids, which is exactly why cabinetmakers keep a box of these on the truck: one puck, one small hole, no visible housing, no bulky driver hanging under the shelf.

Light quality that flatters what it touches
At 125 lumens from 1 watt, this puck is an accent light, not a room light — and that's the point. The 25° projection angle concentrates the beam into a defined pool, so you get sparkle on a countertop, a bottle display or a piece of art instead of washed-out spill. The 3000K warm white tone keeps kitchens, wardrobes and vanities feeling welcoming, while a CRI above 80 renders wood grain, fabrics and merchandise honestly. Because it is dimmable, you can run a row of them at full output while cooking and dial them back to a soft night-light level after dinner.

Technical specifications
Voltage: 12/24 V DC
Consumption: 1 watt
Light intensity: 125 lumens
Incandescent equivalent: 20 watts
Colour temperature: 3000K
CRI: greater than 80
Projection angle: 25°
Power factor: +90
Protection rating: IP67
Dimmable: yes
Lifespan: 25,000 hours
Cutout size: 35 mm
Trim: square, brushed stainless
Warranty: 3 years
SKU: LCPK2000S-1W-3000K-BS

Wiring and installation
This is a low-voltage fixture: it must be fed by a 12 V or 24 V DC power supply sized for the total load of the run. At 1 watt each, you can group a generous number of pucks on a single driver while keeping headroom — always add up the wattage and leave a margin. Drill the 35 mm cutout, pass the leads, connect them to the low-voltage circuit and seat the puck; no J-box inside the cabinet, no hot surfaces against wood. For dimming, use a driver or controller compatible with low-voltage DC dimming and keep all pucks on the same channel for even output. The IP67 rating also makes it a solid choice for splash-prone zones like vanity units, bar sinks and shower niches on the dry side of the glass.

Applications, options and documents
Think under-cabinet task lighting in a kitchen, shelf lighting in a retail boutique, toe-kick and stair accents, closet and wardrobe interiors, bar back-bars, reception desks and glass showcases in a dental or jewellery office. The same LCPK2000 platform offers other trims so one project can stay visually consistent: the louver trim when you want to shield the source from eye level, the round 1 side version for asymmetric washes, and the square white trim in 4000K when a cooler, brighter-looking white suits the space better. The full technical PDF (LCPK2000S-1W-3000K-BS Spec Sheet) with the technical drawing and cutout dimensions is available in the Documentation tab — worth printing for the installer before the millwork gets drilled.
