LED PUCK LIGHT #2000 ROUND 1 SIDE 4000K BRUSHED STEEL

Name: LED PUCK LIGHT #2000 ROUND 1 SIDE 4000K BRUSHED STEEL
Brand: LEDCO
SKU: LCPK2000R-1S-1W-4000K-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000R-1S-1W-4000K-BS

Brand: LEDCO

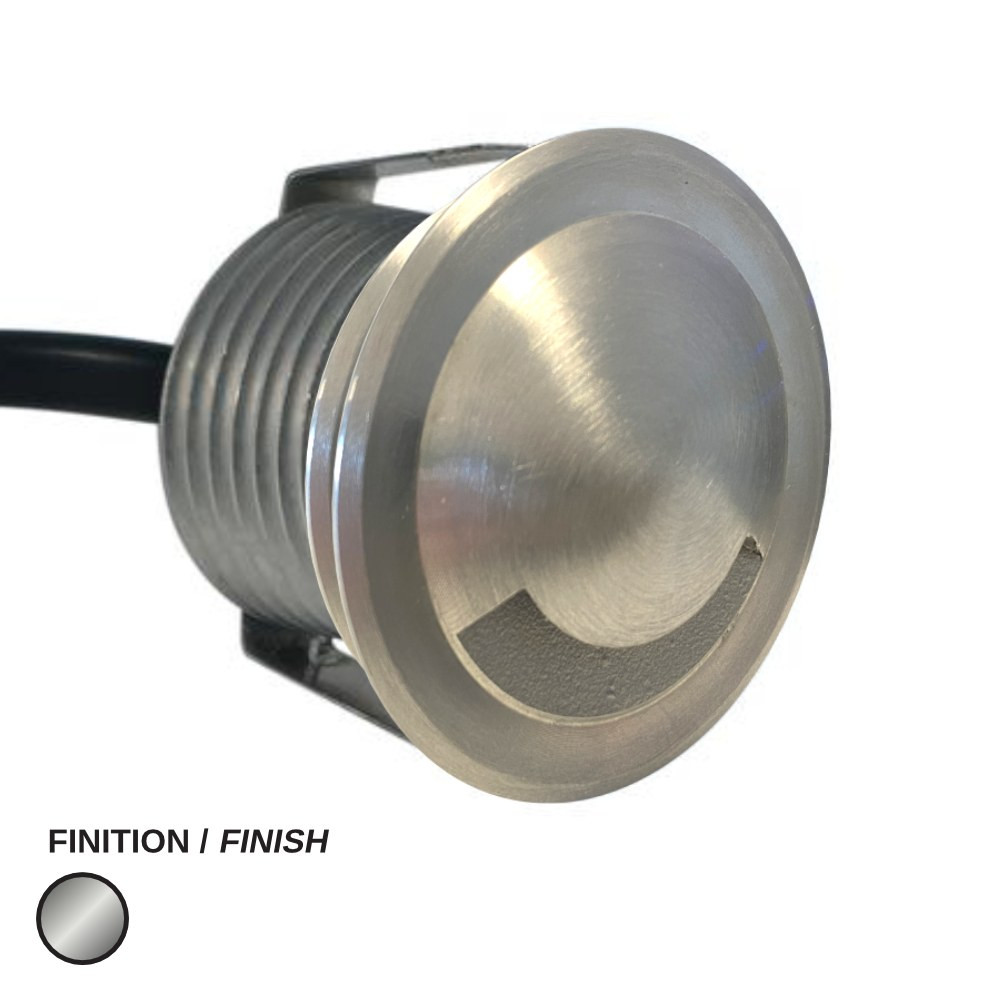

Small enough to disappear, bright enough to change the whole room: this is the LED puck light #2000 with a round one-way trim in brushed stainless steel. Also called a recessed puck light, mini spot or rondelle, it drops into a cabinet panel, a stair riser, a toe-kick or a display base and throws its light to one side instead of straight down — perfect when you want a soft wash along a wall, a shelf or a walkway without staring into the diode. If you have been searching for led puck lights, kitchen lights puck or a discreet bathroom cabinet light, this is the tiny fixture that does the job.

Under the trim, this 12/24 V DC low-voltage puck draws just 1 Watt and delivers 125 lumens — the punch of a 20 Watt incandescent from a fixture that sips power. Its 4000K neutral white keeps woods, quartz and stainless looking crisp and true, backed by a CRI above 80 and a power factor over +90. The 25° beam angle stays tight and controlled, and the fixture is fully dimmable so you can drop it to a night-time glow. Built to an IP67 protection rating with a brushed stainless trim, it laughs off splashes, steam and dust. It measures 50 mm / 1.967" across the trim and 29 mm / 1.142" deep, installs in a 35 mm / 1.378 inch cutout, and is rated for 25 000 hours with a 3 year warranty. SKU: LCPK2000R-1S-1W-4000K-BS.

Use it under kitchen cabinets and floating shelves, inside pantries and wardrobes, along staircases and hallways, in vanity millwork, in boat and RV interiors, or in retail display cases and reception desks where a full fixture would look bulky. The IP67 rating makes it a smart pick for Québec basements, garages, covered patios and mudrooms where humidity is part of life. Pair it with the matching LED puck light #2000 louver for glare-free stair lighting, or with the angled LED puck light #2000 scoop for niches. Prefer a warmer glow or colour? See the 3000K version and the RGB version. Order yours and light the details that make a project look finished.

Built small, built tough
The PK2000 platform is a miniature recessed fixture designed to be seen as light, not as hardware. This version wears a brushed stainless steel round trim with a one-side (1 Way) aperture, so the beam leaves the housing at an angle while the LED itself stays hidden from normal sightlines. With an overall trim diameter of 50 mm / 1.967", a body depth of 29 mm / 1.142" and a 27 mm / 1.063" dimension shown on the technical drawing, it fits into millwork, risers and panels that could never host a standard recessed pot light. Its IP67 protection rating means dust-tight construction and resistance to water ingress, which is exactly what you want in a bathroom vanity, a wet bar or an outdoor kitchen cabinet.

Light quality you can trust
At 125 lumens from a single Watt, this mini LED puck replaces a 20 Watt incandescent while running cool and quiet. The 4000K neutral white sits between cozy warm white and clinical daylight — ideal for prep counters, closets and display shelving where you need to judge colours honestly. A CRI above 80 keeps skin tones, fabrics and finishes natural, and the tight 25° projection angle concentrates the output where you aim it instead of spilling across the room. The power factor above +90 means efficient use of the current your driver supplies.

Technical specifications
Model: LCPK2000R-1S-1W-4000K-BS
Voltage: 12/24 V DC
Consumption: 1 Watt
Light intensity: 125 lumens
Incandescent equivalent: 20 Watts
Colour temperature: 4000K
CRI: >80
Projection angle: 25º
Power factor: +90
Protection rating: IP67
Trim: round, 1 side, brushed stainless
Dimensions: 50 mm / 1.967" x 29 mm / 1.142"
Cutout size: 35 mm / 1.378 inches
Dimmable: yes
Lifespan: 25 000 hours
Warranty: 3 years

Wiring and installation
This is a low-voltage DC fixture: it runs on 12/24 V DC and must be fed by a suitable DC power supply, sized so that the total wattage of all the pucks on the circuit stays within the supply's capacity — at 1 Watt each, a modest driver can carry a long run. Drill or rout a clean 35 mm cutout, run your low-voltage wire through the cabinet back or riser, connect, and seat the puck flush. Because it is dimmable, plan your dimming at the DC source with a compatible low-voltage dimmer so the whole run responds evenly. Always keep polarity consistent along the run and leave a small service loop behind each fixture.

Where it earns its keep, and documentation
Contractors use these pucks for stair riser lighting, hallway guide lights, under-cabinet task light in kitchens, toe-kick accents, closet and pantry interiors, boat and RV cabinetry, and hotel or restaurant millwork. Retailers love them inside display cases, jewellery cabinets and reception desks. Within the same family you can mix trims on one project: the LED puck #2000 persienne and the LED puck light #2000 louver add a shielded look for stairs, while the LED puck light #2000 scoop directs light forward in niches. The same 4000K neutral white is available across the range, and an RGB round 1 side version lets you add colour where you want drama. The full technical PDF for LCPK2000R-1S-1W-4000K-BS, with the technical drawing, cutout dimension and complete ordering guide, is available in the Documentation tab.
