LED PUCK LIGHT #2000 SQUARE 3000K BLACK

Name: LED PUCK LIGHT #2000 SQUARE 3000K BLACK
Brand: LEDCO
SKU: LCPK2000S-1W-3000K-BK
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000S-1W-3000K-BK

Brand: LEDCO

Small light, big difference: the LED PUCK LIGHT #2000 SQUARE in black with a warm 3000K glow is the little recessed puck that makes cabinets, shelves and stair nosings look custom-built. People call it a puck light, a mini recessed spot, a square downlight or simply a cabinet light — whatever the name, it's the discreet fixture you drop into a 35 mm hole to light exactly what you want to show off. Use it for display cabinet lighting, under-cabinet task light in the kitchen, a bathroom cabinet light, toe-kick and plinth accents, closet interiors, bar fronts, retail shelving and millwork. Its square black trim reads modern and graphic, disappearing into dark wood, matte cabinetry or metal panels while the light does all the talking.

This is a 12/24 V DC low-voltage puck that draws just 1 watt and delivers 125 lumens — roughly the punch of a 20 W incandescent, with a 25 000-hour lifespan and a power factor above 90. The 3000K colour temperature gives a warm, inviting white that flatters wood, stone and skin tones, and a CRI greater than 80 keeps colours honest on merchandise and countertops. The tight 25° beam angle creates a crisp pool of light instead of spill, which is exactly what you want over a display shelf. It is dimmable, so you can dial it from full task light down to evening mood. Outside dimensions are 50 mm / 1.967" by 29 mm / 1.142" with a 27 mm / 1.063" body and a cutout size of 35 mm / 1.378 inches. The IP67 protection rating means dust and water are not a problem, and it comes with a 3-year warranty. SKU: LCPK2000S-1W-3000K-BK.

Canadian kitchens, basements and condos love these: line a row inside glass-front cabinets, tuck them under floating shelves, mark stair risers, light a jewellery or wine display, or add soft footing light in a hallway. Because it runs on low voltage, it pairs with a 12 V or 24 V DC driver and works beautifully alongside the rest of the #2000 family — same body, different look. Prefer white trim? See the LED puck light #2000 square 3000K white or the LED puck light #2000 square RGB white for colour-changing accents. Need glare control on a stair or under a shelf edge? Add the LED puck #2000 louver in black, or the directional LED puck light #2000 round 1 side. Order yours and give your millwork the finish it deserves.

Built small, built to last

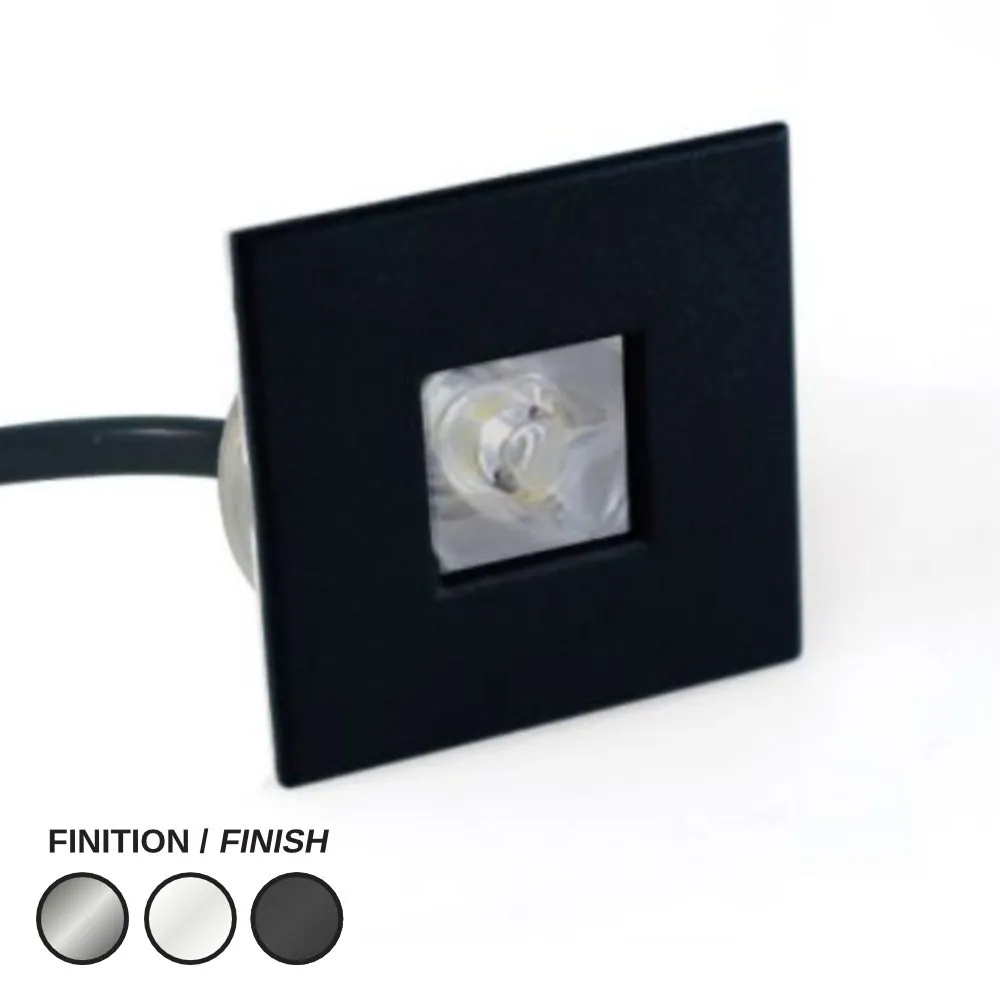

The #2000 square puck is a true recessed mini fixture: a compact body that slips into a 35 mm / 1.378 inches cutout and finishes flush with a square black trim measuring 50 mm / 1.967". Overall depth stays tight at 29 mm / 1.142", with a 27 mm / 1.063" body dimension, so it fits into cabinet tops, shelf undersides, soffits and thin millwork where a standard pot light would never go. The black finish is a favourite for dark cabinetry, walnut shelving, black quartz and contemporary bathrooms, because the trim reads as a small graphic detail rather than a bright ring on the ceiling.

Light quality that flatters what you light
At 3000K, this puck throws a warm white that makes wood grain, leather, brass and food look rich instead of clinical — the go-to temperature for kitchens, bars, display cases and bathroom vanities. A CRI greater than 80 keeps reds and skin tones natural, which matters when you're lighting merchandise, glassware or a makeup mirror zone. The 25° projection angle is deliberately narrow: instead of washing everything, it drops a defined accent beam onto a shelf, a bottle display or a countertop section. With 125 lumens from only 1 watt (equivalent to a 20 W incandescent), you can run a whole row of them and barely touch your load.

Technical specifications
SKU: LCPK2000S-1W-3000K-BK
Voltage: 12/24 V DC
Consumption: 1 Watt
Light intensity: 125 lumens
Incandescent equivalent: 20 Watts
Colour temperature: 3000K
CRI: greater than 80
Projection angle: 25°
Power factor: +90
Dimmable: Yes
Protection rating: IP67
Cutout size: 35 mm / 1.378 inches
Dimensions: 50 mm / 1.967" x 29 mm / 1.142", 27 mm / 1.063"
Lifespan: 25 000 hours
Trim: Square, black
Warranty: 3 years

Electrical, installation and dimming
This is a low-voltage DC puck designed to run at 12 or 24 V DC, so it needs a DC power supply sized for the total wattage of your run — at 1 W per light, a small driver covers a long row of pucks. Drill or route a 35 mm hole, feed the low-voltage leads, seat the puck and you're done; no bulky housing, no big cavity. Because it is dimmable, plan your dimming at the driver with a compatible low-voltage dimming system, and keep all pucks on a run at the same colour temperature for a consistent look. The IP67 rating gives real peace of mind in humid spots — bathroom vanities, shower niches surroundings, outdoor kitchen cabinetry, boat and RV interiors, walk-in coolers or a covered deck bar.

Where it works, what it pairs with, and documentation
Contractors use these for under-cabinet task lighting in kitchens, glass-shelf display cases in retail, wine cellars and liquor displays, stair-riser and hallway guidance lighting, closet and wardrobe interiors, reception desks, restaurant bar fronts and office millwork. Within the same #2000 platform you can mix trims on one project: the LED puck #2000 louver in black or the stainless LED puck light #2000 louver shield the source from eye level, the LED puck light #2000 round 1 side pushes light in one direction along a shelf or step, and the LED puck light #2000 square 4000K white gives a cooler, crisper white in white cabinetry. The full technical spec sheet for this model is in the Documentation tab, with the technical drawing, cutout size and the complete ordering guide for the #2000 range.
