LED PUCK #600S

Name: LED PUCK #600S
Brand: LEDCO
SKU: LCPK600S-12V-40K-BK
Price: 30.97 CAD
Availability: InStock

SKU: LCPK600S-12V-40K-BK

Brand: LEDCO

Tiny light, huge impact — this is the little fixture that turns a dark cabinet into a showpiece. The LED PUCK #600S (SKU LCPK600S-12V-40K-BK) is a square mini LED puck light, also called a recessed puck, cabinet spotlight or mini downlight, made to disappear into shelves, cabinets, millwork and display cases while throwing a clean, focused beam exactly where you want it. If you have been searching for LED puck lights, kitchen puck lights, display cabinet lighting or a discreet bathroom cabinet light, this square black trim is the piece that finally makes your cabinetry look custom.

Built for low-voltage work, it runs on DC 12V and draws only 1 Watt while delivering 85 lumens — enough to light a shelf, a bottle display or a countertop zone without heat or glare. The 4000K neutral white colour keeps whites crisp and materials true, and a CRI greater than 80 means your glassware, stone counters and merchandise actually look like themselves. The tight 15º beam angle gives a jewel-like pool of light instead of a washed-out blur, and yes, it is dimmable, so you can drop it to a soft glow in the evening. The body measures 50 x 50 x 27 mm with a 47 mm cutout, wears a black trim, carries an IP 21 rating, works at 40ºC at room temp 25ºC, and is rated for 25 000 hours with a 3 year warranty.

This puck earns its keep in kitchens under upper cabinets, in pantries, bookcases, wardrobes and vanities, and in retail jewellery cases, bakery displays, wine cabinets and reception millwork — residential and commercial alike. Canadian cabinetmakers love it because the shallow 27 mm depth and small cutout fit tight shelf boxes and soffits. It needs a 12V DC low-voltage supply, and if your project is wired for 24V or you prefer warm white or a different trim, look at the matching family: LED Puck #600S white 12V 4000K, LED Puck 600 Square 24V 40K black, LED Puck 600 Square 24V 30K black or LED Puck 600 Square 24V 40K stainless. Plan your layout, order the count you need, and light up every shelf.

Small format, serious construction

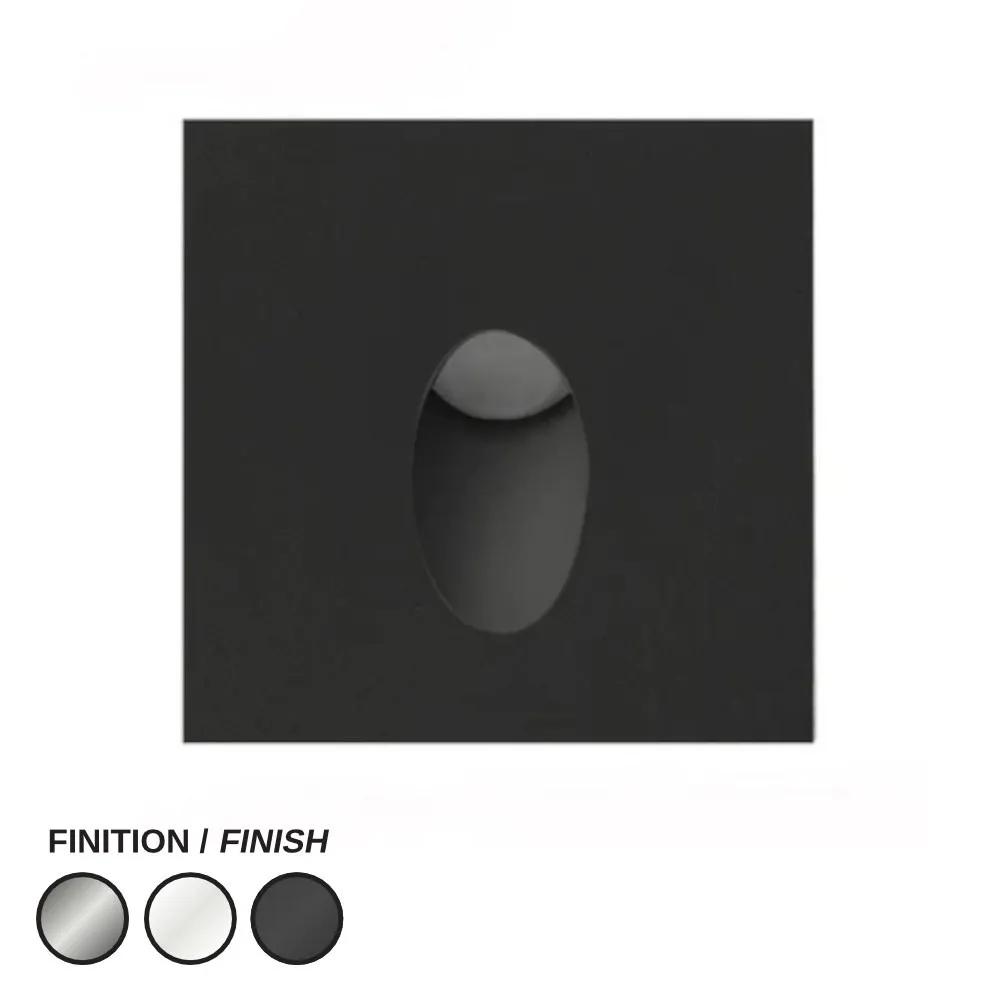

The LED PUCK #600S is a square recessed mini puck light with a black trim, measuring 50 x 50 x 27 mm and dropping into a 47 mm cutout. That shallow profile is the whole point: it hides inside shelf boxes, cabinet tops, toe kicks, soffits and display case headers where a standard recessed fixture simply will not fit. The square trim sits flush and reads as an intentional design detail in modern millwork, and the black finish keeps the aperture visually quiet against dark wood, matte laminates and blackened metal.

Light quality you can see
Each puck produces 85 lumens from just 1 Watt, in a 4000K neutral white tone that keeps whites clean and colours honest — ideal for kitchens, vanities and merchandise displays where warm yellow light would muddy things. A CRI greater than 80 renders skin tones, stone, glass and packaging faithfully. The 15º beam angle is deliberately narrow, creating a defined accent pool rather than flat spill, which is exactly what you want over a bottle, a sculpture, a watch case or a decorative shelf object. Space the pucks evenly along a shelf and the beams overlap into a rhythm of bright accents.

Technical specifications
SKU: LCPK600S-12V-40K-BK
Input voltage: DC 12V
LED power: 1 Watt
Lumen output: 85 LM
Colour temperature: 4000K neutral white
CRI: >80
Beam angle: 15º
Dimmable: Yes
IP class: IP 21
Dimensions: 50 x 50 x 27 mm
Cutout size: 47 mm
Trim colour: black
Working temp: 40ºC at room temp 25ºC
Lifespan: 25 000 hrs
Warranty: 3 years

Wiring, dimming and compatibility
This is a low-voltage 12V puck light, so it must be fed by a DC 12V supply sized for the total load of your run — at 1 Watt per puck, even a long shelf of accents stays a very modest load, which makes wire runs easy to hide behind cabinet backs and inside shelf edges. Because the fixture is dimmable, pair it with a dimming method suited to your 12V system so you can set a bright task level for prep work and a soft accent level for entertaining. Drill the 47 mm hole, feed the leads, seat the puck and finish the connections at a central junction point. The IP 21 rating means indoor, protected locations: keep it out of direct water contact and away from showers and exteriors. Within the same family you can mix voltages and finishes across different zones of a project — the 24V versions such as LED Puck 600 Square 24V 40K white and LED Puck 600 Square 24V 30K white share the same square format, while LED Puck #600S white 12V 4000K is the same fixture in a white trim for light-coloured cabinetry.

Where to use it, and documentation
Think under-cabinet accents in a kitchen renovation, glass shelving in a china cabinet, a lit niche in a bathroom vanity, closet shelving, a home bar, or a bookcase in a reading room. On the commercial side: jewellery and eyewear cases, bakery and deli displays, wine cellars, boutique shelving, hotel reception millwork and trade show booths — anywhere merchandise needs a crisp highlight. The technical PDF (LCPK600S-12V-40K-BK Spec Sheet) is in the Documentation tab with the dimensioned drawing, cutout size and the full specification table, so your electrician or cabinetmaker can confirm the 47 mm hole and the 27 mm depth before a single panel is drilled.
