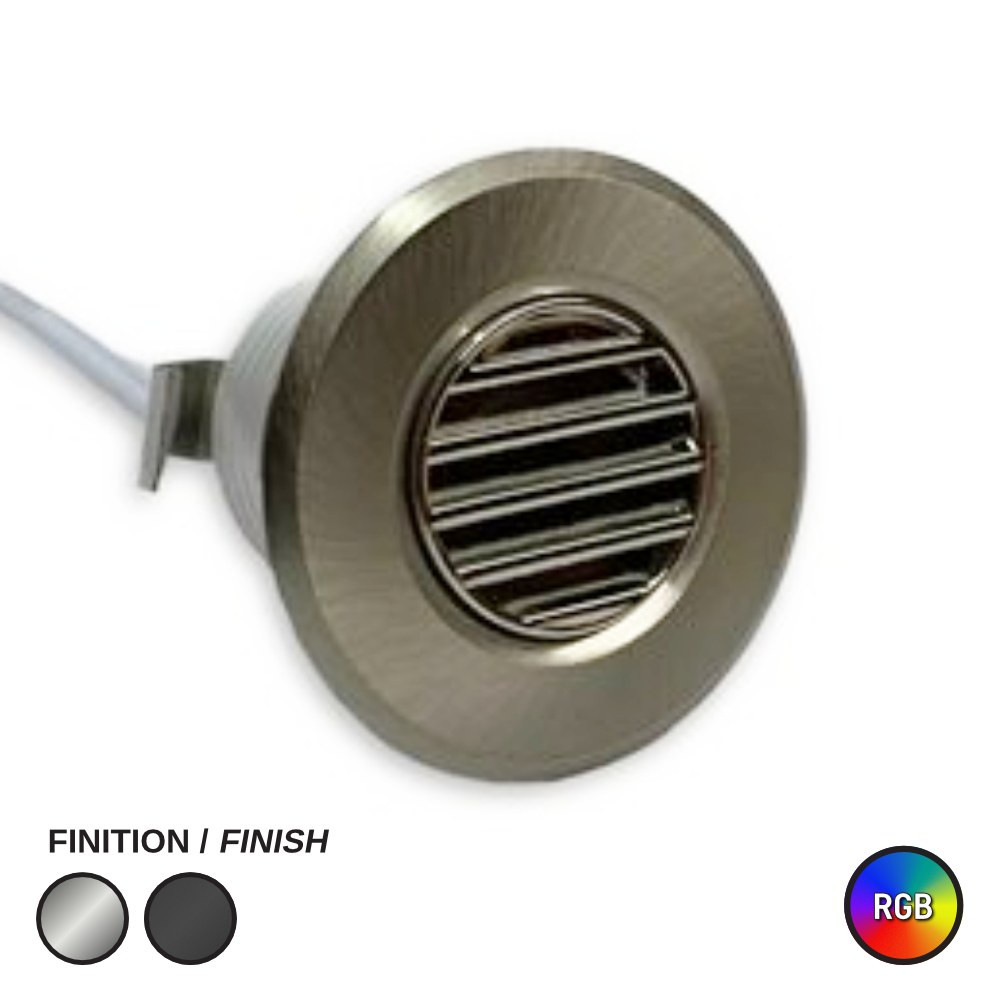

LED PUCK #2000 PERSIENNE - LCPK2000P-1W-RGB-BS

Name: LED PUCK #2000 PERSIENNE - LCPK2000P-1W-RGB-BS
Brand: LEDCO
SKU: LCPK2000P-1W-RGB-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000P-1W-RGB-BS

Brand: LEDCO

Tiny fixture, big effect: the LED PUCK #2000 LOUVER is the little recessed accent light that makes cabinets, stairs and display cases look professionally finished. People search for it as a led puck light, a mini recessed puck, a louvered mini spot or simply a cabinet lumière — and it is exactly what you want when a standard fixture is too big, too hot or too visible. Its louver trim (persienne) shields the diode so you see the light, not the source, which makes it a favourite for kitchen under cabinet lighting, toe-kicks, closets, bookcases, stair risers, boat and RV interiors, and retail display cabinet lighting. This version, SKU LCPK2000P-1W-RGB-BS, pairs the louver trim with a brushed stainless finish and RGB colour-changing light for accent work with real personality.

Behind that small face is a properly engineered little fixture. It runs on 12/24 V DC low voltage, draws only 1 watt and delivers 125 lumens with the punch of a 20-watt incandescent — so you can line up several of them on one low-voltage run without heat or wasted energy. The tight 25º beam angle gives a clean, controlled pool of light instead of spill, the CRI of over 80 keeps colours honest, and the power factor of +90 means efficient operation. It is dimmable, rated IP67 for damp and splash-prone spots, and rated for 25 000 hours of life, backed by a 3-year warranty. Installation is simple: a 35 mm cutout and it sits flush in wood, panel or stone.

Homeowners use it under upper cabinets and inside glass shelving, contractors bury it in stair stringers, soffits, vanities and millwork, and shops use it to light jewellery, wine racks and product displays. With its IP67 rating, it is equally at home in a bathroom cabinet, a mudroom bench or a covered outdoor kitchen — handy in Canadian homes where humidity swings with the seasons. Want the same louver body in a fixed white light instead of RGB? See the LED puck light #2000 louver 3000K brushed stainless or the LED puck #2000 louver 4000K brushed stainless, the black louver version LED puck #2000 louver RGB black, or the directional LED puck light #2000 round 1 side RGB. Plan your run, drill your holes and give your project the accent lighting it deserves.

Built small, built right
The PK2000 platform is a mini recessed LED puck light designed to disappear into millwork. This SKU, LCPK2000P-1W-RGB-BS, uses the louver (persienne) trim in a brushed stainless finish: the louver shields the diode from direct view so the eye sees illuminated surfaces rather than a bright dot, a real advantage under upper cabinets at eye level or in stair risers where glare is distracting. The same puck body is offered with round, square, 1-side and 2-side trims and in white, black and brushed stainless, so a single family can cover an entire project with one consistent look and one cutout size.

Light quality and colour
This model is the RGB version, so it produces colour-changing accent light rather than a single fixed white — ideal for display cases, bars, home theatres, feature niches and anywhere the mood should change with the evening. Colour rendering is rated at CRI greater than 80, and the 25º projection angle keeps the beam tight and intentional instead of washing the whole cabinet. Output is 125 lumens from a single 1 W LED, roughly the punch of a 20 W incandescent, which is why designers use these in groups of three, five or more along a run.

Technical specifications
SKU: LCPK2000P-1W-RGB-BS
Voltage: 12/24 V DC
Consumption: 1 Watt
Light intensity: 125 lumens
Incandescent equivalent: 20 Watts
Colour: RGB
Projection angle: 25º
CRI: >80
Power factor: +90
Cutout size: 35 mm
Protection rating: IP67
Dimmable: Yes
Lifespan: 25 000 hours
Trim: Louver, brushed stainless
Warranty: 3 years

Electrical and installation
Because it is a low-voltage 12/24 V DC fixture, it needs a DC driver or power supply sized for the total load of the run — at 1 W per puck, even a modest supply carries a long string. Keep polarity consistent, run your low-voltage wire inside the cabinet back or stair stringer before final assembly, and drill a clean 35 mm hole where each puck lands; the fixture then sits flush with the surface. The puck is dimmable, so pair it with a DC-compatible dimmer or controller suited to your driver; for the RGB colour function you will need an RGB controller matched to the same voltage. The IP67 rating gives real peace of mind in vanities, shower niches, kitchen splash zones, docks, boats and outdoor kitchens.

Applications, matching products and documentation
Concrete examples: a row under upper kitchen cabinets for counter tasks, pucks inside a glass display cabinet in a boutique, accents in a wine cellar, markers in stair risers for a basement renovation, or colour accents behind a bar or media wall. To keep one look through a whole job, mix this louver model with the white-light louver versions in brushed stainless — LED puck light #2000 louver 3000K and LED puck #2000 louver 4000K — or in black with the LED puck #2000 louver 3000K black. For angled, directional light from the same 35 mm cutout, add the LED puck light #2000 round 1 side. The full technical PDF with the dimensional drawing and the complete ordering guide is in the Documentation tab.
