LED PUCK LIGHT #2000 SQUARE 4000K BLACK

Name: LED PUCK LIGHT #2000 SQUARE 4000K BLACK
Brand: LEDCO
SKU: LCPK2000S-1W-4000K-BK
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000S-1W-4000K-BK

Brand: LEDCO

Small light, big effect: the LED PUCK LIGHT #2000 SQUARE is the little recessed accent light that makes cabinets, shelves and stairways look finished. People call these LED puck lights, mini recessed pucks, cabinet spots or simply square downlights — whatever name you use, this is the low-voltage fixture designed to be dropped into millwork, toe-kicks, closet ceilings, display cases and bathroom vanities. Its square black trim reads clean and modern next to matte black hardware and dark cabinetry, and the tiny beam does exactly what an accent light should do: highlight a countertop, a bottle display, a stair nosing or a shelf of glassware without lighting up the whole room. Model LCPK2000S-1W-4000K-BK.

It runs on 12/24 V DC, draws only 1 watt and delivers 125 lumens — roughly the punch of a 20 watt incandescent, from a fixture you can hold on a fingertip. The 4000K neutral white is the sweet spot for kitchens, bathrooms and retail displays: crisp, clean, never blue, and with a CRI >80 it keeps wood grain, stone and merchandise looking true. The 25º beam angle gives you a tight, controlled pool of light instead of glare, the power factor is +90, and it is dimmable when paired with a compatible low-voltage driver and dimmer. The fixture measures 50 mm / 1.967", the body is 29 mm / 1.142" and the housing depth is 27 mm / 1.063", fitting a 35 mm / 1.378" cutout. Rated IP67 and built for 25 000 hours, it comes with a 3 year warranty.

This little square earns its keep in kitchen under-cabinet lighting, bathroom cabinet and mirror niches, walk-in closets, stair risers, bar backs, wine cellars, reception desks and retail display cabinet lighting — anywhere a full-size pot light would be overkill. The IP67 rating means moisture near a sink, a shower niche or a covered outdoor soffit is not a problem, a real advantage in Canadian homes where humidity swings hard between seasons. Running on low voltage, it is also the safe choice inside furniture and millwork. Need a different look? The same puck comes in LED puck light #2000 square in white or LED puck light #2000 square in RGB, and the LED puck #2000 louver in black adds a shielded trim. Plan your layout, order your quantity and light the details.

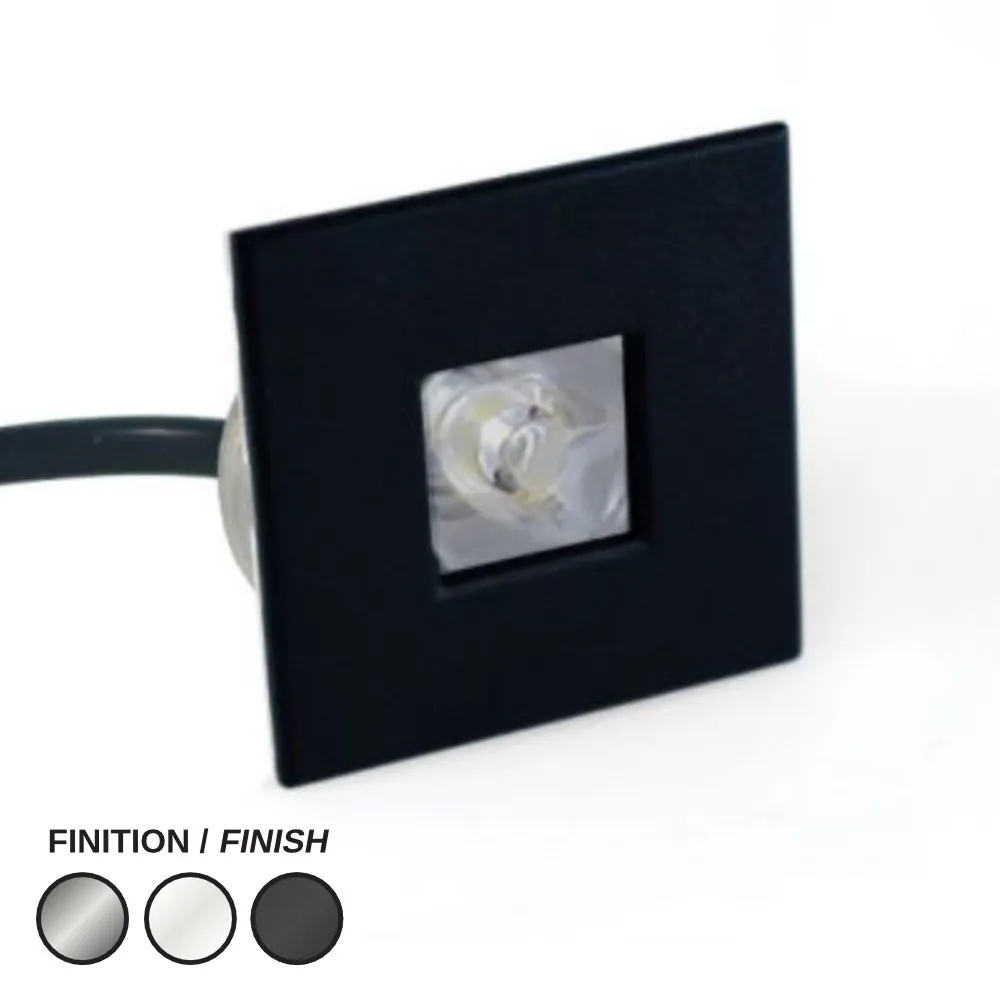

Built to disappear into the millwork
The #2000 series puck is engineered as a true mini recessed light, not a surface button. The fixture face measures 50 mm / 1.967", the body 29 mm / 1.142" and the housing 27 mm / 1.063" deep, so it tucks into a cabinet gable, a shelf, a soffit or a stair stringer with very little material to sacrifice. The square black trim sits flush and pairs naturally with matte black faucets, pulls and framed shower glass. Because the whole assembly is compact, it is a favourite of cabinetmakers and finishing carpenters who need light exactly where the eye lands.

Light quality that flatters what you are showing
At 125 lumens from a single 1 watt LED, this is accent lighting done right — the equivalent output of a 20 watt incandescent, without the heat and without the bulb changes. The 25º projection angle keeps the beam tight and intentional: a clean circle on a countertop, a highlight on a bottle, a wash down a stair nosing. The 4000K neutral white colour temperature is the go-to for kitchens, vanities and retail because it renders whites truly white, and the CRI >80 keeps skin tones, wood and product colours honest. The same puck exists in 3000K and RGB versions if a warmer or colour-changing look suits the project better.

Technical specifications
Model: LCPK2000S-1W-4000K-BK
Voltage: 12/24 V DC
Consumption: 1 Watt
Light intensity: 125 Lumens
Incandescent equivalent: 20 Watts
Colour temperature: 4000K
CRI: >80
Projection angle: 25º
Power factor: +90
Cutout size: 35 mm / 1.378 inches
Protection rating: IP67
Dimmable: Yes
Lifespan: 25 000 Hours
Trim: Square, black
Warranty: 3 years

Wiring, dimming and installation
Drill or hole-saw a 35 mm / 1.378" opening, feed the leads, seat the puck and you are done. It operates on 12/24 V DC, so it must be fed by a low-voltage LED driver or power supply sized for the total load of the run — at 1 watt per puck you can chain a generous number of them on a modest driver, which is why designers use them in long rows under upper cabinets or along a shelf. The fixture is dimmable, so pair it with a compatible dimmable driver and dimmer to take a bright task level down to a soft evening glow. The IP67 rating and the +90 power factor mean it tolerates damp, splash-prone spots and behaves well on the circuit. Always follow local Canadian electrical code and have the line-voltage side of the driver connected by a qualified electrician.

Where it works, and what goes with it
Think kitchen under-cabinet and puck lighting, bathroom cabinet and vanity niches, closets, pantries, stair treads, bar and wine displays, jewellery and retail display cabinet lighting, reception millwork, and covered exterior soffits. In restaurants and boutiques, a row of these draws the eye to product instead of flooding the space. The full family lets you keep one look throughout: LED puck light #2000 square 3000K white for warmer rooms, LED puck light #2000 square RGB for colour scenes, the LED puck #2000 louver stainless for a shielded, glare-controlled trim, or the LED puck light #2000 round 1 side for directional accents. The complete technical PDF spec sheet for this SKU is in the Documentation tab — download it for the drawing, cutout and full specification list before you order.

Technical Files
