LED PUCK LIGHT #300

Name: LED PUCK LIGHT #300
Brand: LEDCO
SKU: LCPK300-24V-CCT-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK300-24V-CCT-BS

Brand: LEDCO

Say goodbye to dark countertops and gloomy shelves. The LED PUCK LIGHT #300 in brushed aluminum is the little round fixture that does the big job — the classic LED puck light people look for when they want clean, glare-free light under kitchen cabinets, inside display cases, in closets, bookcases, bathroom vanities and pantry shelving. Call it a puck, a round mini downlight, a cabinet light or under cabinet lighting: it recesses flush into the underside of a cabinet or sits on the surface with the included-style spacer, so you can light almost anything without a visible fixture stealing the show.

This one is a 3W low-voltage puck running on 24V, with a wide 120° beam angle that spreads light evenly across a counter instead of leaving hot spots. Colour is yours to choose right on the puck: a toggle switch on the front sets 3 selectable colour temperatures — 2700K, 3000K or 4000K — delivering 210lm at 2700K, 225lm at 3000K and 250lm at 4000K. With a CRI above 90, wood grain, backsplash tile, food and merchandise all look true to life, and the puck is dimmable so you can drop it to a soft glow at night. It measures 80 mm (3.150") across and 22 mm / 23 mm (0.867" / 0.906") deep, weighs only 70g, fits a 60mm (2.362 inches) cutout, and is backed by a 3 year warranty.

Kitchens, bathrooms, walk-in closets, home offices, retail display cabinets, jewellery cases, bar shelving, reception millwork — anywhere a Canadian homeowner, cabinetmaker or contractor needs discreet task light, this puck earns its spot. SKU LCPK300-24V-CCT-BS comes in a brushed aluminum face that blends with stainless appliances and modern hardware; the same puck is also offered as LED puck 300 24V CCT white and LED puck 300 24V CCT black if your millwork calls for a different finish. Plan your run, pick your colour temperature, and light the space the way it deserves.

Built small, finished right

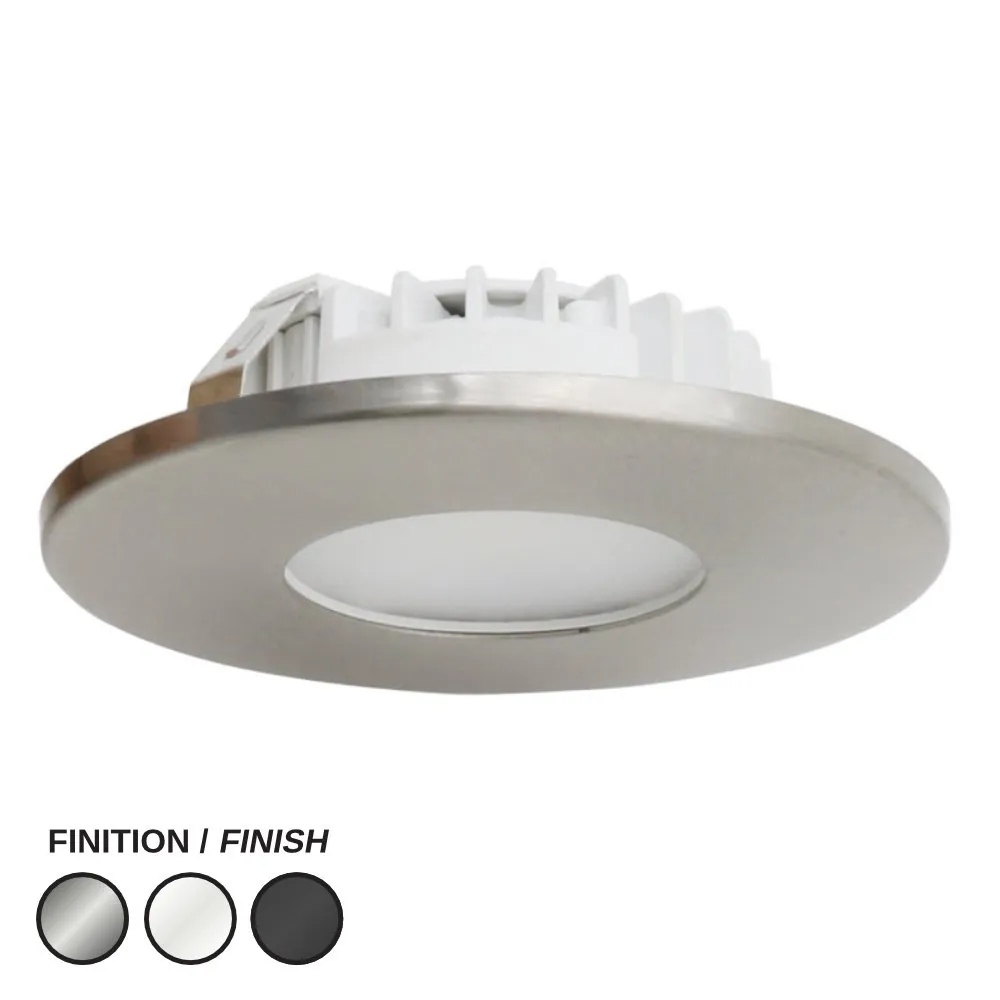

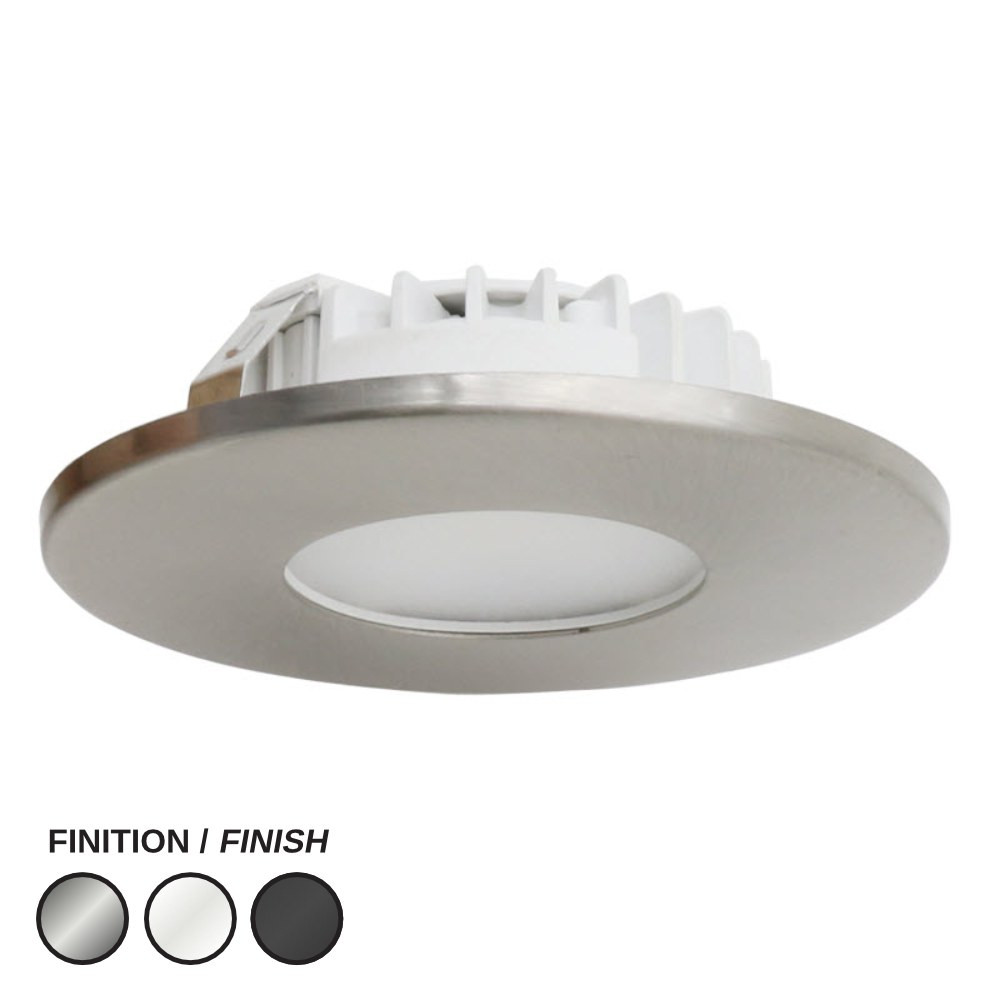

The PK300 is a compact round puck with a magnetic face trim, which means the visible ring simply snaps on and can be swapped or removed without tools when you need access. The brushed aluminum face of SKU LCPK300-24V-CCT-BS sits nicely against stainless steel appliances, aluminum profiles and brushed hardware, while the black and white versions cover darker or painted cabinetry. At 80 mm (3.150") in diameter, 22 mm / 23 mm (0.867" / 0.906") deep and only 70g, this mini LED puck disappears into the underside of a cabinet instead of hanging below it.

Light quality you can actually see
Two things make a puck light look expensive: colour rendering and beam spread. Here you get a CRI greater than 90, so countertops, cutting boards, cosmetics and retail merchandise keep their true colours, and a 120° beam angle that washes the work surface evenly rather than punching a bright circle into it. The 3-position toggle switch on the front of the puck gives you 3 selectable colour temperatures: 2700K for a traditional warm look, 3000K for the most common residential white, and 4000K when you want a crisper, more neutral task light. Output follows the setting — 210lm at 2700K, 225lm at 3000K, 250lm at 4000K.

Technical specifications
Model: LCPK300-24V-CCT-BS
Power: 3W
Input voltage: 24V
Lumens @ 2700K: 210lm
Lumens @ 3000K: 225lm
Lumens @ 4000K: 250lm
CRI: >90
Beam angle: 120°
Dimmable: Yes
Diameter: 80 mm (3.150")
Depth: 22 mm / 23 mm (0.867" / 0.906")
Cutout size: 60mm (2.362 inches)
Recessed mount: Yes
Surface mount: Yes (with spacer)
Weight: 70g
Warranty: 3 years
Finishes available: White, Black, Brushed Aluminum

Installation and electrical
This is a 24V low-voltage fixture, so it needs a 24V driver or power supply sized for the total wattage of every puck on the run — count 3W per puck and leave yourself headroom. For recessed mounting, bore a 60mm (2.362 inches) hole in the cabinet bottom and drop the puck in; where the panel is too thin or you simply don't want to drill, use the surface mount spacer and screw it on instead. Set each puck's colour temperature with the front toggle before you close everything up, and keep every puck on the same setting for a uniform look. Because the puck is dimmable, you can pair the circuit with a dimming-compatible 24V driver and control the whole under-cabinet run from one dimmer.

Where it works, and what pairs with it
Under kitchen uppers for under cabinet lighting, inside glass display cases and jewellery counters, in bathroom vanity cabinets and medicine cabinets, along closet shelving, in bookcases, bar backs, reception desks and store fixtures — the PK300 handles residential and commercial millwork alike. Mixing finishes across a project is easy since the same puck is offered as LED puck 300 24V CCT white for painted or light cabinetry and LED puck 300 24V CCT black for dark wood and contemporary interiors. The full technical PDF, with the drawing, the cutout dimension and the colour temperature settings, is available in the Documentation tab — worth a look before you drill.
