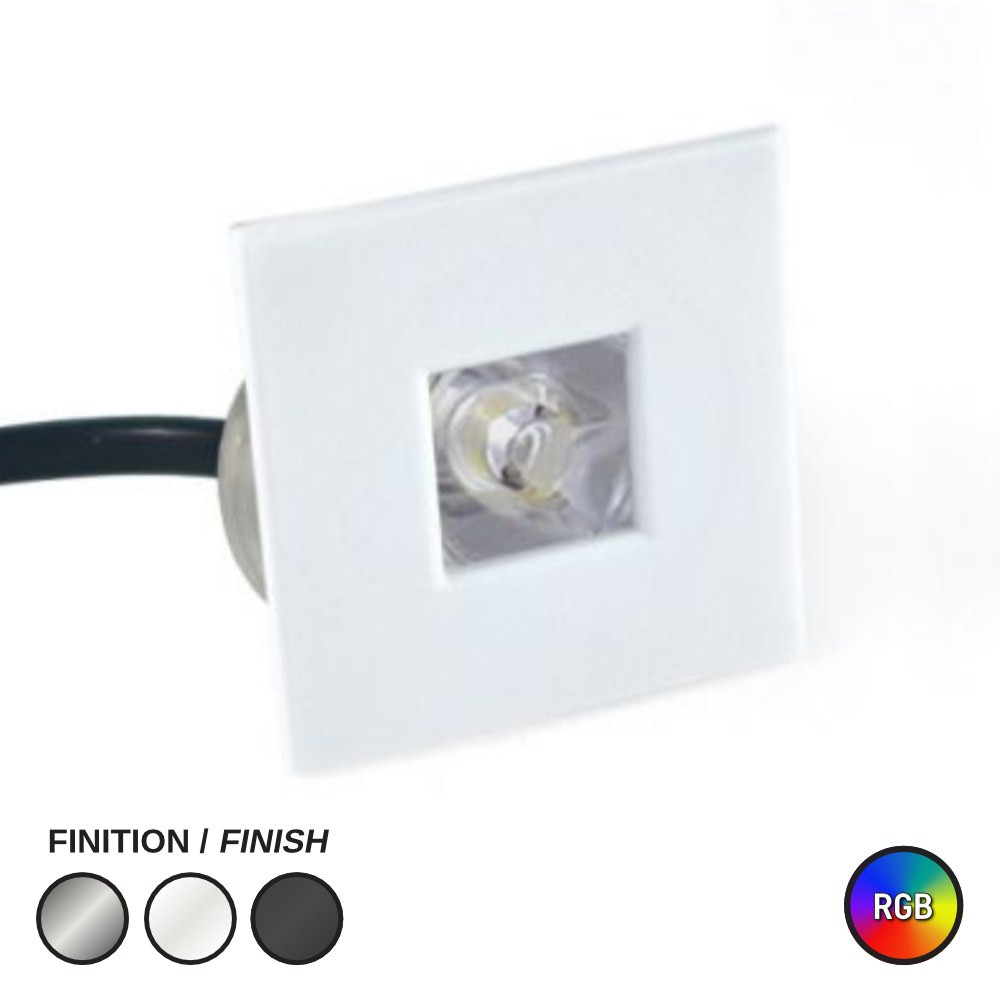

LED PUCK LIGHT #2000 SQUARE RGB WHITE

Name: LED PUCK LIGHT #2000 SQUARE RGB WHITE
Brand: LEDCO
SKU: LCPK2000S-1W-RGB-WH
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000S-1W-RGB-WH

Brand: LEDCO

Tiny light, huge impact. The LED PUCK LIGHT #2000 SQUARE (SKU LCPK2000S-1W-RGB-WH) is the little recessed fixture people search for as a LED puck light, a mini square downlight, a cabinet spot or simply a "square trim" accent light. It drops into a small hole in wood, MDF, drywall, stone or metal and disappears, leaving nothing but a crisp square of light. This version is the RGB model in a white trim, so you can dial the colour to match a mood, a brand, a holiday or a display — and you can also pick the same square puck in a fixed warm or neutral white if you prefer a classic look. Cabinetmakers, kitchen designers, contractors and DIY renovators use it for under cabinet lighting, toe-kick and stair accents, closets, shelving, bars, display cases and bathroom vanity millwork.

Behind that small square bezel is a real spec sheet. It runs on 12/24 V DC low voltage, draws only 1 W and delivers 125 lumens — roughly the punch of a 20 W incandescent, with a tight 25° beam that makes counters, bottles and merchandise pop instead of washing everything flat. Colour rendering is rated at CRI >80, so wood grain, skin tones and product colours stay honest, and the power factor of +90 keeps the electrical side clean. It is dimmable, rated IP67 — a serious seal for a puck this size, which means damp and splash-prone spots are fair game — and it is rated for 25 000 hours of life, backed by a 3-year warranty. The fixture measures 50 mm at the bezel with a 29 mm depth, a 27 mm body and a 35 mm cutout. Colour options across the series include 3000K, 4000K and RGB; this one is RGB.

Where does it shine? Kitchen islands and upper cabinets, pantry shelving, walk-in closets, wine cellars, staircases, boat and RV interiors, retail display cabinets, jewellery cases, reception desks and restaurant bars. In Canadian homes and shops, its low-voltage design makes it easy to run off a compact driver tucked inside the cabinet, and the RGB output lets a boutique change its display colour in seconds. Want a different look on the same cutout? Compare it with the LED puck light #2000 square 3000K, the LED puck light #2000 square 4000K, or the shielded LED puck light #2000 louver. Add it to your project and light up the details.

Built small, built to last
The #2000 puck is a miniature recessed luminaire designed to be seen as little as possible. The square bezel sits flush against the surface while the body slips into a simple 35 mm hole, so a cabinet door, a shelf edge, a toe-kick panel or a stair riser keeps its clean lines. With a 50 mm bezel, a 29 mm depth and a 27 mm body, it fits into millwork and thin panels where a standard recessed pot light would never go. The IP67 protection rating is the part installers appreciate most: this little LED puck light is sealed against dust and immersion, which makes it comfortable in bathrooms, near sinks, in showers' surrounding millwork, in outdoor kitchens and in boat or RV cabinetry.

Light quality and colour
This SKU is the RGB version: the colour of the light is adjustable through your RGB controller, from deep blue to warm amber tones, which is exactly what display cases, bars, home theatres and feature shelving need. Output is 125 lumens for 1 W of consumption, an incandescent equivalent of 20 W, and the 25° projection angle keeps the beam narrow and intentional — a pool of light on a counter, a bottle, a sculpture, a stair tread. Colour rendering of CRI >80 means finishes and merchandise look true. The same #2000 platform is also offered in 3000K and 4000K if a fixed white is a better fit for the room.

Technical specifications
SKU: LCPK2000S-1W-RGB-WH
Voltage: 12/24 V DC
Consumption: 1 W
Light intensity: 125 lumens
Incandescent equivalent: 20 W
Colour: RGB
Projection angle: 25º
CRI: >80
Power factor: +90
Protection rating: IP67
Dimmable: Yes
Lifespan: 25 000 hours
Bezel: 50 mm
Depth: 29 mm
Body: 27 mm
Cutout: 35 mm
Trim: Square, white
Warranty: 3 years

Installation and electrical
Because it is a low-voltage fixture (12/24 V DC), planning starts with the driver. Add up the wattage of every puck on the run — at 1 W each, a long row of them stays very modest — and choose a DC driver with headroom, then place it where it stays ventilated and accessible: inside a cabinet gable, above a bulkhead or in a service cavity. Drill the 35 mm cutout, check that you have at least the body depth behind the panel, feed the leads back to the driver and RGB controller, and confirm polarity before powering up. The fixture is dimmable, so pair it with a DC dimming method compatible with your driver and controller; for RGB, the controller manages both colour and level. Keep low-voltage runs short and use adequate wire gauge to avoid voltage drop at the end of a long shelf.

Applications and documentation
Concrete examples: a row of squares under upper kitchen cabinets to light the countertop, colour-changing accents inside a glass display cabinet in a boutique, discreet markers along basement stairs, a soft glow in a bathroom vanity or a walk-in closet, and RGB uplighting inside a bar or restaurant back-bar. Mixing trims on one project is easy since the cutout stays the same across the family — you can combine this square puck with the round-and-shielded versions such as the LED puck #2000 persienne or the LED puck light #2000 round 1 side, and match the white finish with the 3000K square puck where fixed warm white is wanted. The complete technical PDF for this model is available in the Documentation tab for dimensions, cutout and specifications.
