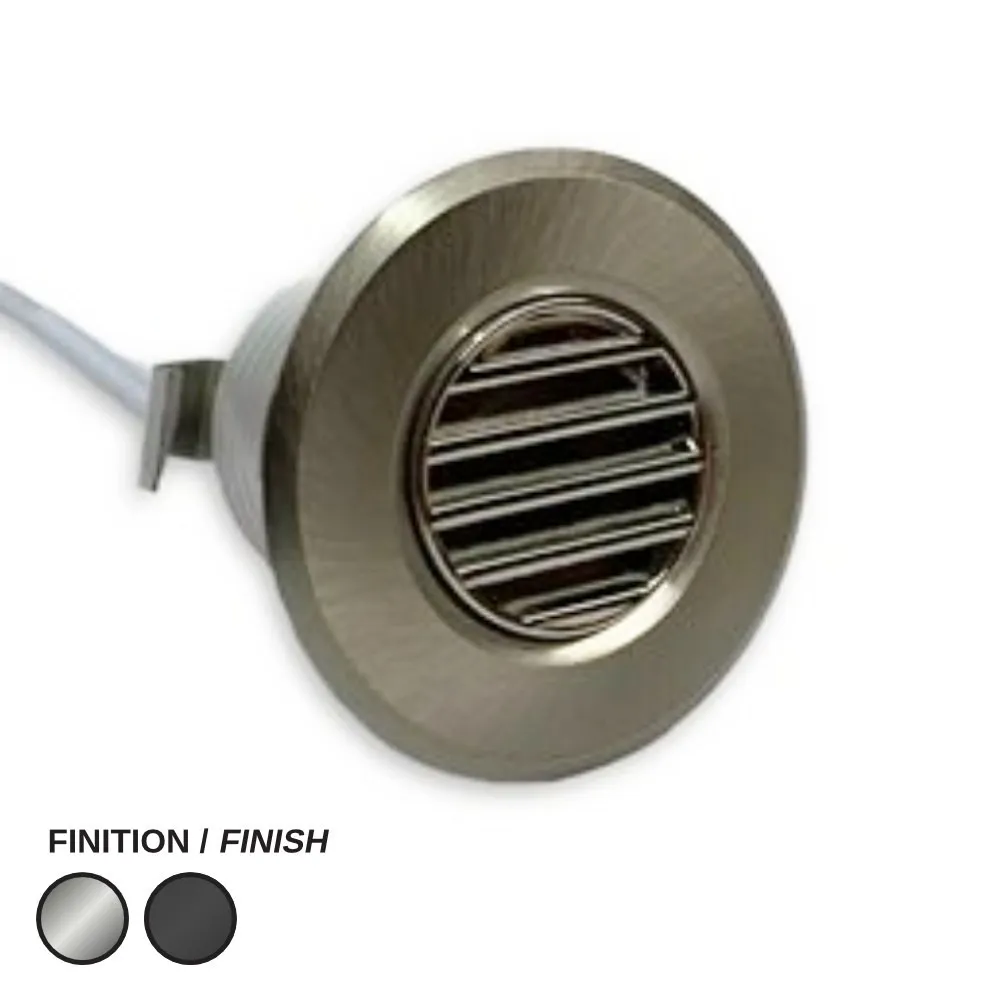

Built small, built to lastThe PK2000 platform is about discretion. The visible face measures 50 mm / 1.967" across and the body stands 29 mm / 1.142" tall, with 27 mm / 1.063" of insertion depth behind the surface, so it disappears into millwork, cabinet bottoms, stair stringers and display boxes. The louver trim — the "persienne" version — sits over the lens and blocks the direct view of the diode, which is exactly what you want when the fixture is mounted at eye level or above a glossy countertop. This SKU comes in the brushed stainless finish, a neutral tone that blends with appliances, hardware and aluminum profiles.
Light quality you can trustAt
4000K you get neutral white: cleaner and more alert than warm white, without the blue edge of a daylight lamp. It is the temperature most people choose for kitchen counters, work benches, bathroom cabinets and retail shelving where accuracy matters. With a CRI above 80, colours stay honest — whites read white, wood stays warm, product packaging looks like it does in the showroom. The 25º beam is deliberately narrow: it lays a defined pool of light on the surface below instead of spilling everywhere, so a row of pucks gives you rhythm and contrast rather than a flat wash.
Technical specificationsSKU: LCPK2000P-1W-4000K-BS
Voltage: 12/24 V DC
Consumption: 1 W
Light intensity: 125 lumens
Incandescent equivalent: 20 W
Colour temperature: 4000K
CRI: >80
Projection angle: 25º
Power factor: +90
Dimmable: Yes
Protection rating: IP67
Lifespan: 25 000 hours
Cutout size: 35 mm / 1.378 inches
Dimensions: 50 mm / 1.967" x 29 mm / 1.142", 27 mm / 1.063"
Trim: louver, brushed stainless
Warranty: 3 years
Wiring and installationThis is a
low voltage puck light: it runs on 12/24 V DC and must be fed by a compatible DC driver or transformer sized for the total wattage of the run — at 1 W per unit, you can chain a generous number of pucks on a single supply. Drill a 35 mm / 1.378 inches hole, run the leads through, make your connections in an accessible junction, and press the fixture home. Keep the driver reachable for service, respect the polarity of the DC feed, and if you want scene control, wire through a dimmer that is rated for your low voltage driver — the fixture itself is dimmable. Because of its
IP67 rating, it is at ease in damp settings such as bathroom vanities, shower niches, steam-prone kitchens and covered outdoor millwork.
Applications, family and documentationThink under-cabinet task lighting in a kitchen renovation, shelf lighting in a boutique, step lights along a basement staircase, accent lighting in a jewellery or bakery display, marker lights in a hallway or a hotel corridor. Contractors like that one cutout serves the whole PK2000 range: round, square, 1 side, 2 side and louver trims in stainless, white or black, in 3000K, 4000K or RGB. Complete or vary your layout with the
louver puck in 3000K black, the
RGB louver puck in black, or the directional
round 1 side puck in 3000K. The full technical PDF for this model is in the Documentation tab — drawing, cutout and specs included — so your installer has everything before the first hole is drilled.
