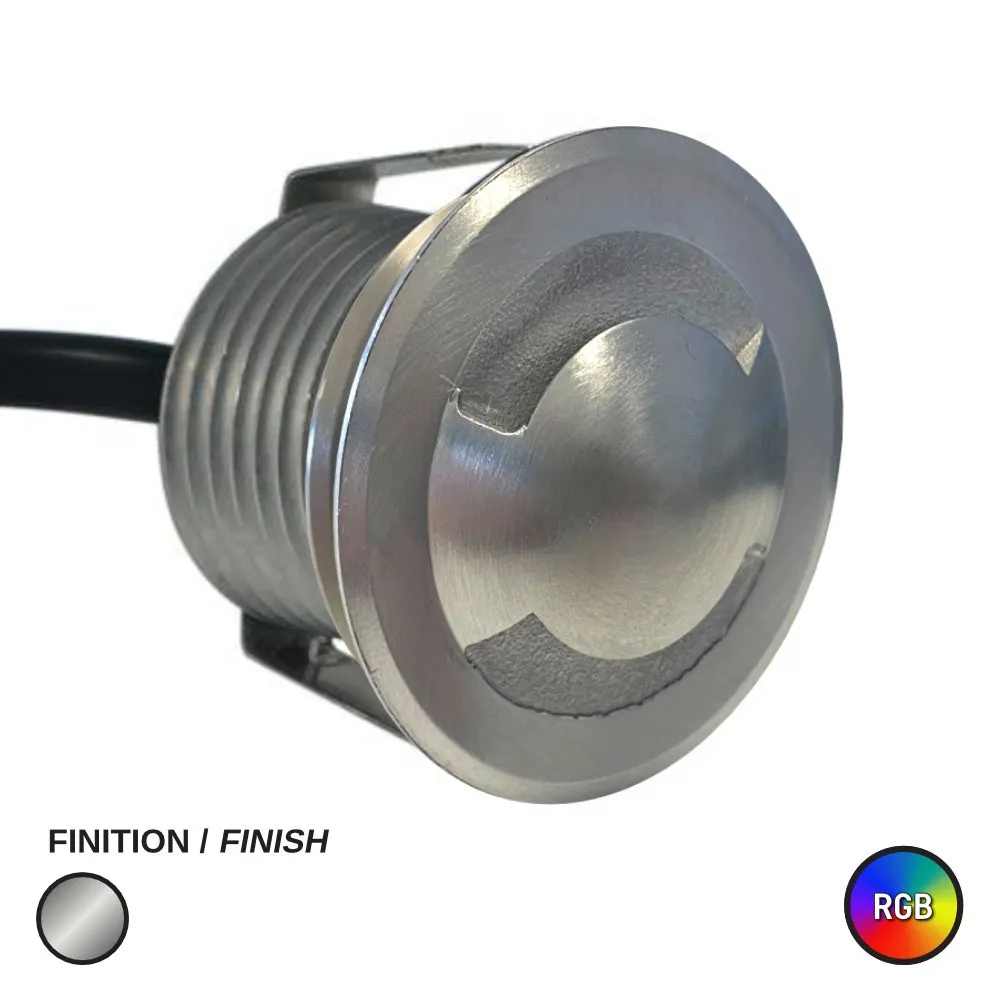

LED PUCK LIGHT #2000 ROUND 2 SIDES RGB BRUSHED STEEL

Name: LED PUCK LIGHT #2000 ROUND 2 SIDES RGB BRUSHED STEEL
Brand: LEDCO
SKU: LCPK2000R-2S-1W-RGB-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000R-2S-1W-RGB-BS

Brand: LEDCO

Tiny fixture, big personality: the LED puck light #2000 Round 2 Sides turns forgotten corners into design details. This recessed round LED light is the two-way (2 sides) stainless trim version of the PK2000 family, a mini puck that drops into cabinetry, stair risers, toe-kicks, decks and walls to throw light in two directions at once. If you have been searching for led puck lights, kitchen lights puck, a discreet bathroom cabinet light or a small accent marker for a walkway, this is the low-voltage workhorse that does it without stealing the show. Its RGB colour engine also makes it a favourite for feature walls, bars, home theatres and display cases where the mood needs to change on demand.

Here is what is packed into this little disc: 12/24 V DC low-voltage operation, only 1 watt of consumption for the equivalent of a 20-watt incandescent, and 125 lumens of output through a tight 25º projection angle for crisp, controlled pools of light. Colour rendering is CRI >80, so wood, tile and paint keep their true tone, and the power factor of +90 keeps the electrical side clean. The fixture is dimmable, rated IP67 against dust and water, and built to last 25 000 hours, backed by a 3 year warranty. This SKU, LCPK2000R-2S-1W-RGB-BS, is the round brushed stainless trim with a 2-side output in RGB colour.

Put it to work in kitchen cabinets and pantries, under floating shelves, along stair risers and hallway baseboards, in closets, wine rooms, retail display fixtures, restaurant millwork and reception desks. Because of its IP67 rating it also suits covered patios, deck stairs and pool-house steps that face real Canadian weather. Need a different look on the same job? Pair it with the LED puck light #2000 round 1 side for single-direction runs, the LED puck light #2000 louver for glare-controlled steps, or the LED puck light #2000 scoop for a directional wash. Add it to your cart and light the details.

Built small, built right
The PK2000 platform was designed for millwork and masonry alike: a compact recessed puck with a brushed stainless round trim that reads as a deliberate design element rather than a light you tried to hide. The 2-side trim pushes light out in two opposing directions, which is exactly what you want on a stair riser, a toe-kick or a low wall where a downward beam alone would leave dark gaps. With an IP67 protection rating, the housing is sealed against dust and water ingress, so the same fixture can serve an indoor pantry and an outdoor step without a second product on the order.

Light quality and colour
This SKU is the RGB version, so the light output is colour-changing rather than fixed white — ideal for bars, theatres, display cases, feature walls and holiday accents. Output is 125 lumens from a single 1 watt LED, equivalent to a 20-watt incandescent source, with a 25º projection angle that keeps the beam tight and intentional instead of spilling across the whole surface. Colour rendering sits at CRI >80, and the fixture is dimmable so you can tune the level once the finishes are in.

Technical specifications
SKU: LCPK2000R-2S-1W-RGB-BS
Series: LED PUCK PK2000 / LCPK2000
Voltage: 12/24 V DC
Consumption: 1 Watt
Incandescent equivalent: 20 Watts
Light intensity: 125 lumens
Colour: RGB
Projection angle: 25º
CRI: >80
Power factor: +90
Protection rating: IP67
Dimmable: Yes
Lifespan: 25 000 hours
Trim: Round, 2 sides, brushed stainless
Warranty: 3 years

Wiring and installation
This is a low-voltage puck light running on 12/24 V DC, so it needs a suitable DC power supply sized for the total load of the run; at 1 watt per fixture, a single driver can feed a generous number of pucks along a staircase or a cabinet bank. Drill the recess, run your low-voltage cable through the cavity, connect and seat the puck — the round trim covers the edge of the opening for a clean finish. Respect polarity on DC, keep the driver accessible for service, and follow the Canadian Electrical Code and local requirements for low-voltage wiring, especially on exterior and stair applications. Because the fixture is dimmable, plan your dimming method around the driver you choose.

Applications and documentation
Contractors use these pucks for stair riser lighting in condos and chalets, toe-kick and under-shelf accents in kitchens, backlit bar fronts and restaurant millwork, closet and pantry lighting, retail display cases, headboard niches and vanity surrounds. Mixing trims on one project keeps the look coherent: use the LED puck light #2000 round 1 side where a single direction is enough, the LED puck #2000 persienne or the LED puck light #2000 louver when you want to shield the source from sightlines, and the LED puck light #2000 scoop for a directional RGB wash. The full technical PDF for LCPK2000R-2S-1W-RGB-BS, with the technical drawing and the complete trim and colour ordering guide, is in the Documentation tab.
