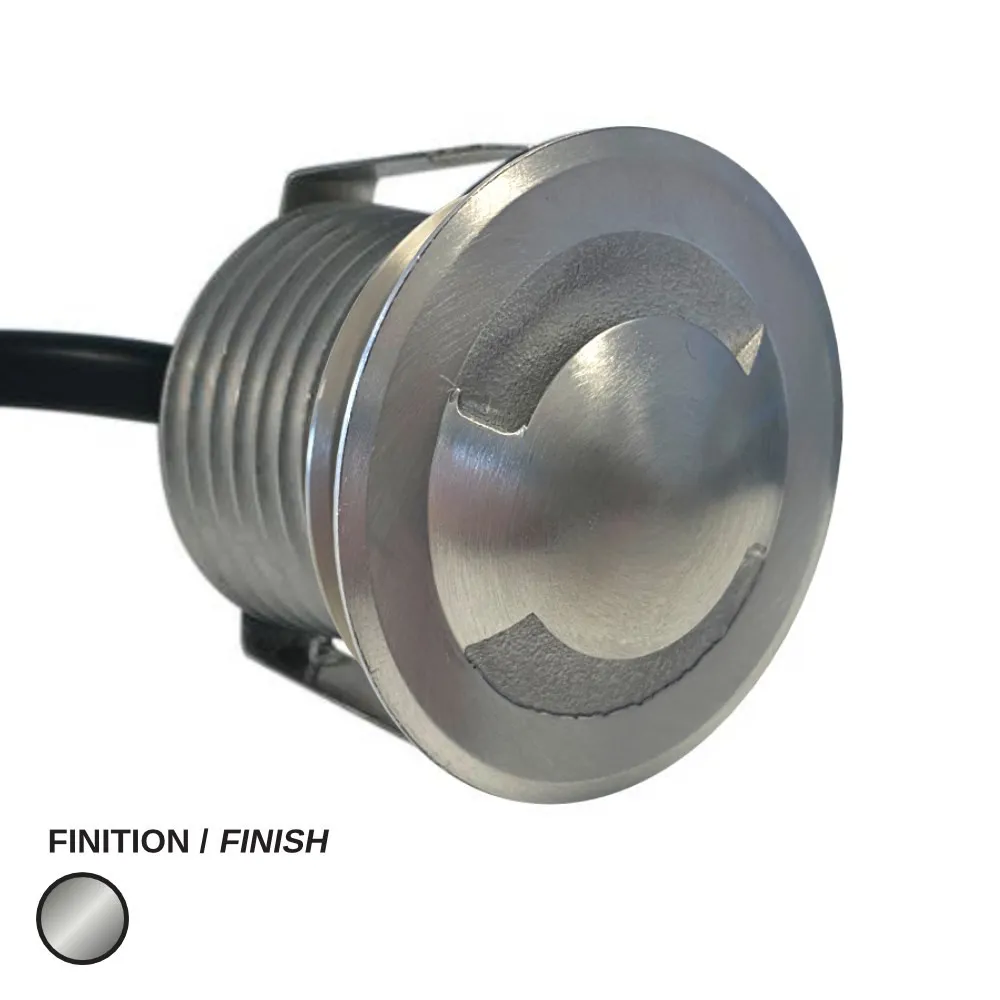

LED PUCK LIGHT #2000 ROUND 2 SIDES 4000K BRUSHED STEEL

Name: LED PUCK LIGHT #2000 ROUND 2 SIDES 4000K BRUSHED STEEL
Brand: LEDCO
SKU: LCPK2000R-2S-1W-4000K-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000R-2S-1W-4000K-BS

Brand: LEDCO

Some of the best lighting is the kind you never see coming — a tiny disc of light tucked under a cabinet, into a stair riser or along a deck edge that suddenly makes the whole space feel finished. That's exactly what the LED PUCK LIGHT #2000 ROUND 2 SIDES does. Also called a LED puck light, mini recessed puck, rondelle or round mini downlight, this round 2-way version throws its beam out of two side openings instead of straight down, so it grazes a surface rather than staring back at you. It's a favourite for under-cabinet and toe-kick lighting, stair and step lights, closets, bookcases, display niches, headboards, deck and patio risers, and any spot where you want glow without glare.

Compact and mighty: it measures 50 mm / 1.967" across with a 29 mm / 1.142" body and drops into a 35 mm / 1.378 inches cutout. It runs on 12/24 V DC low voltage, draws only 1 Watt and delivers 125 Lumens — the equivalent of a 20 Watt incandescent — through a tight 25º projection angle for a crisp, controlled pool of light. This SKU, LCPK2000R-2S-1W-4000K-BS, is the 4000K neutral white version with a brushed stainless trim, an easy match with stainless appliances, aluminum railings and modern hardware. A CRI of >80 keeps wood grain, tile and countertops looking true, the power factor is +90, it is dimmable, and it's rated IP67 with a 25 000 hour lifespan and a 3 year warranty.

Because of that IP67 rating, this puck is just as happy outdoors as indoors — think Québec winters on a deck stair, a garden retaining wall, a covered porch soffit, or a boat dock, as well as kitchens, bathroom vanities, walk-in closets, retail display cases, reception desks and restaurant millwork. Since it's a 12/24 V DC fixture, plan a low-voltage driver sized for the total wattage of your run. Want a different look in the same family? Compare the LED puck light #2000 round 1 side for a one-direction wash, the LED puck light #2000 louver for an anti-glare eyelid look, or the LED puck light #2000 scoop for a directional scoop trim. Map your spacing, order your pucks and light up the details.

Built small, built to last
The #2000 puck platform is made for millwork and tight builds: a 50 mm / 1.967" face, a 29 mm / 1.142" overall body and a 27 mm / 1.063" depth dimension mean it disappears into a shelf, a stair riser, a soffit or a cabinet panel. The round 2-side trim of this model emits through two lateral openings, which is what makes it so comfortable to live with — the light source is shielded from most viewing angles while the beam does the work on the surface below or beside it. The trim on this SKU is brushed stainless, a finish that plays well with stainless steel appliances, glass railings and contemporary hardware, and the family is also offered in white and black trims for other looks.

Light quality you can trust
At 4000K, this puck gives a clean neutral white — brighter and crisper than warm 3000K, without going blue. That's the sweet spot for task areas: cutting boards, vanities, workbenches, display shelving. With a CRI greater than 80, colours stay honest, so butcher block stays warm, white quartz stays white and merchandise looks like it does in daylight. The 25º projection angle concentrates the 125 Lumens into a defined accent beam instead of spilling everywhere, which is exactly what you want when you're grazing a backsplash or marking a step.

Technical specifications
SKU: LCPK2000R-2S-1W-4000K-BS
Voltage: 12/24 V DC
Consumption: 1 Watts
Light intensity: 125 Lumens
Incandescent equivalent: 20 Watts
Colour temperature: 4000K
CRI: >80
Power factor: +90
Projection angle: 25º
Cutout size: 35 mm / 1.378 inches
Dimensions: 50 mm / 1.967" — 29 mm / 1.142" — 27 mm / 1.063"
Trim: round, 2 sides, brushed stainless
Dimmable: Yes
Protection rating: IP67
Lifespan: 25 000 Hours
Warranty: 3 years

Wiring, dimming and installation
This is a low-voltage 12/24 V DC fixture, so it needs a DC power supply sized for your total load — at 1 Watt each, a run of pucks stays very light on the driver, and you should always leave headroom for future additions. Drill a clean 35 mm cutout, feed the leads through, and seat the puck; because the trim is only 50 mm wide, it works in narrow stiles and thin shelf edges where a standard recessed light would never fit. The IP67 rating means dust-tight and protected against temporary immersion, so it tolerates damp bathrooms, splash zones near a sink, exterior stairs and landscape steps. Since the fixture is dimmable, pair it with a dimming-capable low-voltage driver or controller to set the mood from full task light down to a soft night glow.

Where it earns its keep — and what goes with it
Homeowners use these pucks under upper kitchen cabinets, inside pantry and closet shelving, along basement stair risers, around bathroom vanities and in custom headboards. Contractors and small businesses put them in reception desks, retail display cases, bar fronts, restaurant millwork, hotel corridors and exterior deck stairs. Within the #2000 family you can mix trims on the same low-voltage circuit: the LED puck light #2000 round 1 side for a single-direction wash, the LED puck #2000 persienne louver trim to cut glare in seating areas, and the LED puck light #2000 scoop for an angled, directional accent. Full details, dimensions and the technical drawing are in the spec sheet posted in the Documentation tab of this page.
