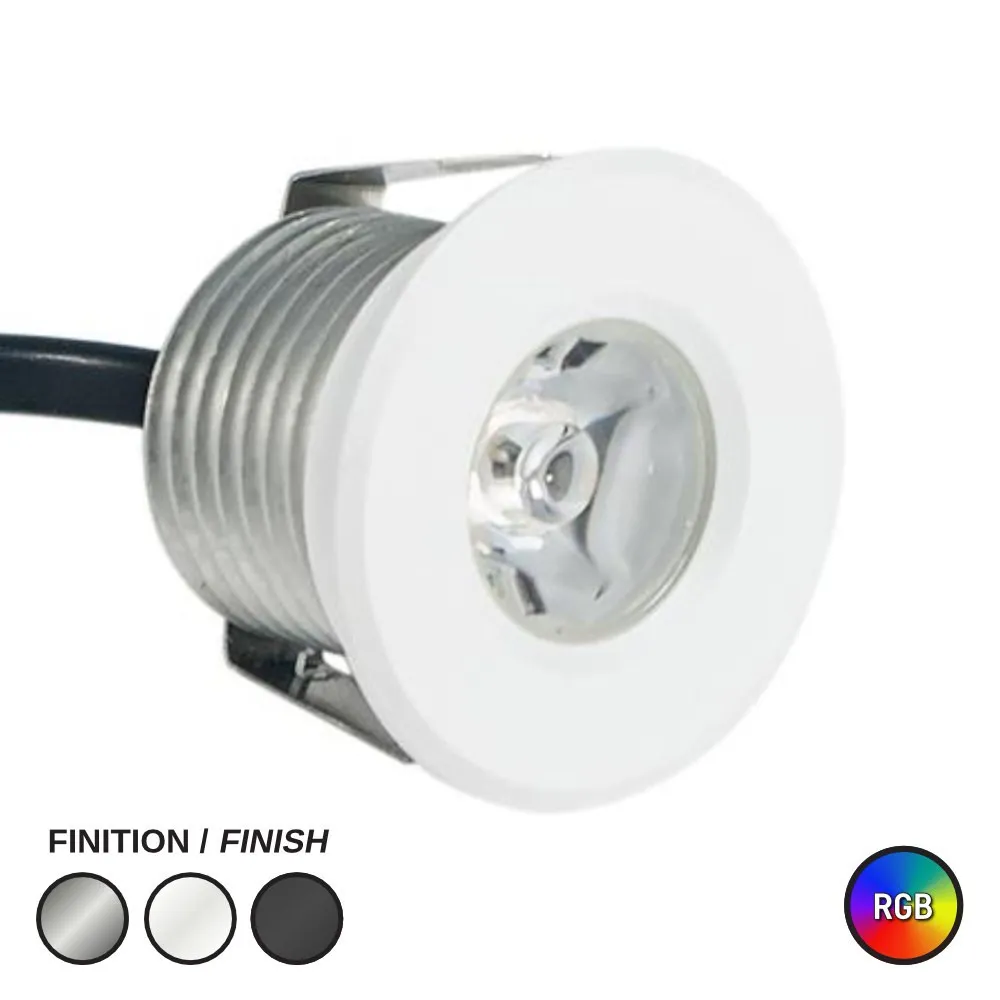

LED PUCK LIGHT #2000 ROUND RGB WHITE

Name: LED PUCK LIGHT #2000 ROUND RGB WHITE
Brand: LEDCO
SKU: LCPK2000R-1W-RGB-WH
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000R-1W-RGB-WH

Brand: LEDCO

Add colour, accent and task light exactly where you need it with the LED PUCK LIGHT #2000 ROUND, a tiny recessed LED puck light in a clean white round trim with RGB colour-changing output. People call these puck lights, mini recessed pucks, cabinet spots or round LED lights, and they solve a very specific problem: lighting shelves, niches, stairs, toe-kicks and display cases where a regular pot light would never fit. Drop it into a millwork panel, a bar counter, a closet, a headboard or a bathroom vanity cabinet and you get a discreet point of light that disappears into the surface and lets the colour do the talking. Because it runs on low voltage, it is the go-to fixture for kitchen under cabinet lighting, display shelving, stair risers, boat and RV interiors, retail counters and any spot where a full-size fixture is simply too big.

Behind that small face there are real numbers. The puck runs on 12/24 V DC and draws just 1 watt for 125 lumens — the punch of a 20 watt incandescent for a fraction of the draw. The LED is RGB colour changing, so you can set the mood from warm accent tones to bold saturated colour, with a CRI above 80 and a tight 25° beam that keeps the light focused on what you want to show off. It is dimmable, carries a power factor over 90, and is rated IP67, which means water and dust are not a concern in a shower niche, a soffit, a boat deck or an outdoor stair. It measures 50 mm / 1.967" across the trim by 29 mm / 1.142" with a 27 mm / 1.063" recessed body, and it needs only a 35 mm / 1.378" cutout. Lifespan is rated at 25 000 hours and it is backed by a 3-year warranty.

This round white version, SKU LCPK2000R-1W-RGB-WH, blends into white melamine, painted MDF and light cabinetry, which makes it a favourite of Canadian cabinetmakers, renovators and contractors finishing kitchens, basements, home bars, condo entrances, spas, restaurants and retail displays. Want a different look in the same family? Pair it with the LED puck light #2000 louver for glare-controlled downlight, the LED puck light #2000 round 1 side for asymmetric wall-washing, or the LED puck light #2000 scoop for stairs and corridors. Plan your low-voltage driver, map your cutouts and bring your project to life.

Built small, built tough
The PK2000 platform was designed for millwork and tight architectural details, where the fixture has to vanish and the light has to stay. This version wears a round white trim, a finish that reads as a simple dot on white cabinet panels, painted soffits and light stone counters. The housing recesses into the material and only the slim face stays visible, so sightlines stay clean under upper cabinets, inside display boxes and along stair stringers. The IP67 rating is the part installers appreciate most: this little LED puck light can live in a shower niche, a steam room surround, a poolside step, a dock, a boat interior or an exposed exterior soffit without you worrying about splashes, spray or dust.

Light quality and colour
With RGB colour changing output, this puck is made for ambiance: a single row can turn a bar front, a wine display or a backsplash into a feature wall, and you can retune the colour for a holiday, a promotion or a mood without touching the hardware. The 25° projection angle keeps the beam narrow and intentional — perfect for grazing a bottle shelf or marking a stair edge rather than flooding a room. A CRI greater than 80 keeps materials, wood grain and merchandise looking honest, and the fixture is dimmable, so you can bring the level down for evening service or late-night circulation.

Technical specifications
SKU: LCPK2000R-1W-RGB-WH
Voltage: 12/24 V DC
Consumption: 1 watt
Light intensity: 125 lumens
Incandescent equivalent: 20 watts
Colour: RGB
Projection angle: 25º
CRI: >80
Power factor: +90
Dimmable: Yes
Protection rating: IP67
Cutout size: 35 mm / 1.378 inches
Dimensions: 50 mm / 1.967", 29 mm / 1.142", 27 mm / 1.063"
Trim: Round, white
Lifespan: 25 000 hours
Warranty: 3 years

Wiring and installation
This is a low-voltage fixture: it runs on 12/24 V DC and must be fed by a suitable DC power supply and, for colour work, an RGB controller. Because each puck draws only 1 watt, you can run a long series of them on a modest driver — ideal when a cabinetmaker wants six or eight points of light under one run of uppers. Installation is a drill-and-drop job: bore a 35 mm / 1.378 inches hole, pass the lead, seat the puck and finish. Keep the driver accessible in a cabinet gable, a toe-kick or a service panel, and respect the voltage drop over long runs by feeding from the centre of the circuit. As always in Canada, line-voltage connections to the power supply should follow local electrical code and be made by a qualified electrician.

Applications, family and documentation
Think kitchen under cabinet lighting and open shelving, bathroom vanity and cabinet interiors, wine cellars, home theatres, reception desks, jewellery and boutique display cases, stair treads, hotel corridors, restaurant bars and marine or RV cabins. Within the same PK2000 family you can mix trims on one project: the LED puck #2000 persienne and the LED puck light #2000 louver add a shielded louver face for glare control, the LED puck light #2000 round 1 side throws light in one direction for wall washing, and the LED puck light #2000 scoop directs light downward on steps and baseboards. The full technical spec sheet for LCPK2000R-1W-RGB-WH is available in the Documentation tab, with the technical drawing, the cutout dimension and the complete trim and colour ordering guide.
