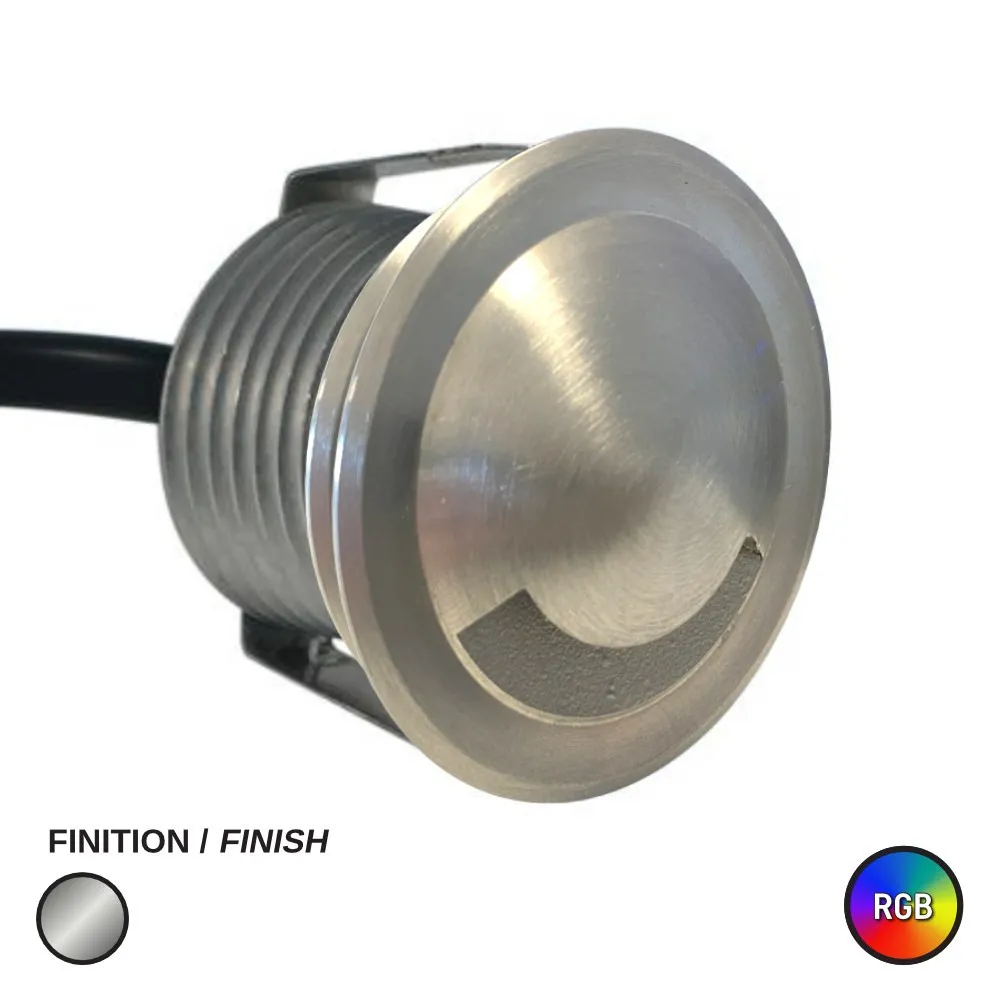

LED PUCK LIGHT #2000 ROUND 1 SIDE RGB BRUSHED STEEL

Name: LED PUCK LIGHT #2000 ROUND 1 SIDE RGB BRUSHED STEEL
Brand: LEDCO
SKU: LCPK2000R-1S-1W-RGB-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000R-1S-1W-RGB-BS

Brand: LEDCO

Tiny fixture, big impact: this LED puck light slips into cabinets, stairs, decks and displays where a full recessed fixture simply will not fit. Known by shoppers as a round LED light, mini puck, deck light or under-cabinet spotlight, the LED PUCK LIGHT #2000 ROUND 1 SIDE is a low-voltage recessed mini light with a round stainless steel trim and a one-side (1S) cut, so the beam is aimed to one direction instead of straight down. That single detail makes it perfect for grazing a backsplash, washing a stair riser, lighting a shelf edge or accenting a display case without shining into anyone's eyes. This is the RGB version, so it changes colour for accent, ambiance and feature lighting.

Each puck draws only 1 watt and delivers 125 lumens, the equivalent of a 20-watt incandescent lamp — so you can run a whole row of them on one small driver. It runs on 12/24 V DC low voltage, it is dimmable, and the tight 25º projection angle keeps the light where you want it. Colour rendering is rated at CRI greater than 80, so wood, stone and paint keep their true tone, and the power factor is above 90. The rating that really sets it apart is IP67: sealed against dust and water, indoors or out. It installs in a 35 mm cutout, measures 50 mm in diameter and 29 mm deep, and is backed by a lifespan of 25 000 hours plus a 3 year warranty. SKU: LCPK2000R-1S-1W-RGB-BS.

Use it under kitchen cabinets and in bathroom cabinet lighting, along stair treads, in closets, pantries, wine cellars, bookcases and toe-kicks, and — thanks to the IP67 seal — in decks, docks, patios, walkways and planters that face a real Canadian winter. Retailers and restaurants love it for display cases, bars, reception desks and millwork. Need a different look? Compare the LED puck light #2000 louver for a shielded, glare-controlled face, the LED puck light #2000 scoop for a directional scoop trim, or stay in the same round 1-side family with the 3000K warm white version and the 4000K neutral white version. Plan your layout, add your low-voltage driver and light up the details.

Built small, sealed tight
The PK2000 platform was designed for millwork and outdoor detail lighting, where fixtures get bumped, washed and rained on. This model wears a round brushed stainless steel trim, a finish that looks at home on modern cabinetry, stair nosings and deck boards alike. The "1 side" (1S) trim is the key difference: one portion of the face is closed, so the light is thrown to one side rather than straight down. Point it toward a wall, a countertop, a riser or a shelf and you get a clean accent line with far less glare in the field of view. With an IP67 protection rating, this mini LED puck light is sealed against dust and water infiltration, which is exactly what you want in a bathroom, a shower niche surround, a patio deck or a dock.

Light quality and colour
This is the RGB version, so the puck produces colour — red, green, blue and the mixes in between — for accent walls, bars, display cases, party decks and feature millwork. Output is 125 lumens from only 1 watt, equivalent to a 20 watt incandescent, with a narrow 25º projection angle that concentrates the beam into a tidy pool of light instead of spilling everywhere. Colour rendering is rated CRI greater than 80, so finishes, bottles, merchandise and food look natural. The fixture is dimmable, letting you drop the level for evening ambiance, and a power factor above 90 means it uses its energy efficiently in long runs.

Technical specifications
SKU: LCPK2000R-1S-1W-RGB-BS
Voltage: 12/24 V DC
Consumption: 1 Watt
Light intensity: 125 Lumens
Incandescent equivalent: 20 Watts
Colour: RGB
Projection angle: 25º
CRI: >80
Power factor: +90
Protection rating: IP67
Dimmable: Yes
Cutout size: 35 mm
Diameter: 50 mm
Depth: 29 mm
Lifespan: 25 000 Hours
Warranty: 3 years
Trim: Round, 1 side, brushed stainless

Wiring and installation
Installation is straightforward low-voltage recessed work: bore a 35 mm hole, feed the lead through, seat the puck and connect it to a 12 or 24 V DC supply. Because each light pulls only 1 watt, a modest driver can carry a long run of pucks — always add up the total load of your run and keep headroom on the driver. RGB models require a compatible RGB controller and matching low-voltage wiring, and any dimming or colour control must be done on the DC side of the system. In cabinetry, plan the cutouts before finishing; outdoors, keep connections in a protected junction even though the fixture itself carries an IP67 seal. The shallow body suits cabinet bottoms, stair stringers, soffits and deck boards where depth is limited.

Applications, family and documentation
Homeowners use these puck lights for kitchen cabinets, vanity and bathroom cabinet lighting, pantries, closets, display shelving and basement stairs; contractors specify them for deck stairs, walkways, planters, docks, retail display cases, bar fronts, reception desks and restaurant millwork across Canada. The PK2000 family shares the same body and cutout, so you can mix trims on one project: the louver style with LED puck #2000 persienne or LED puck light #2000 louver, the directional LED puck light #2000 scoop, or the same round 1-side trim in white light with the 4000K version. The full technical PDF for LCPK2000R-1S-1W-RGB-BS, with the dimensional drawing and the complete ordering guide, is in the Documentation tab.
