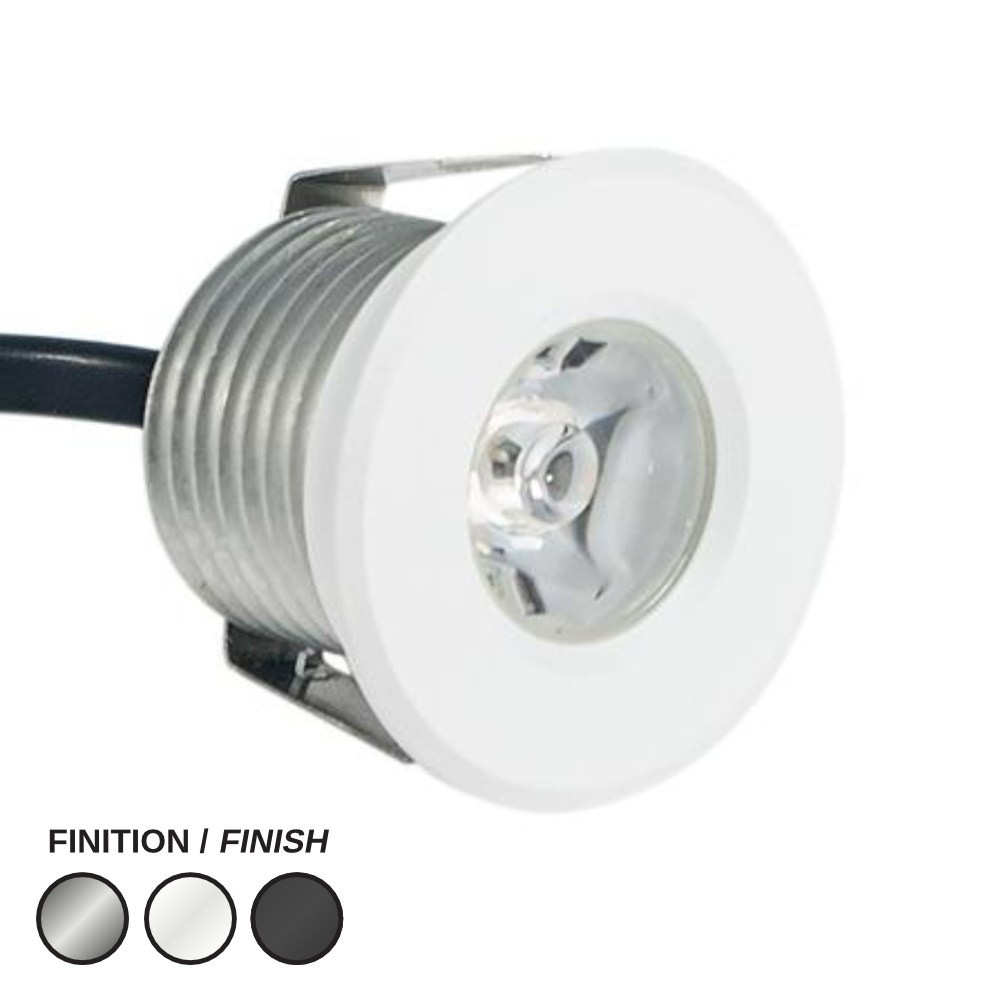

LED PUCK LIGHT #2000 ROUND 3000K WHITE

Name: LED PUCK LIGHT #2000 ROUND 3000K WHITE
Brand: LEDCO
SKU: LCPK2000R-1W-3000K-WH
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000R-1W-3000K-WH

Brand: LEDCO

Small light, big effect: this round LED puck light slips almost invisibly into cabinetry, stair risers, closets and display cases, then throws a clean, focused beam exactly where you need it. Known as a LED puck light, recessed mini puck, cabinet spotlight or simply round LED light, model LCPK2000R-1W-3000K-WH is the round trim in a white finish with warm 3000K light. It is the go-to fixture for kitchen lights puck installs under upper cabinets, for lighting a bathroom cabinet or vanity niche, for bookcases, wine cellars, boat decks, RV interiors, retail displays and outdoor stairs.

Behind the tiny face plate is real performance. It runs on 12/24 V DC low voltage, draws only 1 watt and delivers 125 lumens — about the punch of a 20 W incandescent, with a fraction of the energy. The warm 3000K colour temperature flatters wood, stone and skin tones, while a CRI greater than 80 keeps countertop colours honest. The tight 25º beam angle creates crisp pools of light instead of glare, the power factor is +90, and the unit is dimmable so you can set the mood. It is sealed to IP67, which means dust-tight and protected against water — ideal for steps, soffits, docks and damp spots. Rated for 25 000 hours and backed by a 3 year warranty. Measurements: 50 mm face, 29 mm depth, 27 mm body, with a 35 mm cutout.

Contractors love these pucks for stair risers and toe-kicks, homeowners for pantries, floating shelves and headboards, and small businesses for jewellery cases, bar shelving and reception niches — anywhere a full-size recessed light would be overkill. Because it is a low voltage 24V puck light, it wires safely into cabinetry and outdoor woodwork through Canadian winters. Need a different look on the same 35 mm cutout? Pair it with the LED puck light #2000 round 1 side for directional wall washing, the LED puck light #2000 louver for glare-free steps, or the angled LED puck light #2000 scoop. Add it to your cart and light the details that make a project look finished.

Built to disappear into the millwork
The PK2000 platform was designed for installers who want light without hardware showing. The round trim measures 50 mm across the face and 29 mm deep, with a 27 mm body that drops into a 35 mm cutout, so a single hole saw pass through a cabinet bottom, a stair riser or a soffit panel is all it takes. The white finish on this SKU blends with painted cabinetry and white melamine; the same fixture family is also offered in black and brushed stainless trims, and in round, square, one-side, two-side and louver styles, so a whole project can share one cutout size and one look. Sealed to IP67, the housing shrugs off dust, splashes and washdowns, which is why these mini recessed LED pucks end up on docks, boat decks, patio steps and in commercial coolers as often as in kitchens.

Light quality you can actually see
At 3000K, the beam is a warm white that makes oak, walnut, marble and brass look rich rather than clinical, and a CRI above 80 keeps food, fabric and merchandise colours true. The 25º projection angle is narrow on purpose: it lays down defined scallops of light on a backsplash or a display shelf instead of spilling into your eyes. With 125 lumens from just 1 W, the equivalent of a 20 W incandescent, you can line up several pucks on one run and still keep the load tiny. The fixture is dimmable, so a row of pucks can go from task brightness at supper time to a soft glow after hours.

Technical specifications
SKU: LCPK2000R-1W-3000K-WH
Voltage: 12/24 V DC
Consumption: 1 W
Light intensity: 125 lumens
Incandescent equivalent: 20 W
Colour temperature: 3000K
CRI: >80
Projection angle: 25º
Power factor: +90
Dimmable: Yes
Protection rating: IP67
Face diameter: 50 mm
Depth: 29 mm
Body: 27 mm
Cutout size: 35 mm
Lifespan: 25 000 hours
Warranty: 3 years
Trim: round, white

Wiring and installation
This is a low voltage LED puck: it needs a DC supply of 12 or 24 V, so plan a driver or power supply sized for the total wattage of the run plus a margin, and keep the secondary wiring tidy inside the cabinet or the stair stringer. Drill the 35 mm hole, feed the leads, seat the trim, and the 1 watt draw means even long runs stay easy on the circuit. Because the pucks are dimmable, use a dimming method compatible with the driver you choose and dim the driver, not the individual fixtures. For exterior steps, decks and soffits, the IP67 rating is your friend, but still route connections so water drains away and never sits in a splice.

Where it earns its keep, and what goes with it
Think under-cabinet task lighting over a prep counter, glass shelving in a boutique, a wine rack, a hotel corridor stair, a marine cockpit, a display cabinet at a dental clinic, or accent dots in a home theatre soffit. Same cutout, different effect: the LED puck light #2000 round 1 side aims the light sideways for wall grazing, the LED puck light #2000 louver shields the source on stairs and pathways, the LED puck #2000 persienne does the same in black, and the LED puck light #2000 scoop tilts the beam for risers and seating niches. The full technical PDF spec sheet with the dimensional drawing and the complete ordering guide is in the Documentation tab — worth downloading before you cut.
