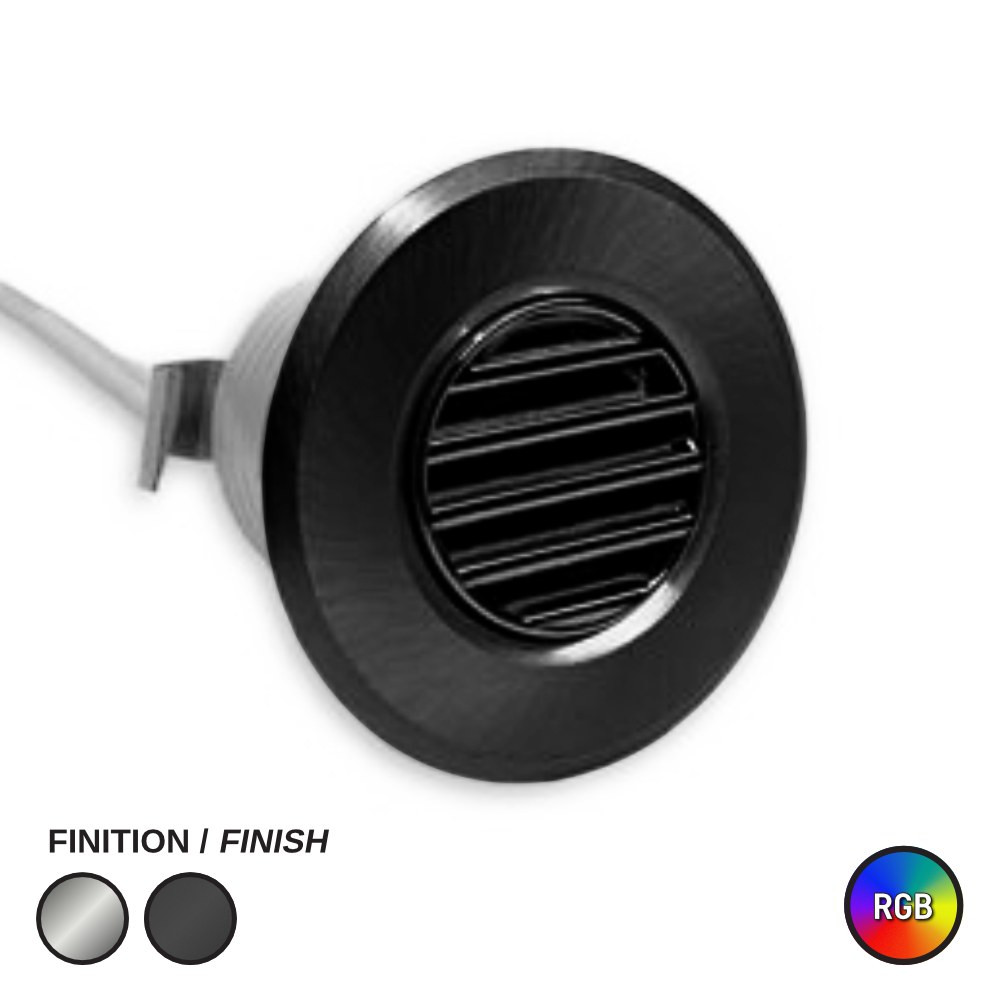

LED PUCK #2000 PERSIENNE - LCPK2000P-1W-RGB-BK

Name: LED PUCK #2000 PERSIENNE - LCPK2000P-1W-RGB-BK
Brand: LEDCO
SKU: LCPK2000P-1W-RGB-BK
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000P-1W-RGB-BK

Brand: LEDCO

Give your cabinets, niches and display cases that jewellery-store glow with the LED puck light #2000 Louver, model LCPK2000P-1W-RGB-BK. This is the compact recessed puck light people search for under names like mini puck, cabinet light, shelf light or under cabinet spot — the modern, low-voltage replacement for the old halogen buttons that ran hot and burned out. Its black louver trim (persienne) shields the diode from direct view, so you see the light on your countertop, your bottles or your merchandise, and not a glaring dot in your eyes. In RGB, it also becomes a colour accent: warm party tones in a home bar, brand colours in a boutique display, a soft wash inside a glass shelf.

Behind that tiny face is a real fixture. It runs on 12/24 V DC low voltage and draws only 1 watt while delivering 125 lumens — the brightness people expect from a 20 W incandescent, with a CRI above 80 so wood grain, glassware and finishes look true. The tight 25º beam puts light exactly where you aim it, and the fixture is dimmable so you can tune the mood from task-bright to evening-soft. Rated IP67, it shrugs off splashes and humidity, which makes it as comfortable in a bathroom vanity or a wet bar as in a dry pantry. Power factor is above 90, lifespan is rated at 25 000 hours, and the fixture is covered by a 3-year warranty. It drops into a 35 mm / 1.378 inches cutout, with a black finish and the square-and-round louver trim.

Kitchen islands, toe-kicks, staircases, closets, wine cellars, retail showcases, reception desks, restaurant millwork — anywhere a Canadian renovation needs discreet, glare-free accent light, this recessed puck earns its place. Contractors love that a single low-voltage run can feed a whole row of them. Pair it with the matching stainless version LED Puck #2000 Persienne RGB stainless, or choose fixed white light with the 3000K black louver puck and the 4000K black louver puck. Ready to make your cabinetry look custom? Add the LCPK2000P-1W-RGB-BK to your project and let the details shine.

Built small, built to last
The PK2000 platform was designed for millwork: a miniature housing that hides inside a shelf, a cabinet gable or a soffit and leaves only its trim visible. This version wears the black louver trim (persienne), an angled baffle that cuts direct view of the diode and softens the glare you get from bare mini pucks. The same platform is offered in round, square, 1-side and 2-side trims and in white, black and brushed stainless, so a designer can keep one lighting language through an entire home or storefront while changing only the face.

Light quality and colour
This SKU is the RGB version: instead of one fixed white, it produces colour, which is what makes it a favourite for display cases, bars, media walls and feature niches. Output is 125 lumens from 1 watt, the equivalent brightness of a 20 W incandescent, with a CRI above 80 for honest rendering of wood, stone and metal finishes. The 25º projection angle is deliberately narrow: it creates defined pools of light on a counter or a shelf rather than a flat wash, which is exactly the effect you want when you are highlighting objects. The fixture is dimmable, so the same puck can go from accent to ambience.

Technical specifications
Model: LCPK2000P-1W-RGB-BK
Voltage: 12/24 V DC
Consumption: 1 Watts
Light intensity: 125 Lumens
Incandescent equivalent: 20 Watts
Colour: RGB
Projection angle: 25º
CRI: >80
Power factor: +90
Protection rating: IP67
Dimmable: Yes
Lifespan: 25 000 Hours
Cutout size: 35 mm / 1.378 inches
Trim: Louver, black
Warranty: 3 years

Wiring and installation
Installation is straightforward low-voltage work: drill the 35 mm / 1.378 inches hole, feed the leads, seat the puck and connect it to a 12/24 V DC supply. Because the fixture pulls only 1 watt, many units can share one run, which keeps wiring tidy inside cabinetry. Plan your driver capacity around the total connected wattage and keep a little headroom. The IP67 rating is the detail installers appreciate most: humidity in a bathroom, steam near a range hood or splashes at a wet bar will not compromise the fixture, and the sealed body also handles dusty environments like workshops and garage cabinets. For dimming, use a control method suited to the DC supply feeding the puck.

Where it works and what goes with it
Think kitchen uppers and islands, pantry shelving, walk-in closets, bathroom vanities, staircases and hallway toe-kicks at home; think jewellery and eyewear showcases, wine displays, reception desks, hotel millwork and restaurant bars on the commercial side. Mixing trims is a proven trick: use this louver puck where eyes are at fixture level, and the directional LED Puck Light #2000 Round 1 Side RGB where you want light thrown to one side. Need a brushed stainless face instead of black? See LED Puck Light #2000 Louver, and for neutral white choose LED Puck #2000 Persienne 4000K stainless. The full technical PDF for this SKU is available in the Documentation tab, with the technical drawing, the trim options and the complete ordering guide.
