LED ALUMINUM PROFILE #85 - LCPROF-85-16FT-WH

A white profile that disappears
White ceilings, trims and kitchen cabinets are everywhere, and a white aluminum profile follows suit: installed on a white surface, it all but vanishes, leaving only the line of light. That makes this 85 series version a natural choice for Scandinavian and contemporary interiors, bright retail spaces and healthcare settings where a clean, uncluttered look is essential.

Versatile installation
The 85 series is easy to install and ideal for residential or commercial projects. It can be mounted, suspended or glued to a surface, so the same profile can run under a cabinet, along a ceiling or above a table. Made of 6063-T5 aluminum, these LED extrusions can be installed indoors and outdoors, and the profile accommodates a variety of white and coloured LED strips, including RGB and RGBW. The ordering guide of the series lists an opaque lens and a black lens for anyone who wants to hide the individual LEDs.

Ordering and installation
This SKU is the 16 ft standard length; the series also comes in 8 ft lengths, and custom fabrication up to 192 inches is available. The ordering guide offers a standard or a swivel mounting for aiming the light, and end caps with no hole, with a hole, or one of each. Check your strip width against the technical drawing, plan the wire exits, clean the channel before sticking the strip and keep the power supplies accessible. Line-voltage connections must be made by a licensed electrician in accordance with the Canadian Electrical Code.

Applications
Run it under white upper cabinets for bright task lighting, along a bathroom vanity, inside white bookcases and closets, or across the ceiling of an office, a clinic or a classroom for clean linear lighting. In retail, it lights white shelving and wall displays discreetly. For shorter sections, the series includes the LED aluminum profile #85 in 8 ft.

Technical specifications
SKU: LCPROF-85-16FT-WH
Series: 85 series LED aluminum profile
Material: 6063-T5 aluminum
Finish: white
Length: 16 ft (also offered in 8 ft; custom fabrication up to 192 inches)

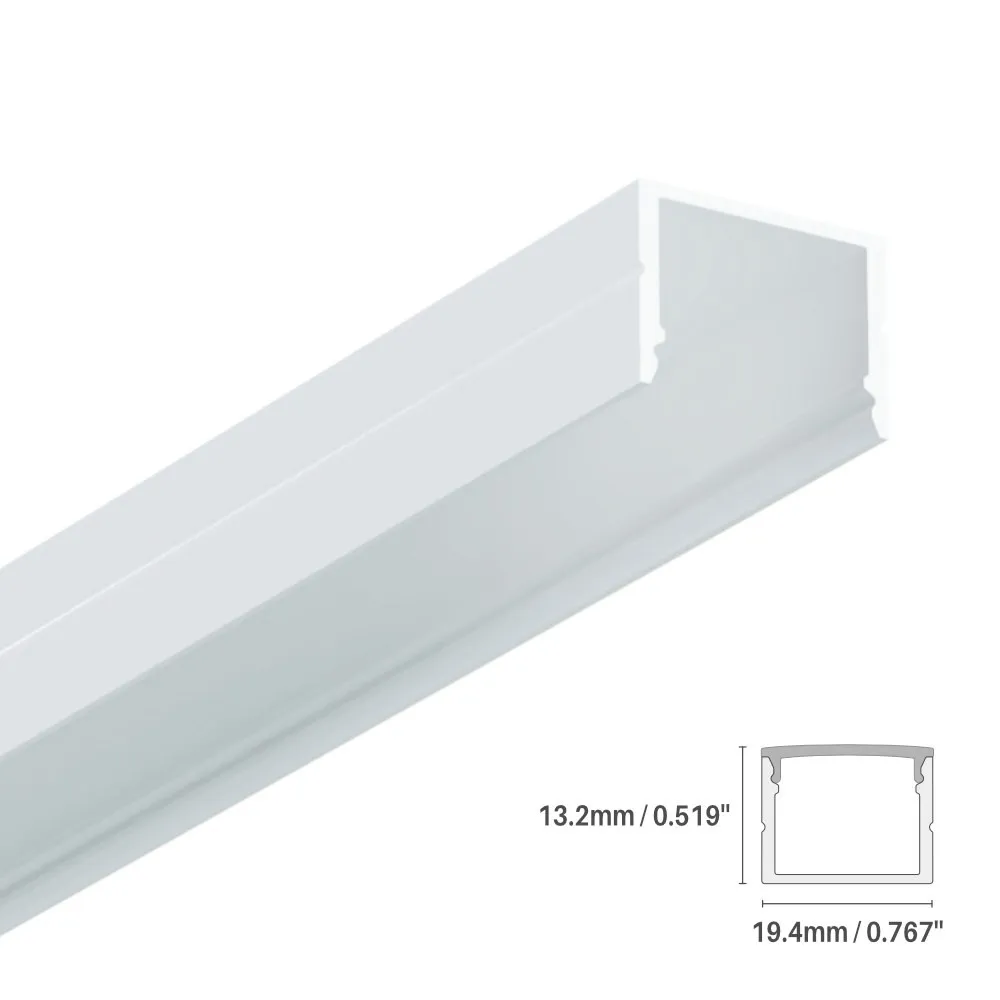

Technical drawing dimensions: 13.2 mm (0.519 in), 16.4 mm (0.646 in), 19.4 mm (0.767 in)
Installation: mounted, suspended or glued to a surface; indoor and outdoor
Ordering options (series): opaque or black lens, standard or swivel mounting, end caps with or without a hole
Compatible strips: white and coloured LED strips (RGB, RGBW)
Certification: certified for the Canadian market
Warranty: 3 years
Documentation: the spec sheet, with its technical drawing and ordering guide, is in the Documentation tab.
