LED ALUMINUM PROFILE #85 - LCPROF-85-16FT-WH-LENS-OPAQ

White and diffused: the discreet duo
This configuration of the 85 series combines a white aluminum body with an opaque lens. On a white ceiling or cabinet, the profile nearly disappears, and once the lens is in place, the strip becomes a smooth line of light instead of a row of bright dots. It is the go-to combination for bright interiors where both the fixture and the light source should stay discreet.

Versatile and easy to install
The 85 series is easy to install and ideal for residential or commercial projects. The profile can be mounted, suspended or glued to a surface, and these LED extrusions made of 6063-T5 aluminum can be installed indoors and outdoors. It accommodates a variety of white and coloured LED strips, RGB and RGBW included, and the aluminum can be painted if your colour scheme changes.

Ordering and installation tips
This SKU is the 16 ft standard length; the series also comes in 8 ft lengths, and custom fabrication up to 192 inches is available. The ordering guide lists a standard mounting and a swivel mounting to aim the light, plus end caps with no hole, with a hole, or one of each. Compare the strip width with the technical drawing, plan the wire exits and the power supply location, clean the channel, stick the strip, then install the lens. Line-voltage connections belong to a licensed electrician, in accordance with the Canadian Electrical Code.

Applications
Under white kitchen cabinets, it provides soft task lighting, the lens keeping bare LED dots from reflecting on glossy countertops; along a bathroom vanity or inside a closet, it adds a gentle glow; across the ceiling of an office, a clinic or a daycare, it creates clean linear lighting. Retailers use it to light white shelving and wall displays. For shorter sections of the same project, the series includes the LED aluminum profile #85 in 8 ft.

Technical specifications
SKU: LCPROF-85-16FT-WH-LENS-OPAQ
Series: 85 series LED aluminum profile
Material: 6063-T5 aluminum
Finish: white
Lens: opaque
Length: 16 ft (also offered in 8 ft; custom fabrication up to 192 inches)

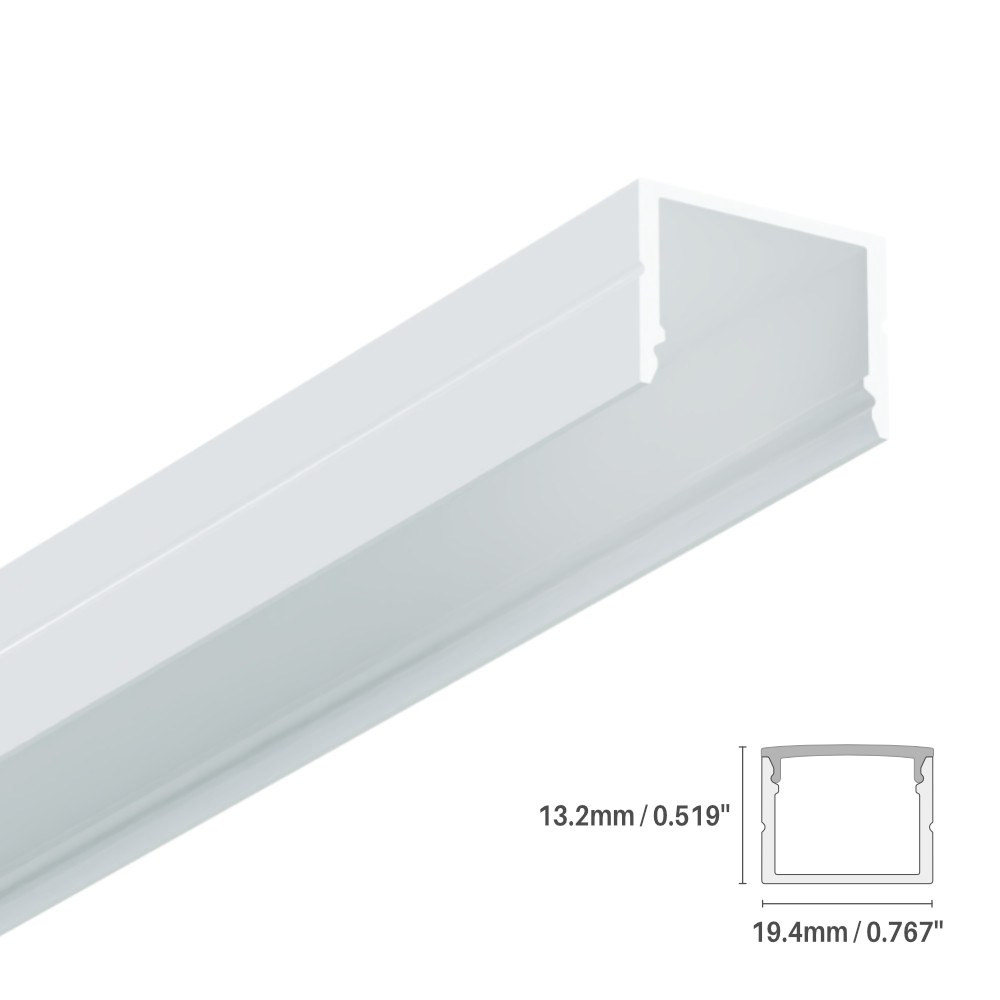

Technical drawing dimensions: 13.2 mm (0.519 in), 16.4 mm (0.646 in), 19.4 mm (0.767 in)
Installation: mounted, suspended or glued to a surface; indoor and outdoor
Mounting options (series): standard or swivel; end caps with or without a hole
Compatible strips: white and coloured LED strips (RGB, RGBW)
Certification: certified for the Canadian market
Warranty: 3 years
Documentation: the spec sheet, with its technical drawing and ordering guide, is in the Documentation tab.
