A profile with lens for long runsThis 85 series configuration combines the profile with an
opaque lens. With the strip in place and the lens installed, you get a continuous, softened line of light rather than visible dots, which matters on long runs where any irregularity catches the eye. Because the
16 ft length covers long distances with fewer joints, it is a smart choice for corridors, ceilings and retail walls.
Versatile and easy to installThe 85 series is easy to install and ideal for residential or commercial projects. It can be
mounted, suspended or glued to a surface, and these LED extrusions in 6063-T5 aluminum can be installed indoors and outdoors. The aluminum can be painted to match your decor, and the profile accommodates a variety of
white and coloured LED strips, RGB and RGBW included.
Planning your installationThis SKU is the
16 ft standard length; the series is also offered in 8 ft lengths, and custom fabrication up to 192 inches is possible. The ordering guide lists a standard mounting or a
swivel mounting for aiming the light, and end caps with no hole, with a hole, or one of each. Plan your layout on paper first: where each run starts and ends, where the wires exit and where the power supplies will sit. Clean the channel, stick the strip, install the lens, and leave the line-voltage connections to a licensed electrician, in accordance with the Canadian Electrical Code.
ApplicationsUse it for
linear lighting in offices and meeting rooms, for accent lines along corridor ceilings, in retail shelving and wall displays, above kitchen cabinets for
indirect light, or under them for task lighting. Suspended, it becomes a sleek line of light above a table or a reception desk. For shorter sections of the same project, the series also includes the
LED aluminum profile #85 in 8 ft.
Technical specificationsSKU: LCPROF-85-16FT-LENS-OPAQ
Series: 85 series LED aluminum profile
Material: 6063-T5 aluminum
Lens: opaque
Length: 16 ft (also offered in 8 ft; custom fabrication up to 192 inches)

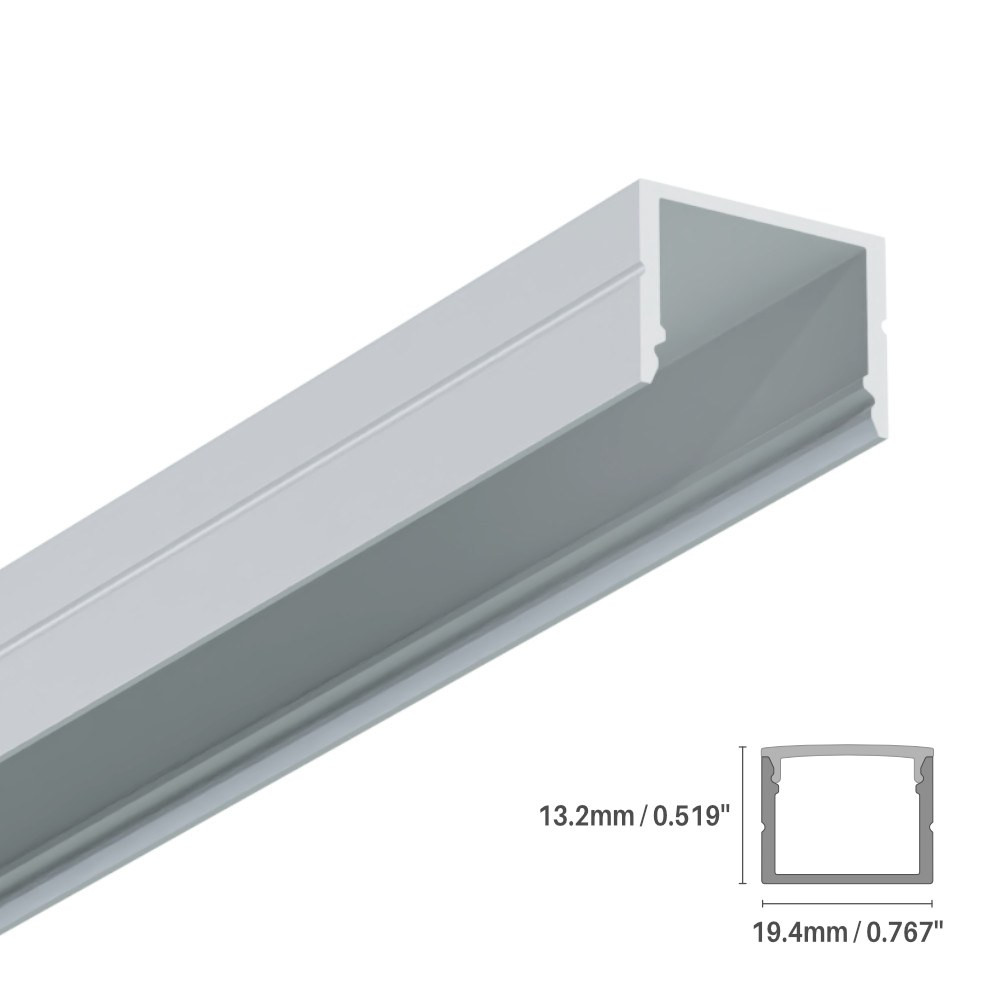

Technical drawing dimensions: 13.2 mm (0.519 in), 16.4 mm (0.646 in), 19.4 mm (0.767 in)
Installation: mounted, suspended or glued to a surface; indoor and outdoor
Mounting options (series): standard or swivel; end caps with or without a hole
Compatible strips: white and coloured LED strips (RGB, RGBW)
Certification: certified for the Canadian market
Warranty: 3 years
Documentation: the spec sheet, with its technical drawing and ordering guide, is in the Documentation tab.
