LED ALUMINUM PROFILE #49 - LCPROF-49-8FT

Name: LED ALUMINUM PROFILE #49 - LCPROF-49-8FT
Brand: LEDCO
SKU: LCPROF-49-8FT
Price: 101.97 CAD
Availability: InStock

SKU: LCPROF-49-8FT

Brand: LEDCO

Give your LED strip a clean, professional home with this LED aluminum profile from the #49 series, model LCPROF-49-8FT. Also called an LED aluminum channel, an aluminum extrusion or an LED strip housing, a profile like this one turns a bare strip of lights into a finished linear fixture: it protects the strip, helps it stay cool and gives you a neat, continuous line of light. In a handy 8-foot length that is easy to handle on the job site, it is made for residential and commercial projects, from kitchen and basement renovations to shops, offices and restaurants.

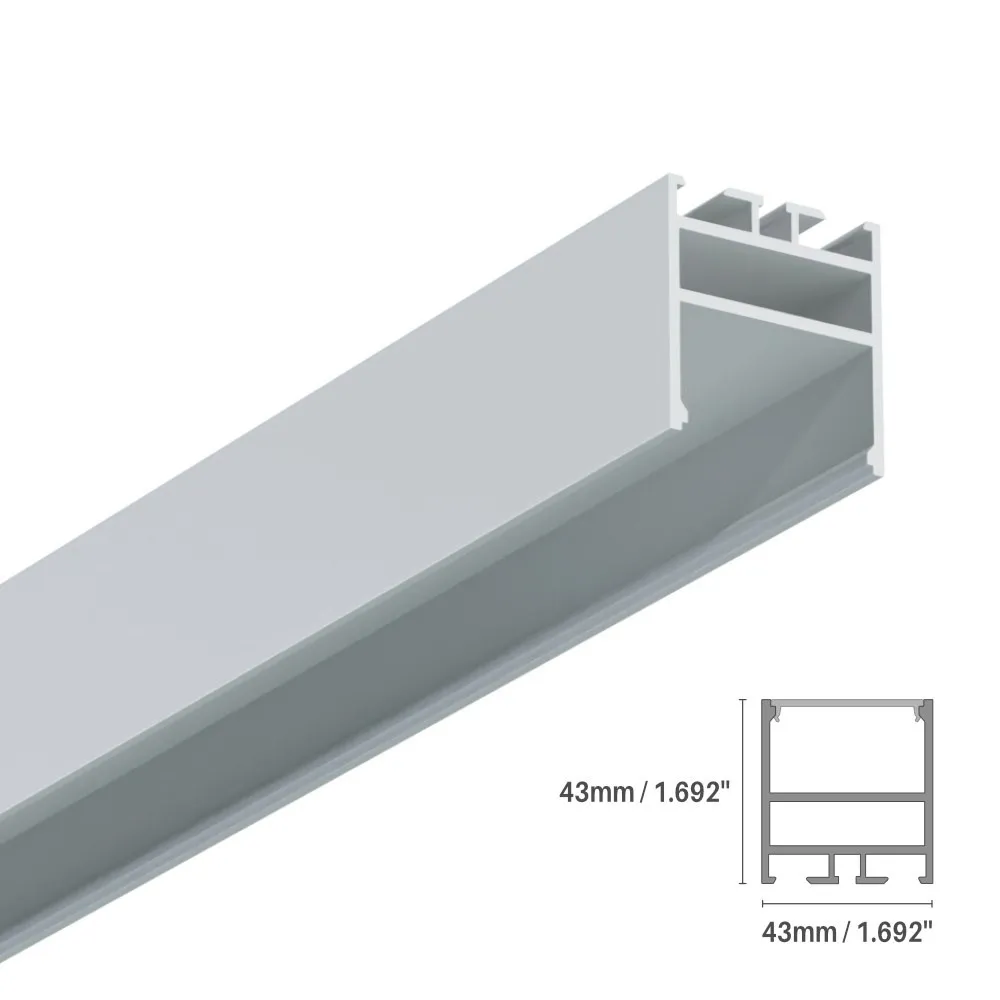

The technical drawing shows a square section of 43 × 43 mm with a channel 39 mm wide and 20.32 mm deep, generous enough for a wide range of LED strips. The profile is made of 6063-T5 aluminum, an alloy that increases heat dissipation and extends the lifetime of the LED source. It is designed for surface or suspended mounting, and the ordering guide lists an opaque lens, double-sided mounting tape and no-hole end caps, along with custom lengths in inches. The series is backed by a 3-year warranty.

Use it to create a linear pendant over a kitchen island or a conference table, a continuous line of light on a ceiling, or accent lighting along a wall, a bar or a staircase. It is a great choice for commercial fit-outs where the fixture stays visible, and homeowners across Canada use it to add a designer touch to condos, basements and open-concept living areas. Pair it with the LED strip and power supply of your choice, and turn a simple strip into architectural lighting that looks built-in.

Sold separately
To complete the installation, add:
End cap: LCENDCAP-STAND-49, LCENDCAP-STAND-49-BK, LCENDCAP-STAND-49-WH
Lens: LCLENS-OPAQ49-8FT

A large profile for visible linear lighting
The #49 series is a large aluminum profile designed to be part of the design rather than hidden. According to its technical drawing, it has a 43 × 43 mm square section, a size that reads as a deliberate architectural line on a ceiling, a wall or above a table. This listing is the 8-foot length, model LCPROF-49-8FT, in plain aluminum; the ordering guide identifies the finishes with the AL (plain aluminum), BK (black) and WH (white) codes. It is an aluminum extrusion made for residential and commercial projects alike.

Built to manage heat
The profile is made of 6063-T5 aluminum, an alloy that increases heat dissipation and extends the lifetime of the LED source. The drawing shows a channel 39 mm wide and 20.32 mm deep, which leaves room for a wide range of LED strips. Drawing heat away from the strip is one of the best ways to protect its brightness over the years, which is why an aluminum channel is the preferred way to install LED strips in kitchens, stores and offices.

Mounting, lens and options
The #49 is designed for surface mounting or suspended mounting. The ordering guide on the spec sheet lists an opaque lens that covers the strip for a softer, more uniform line of light, double-sided mounting tape and no-hole end caps, as well as custom lengths specified in inches. The 8-foot length is easy to handle, and several sections can be installed end to end to cover a longer run. Have any new wiring done by a licensed electrician in accordance with the electrical code in force in your province.

Technical specifications
Model: LCPROF-49-8FT
Series: aluminum profile #49
Section (technical drawing): 43 × 43 mm
Channel (technical drawing): 39 mm wide, 20.32 mm deep
Length: 8 ft
Material: 6063-T5 aluminum
Finish: plain aluminum
Mounting: surface or suspended
Options: opaque lens, double-sided mounting tape, no-hole end caps, custom lengths
Warranty: 3 years

Applications and documentation
Use the #49 for a suspended linear light over a kitchen island, a bright line on the ceiling of a boutique or a restaurant, accent lighting in a condo or a finished basement, or a feature line in an office lobby. For other areas of the same project, the family also includes the LED aluminum profile #13 and the LED aluminum profile #14 in an 8-foot length. The spec sheet, with the technical drawing and ordering guide, is available in the Documentation tab.
