The right length for most projects
An 8 ft length suits many kitchen cabinet runs, long shelves and closets with a minimum of joints, while being easier to transport and handle than longer lengths. The #14 LED profile brings the same qualities as the rest of the series: even lighting, beam adjustment and a considerably larger choice of installation options, from fixed to suspended mounting, thanks to a support rail that offers the largest range of installation and assembly.
Light quality and heat management
Designed to give a uniform light without hot spots with an opal or prime lens, the #14 turns the LED dots of a strip into a continuous glow, perfect over a countertop or inside a glass cabinet. The ordering guide of the series lists clear, prime, black, focus and square 3D opal lenses to adapt the beam and the look. Made of 6063-T5 aluminum alloy, the profile increases heat dissipation, and its use increases the lifetime of your LED strip, a key point in closed furniture.
Installation and accessories
Compatible with multiple installation accessories (over 40 options), the #14 can be mounted flat, on an angle or suspended. The ordering guide lists a flat bracket, a 45° corner bracket for corner installations and a swivel bracket 180° for aiming the light precisely. It is intended for LED strips 10 mm (3/8-inch) wide or less and designed to meet North American woodworking standards. Follow the instructions of your LED strip and its driver, and have any line-voltage connection made by a licensed electrician.
Technical specifications
SKU: LCPROF-14-8FT
Series: 14, aluminum finish
Length: 8 ft

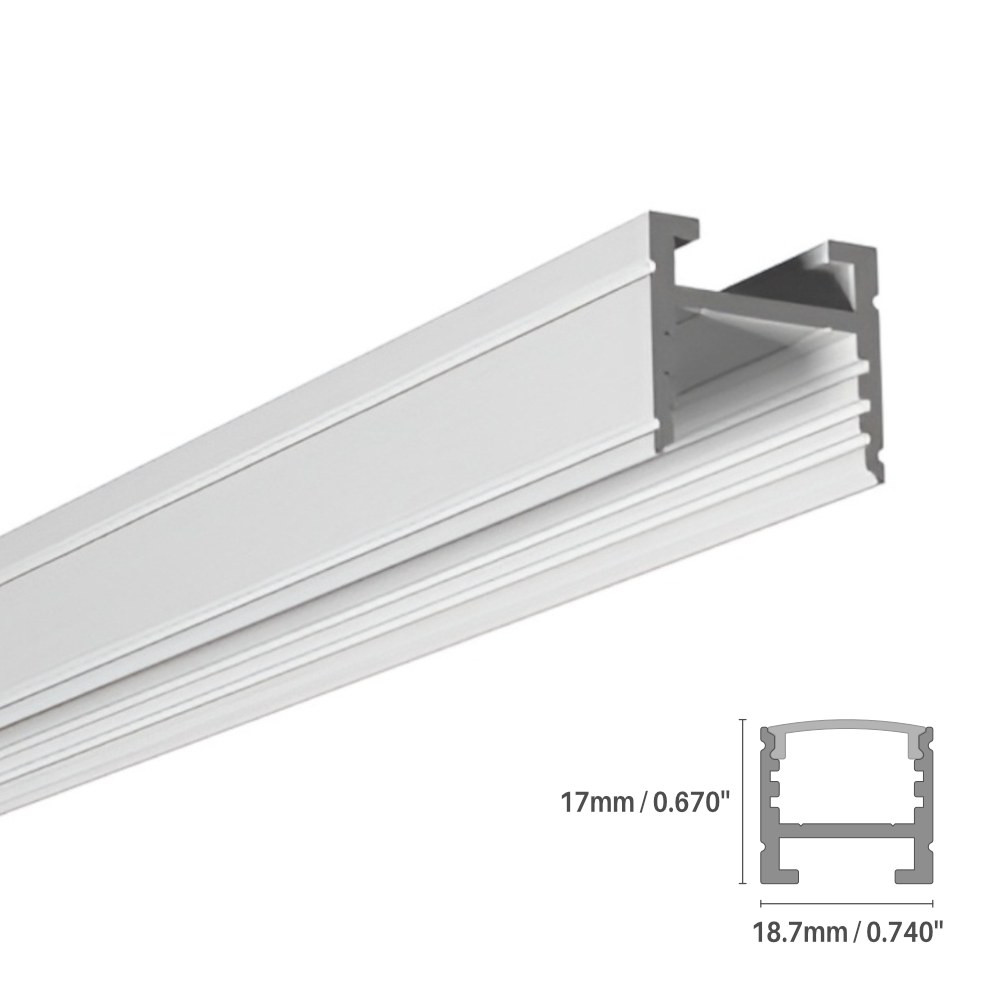

Dimensions (technical drawing): 17.0 mm (0.670 in), 18.7 mm (0.740 in)
LED strip: 10 mm (3/8-inch) or less
Material: 6063-T5 aluminum alloy
Mounting: fixed to suspended, over 40 accessory options
Custom lengths (series): sections of 2 to 240 inches (6 m)
Warranty: 3 years
Applications and documentation
Kitchens and islands, bathroom vanities, closets and pantries, bookcases, stairs, home offices, garages and workshops at home; display cases, shelving, reception desks and suspended linear lighting in shops, offices and restaurants. Whatever the project, the #14 gives your LED strip a clean, finished aluminum profile housing. The full spec sheet, with the technical drawing and the ordering guide, is available as a PDF in the Documentation tab.
