LED ALUMINUM PROFILE #785

A closet rod that lights your wardrobe
Most closets are lit by a single ceiling fixture that casts shadows right where you need to see. The #785 LED aluminum profile solves the problem at the source: it is a direct replacement for a standard closet rod, so the light comes from the rod itself and falls directly on your clothes. It has a standard diameter for wardrobe rods and is compatible with a wide range of hardware on the market, which makes it easy to integrate into new custom closets as well as renovations. This listing is the 8-foot length, model LCPROF-785-8FT.

Construction and light

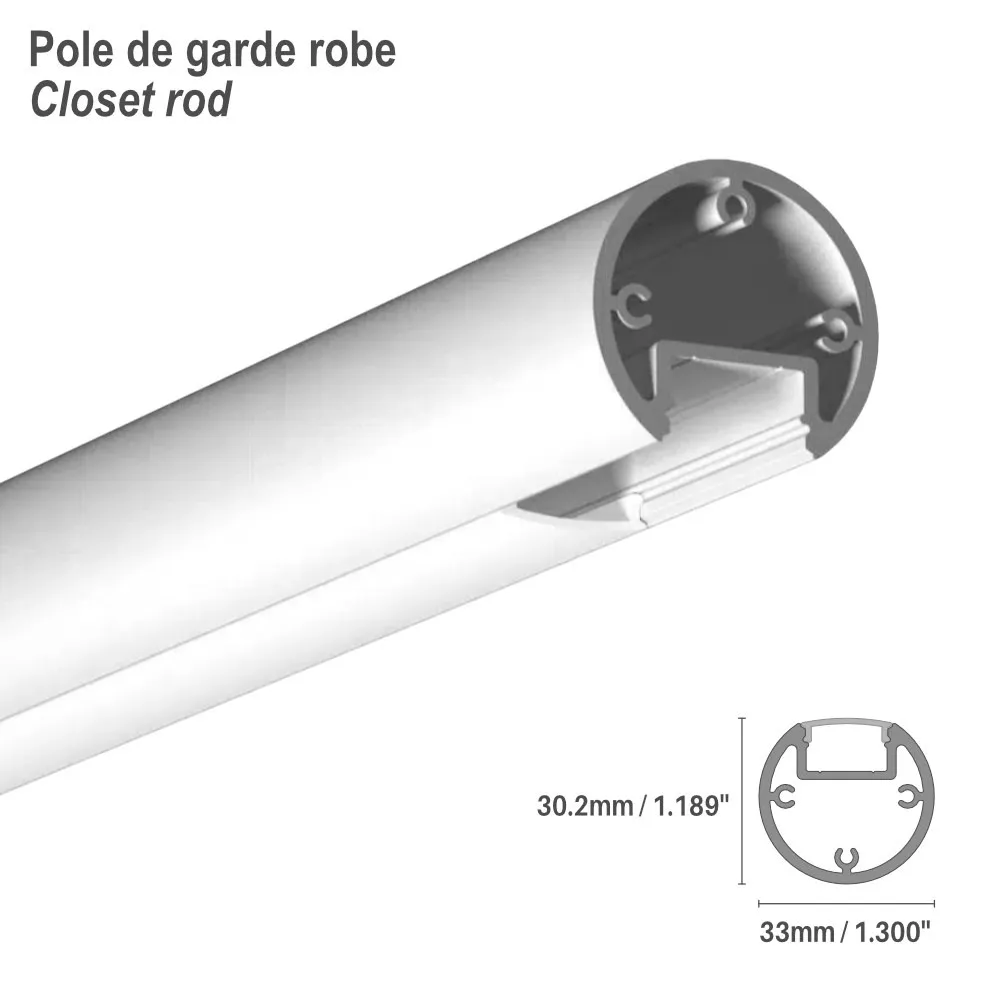

The profile is made of 6063-T5 aluminum, an alloy that increases heat dissipation, and it is designed to meet North American woodworking standards, a detail cabinetmakers and closet installers appreciate. The technical drawing shows dimensions of 30.2 mm and 33.0 mm (1.189 in and 1.300 in). It is designed for LED strips up to 10 mm (3/8 in) wide, and the ordering guide lists several lens options, including clear, spread and opal lenses, so you can choose between a crisper light and a softer, more diffused light.

Installation and options
Install it like a regular wardrobe rod with a heavy-duty closet rod bracket kit, and add ceiling supports, which the spec sheet says should be ordered for every 48 inches. Screwless finish hangers and standard aluminum end caps are also listed in the ordering guide. For hands-free convenience, motion sensor options are available with a 30-second or a 4-minute delay, embedded in the profile or mounted outside the extrusion. The series can also be made in custom lengths from 6 to 240 inches. Have any new wiring done by a licensed electrician in accordance with the electrical code in force in your province.

Technical specifications
Model: LCPROF-785-8FT
Series: aluminum profile #785
Use: direct replacement for standard closet rods and curtain rods
Dimensions (technical drawing): 30.2 mm and 33.0 mm (1.189 in and 1.300 in)
Length: 8 ft
Material: 6063-T5 aluminum
LED strip: up to 10 mm (3/8 in) wide
Lens options: clear, spread, opal and more
Motion sensor options: 30-second or 4-minute delay
Standards: designed to meet North American woodworking standards
Warranty: 3 years

Ideas for homes and businesses
Use it in a walk-in closet, a bedroom wardrobe, an entrance closet or a mudroom, where Canadian families juggle coats, boots and school bags all winter long. In retail, it turns a clothing rack into a lit display that draws the eye. Swap a curtain rod for the #785 to backlight sheer curtains, or, with an IP68-rated LED strip and a power supply suitable for wet locations, replace a shower curtain rod. For other areas of the same project, other models of the family are also available, such as the LED aluminum profile #13. The spec sheet, with the technical drawing and ordering guide, is in the Documentation tab.
