FLEX NEON 6W/M - 6X6MM - LCLS24VFLX-6X6-6W-30K

Name: FLEX NEON 6W/M - 6X6MM - LCLS24VFLX-6X6-6W-30K
Brand: LEDCO
SKU: LCLS24VFLX-6X6-6W-30K
Price: 135.97 CAD
Availability: InStock

SKU: LCLS24VFLX-6X6-6W-30K

Brand: LEDCO

Give your project that unmistakable glowing line without a single drop of glass or gas. This LED neon flex — also called flexible LED neon rope light, LED flex sign or simply neon LED — is a continuous, side-to-side bendable light source that replaces old-school neon tubing with something safer, tougher and far easier to install. Model LCLS24VFLX-6X6-6W-30K is the slim 6x6mm top-bend format, perfect for tracing coves, stair nosings, handrails, bar fronts, cabinet toe-kicks, signage letters and logos. Because it bends on the vertical axis, it follows curves, arcs and lettering beautifully while keeping a clean, even glow with no visible dots.

Built on a 24V DC constant voltage platform, this neon flex draws 11W per metre (±10%) and delivers 770 lumens per metre at 70 lm/W, with a warm, flattering 3000K colour temperature. Colour rendering is excellent at CRI 90+ with SDCM under 5, so skin tones, wood, paint and merchandise all look true, and every reel matches the next. The 60º beam angle keeps the light focused along the run, the profile measures 6x6mm, and the maximum run is 5m. It is cuttable every 27.78mm, fully dimmable with DMX, PWM, 0-10V and MLV incandescent dimmers, rated IP67, operates from -20°C to 60°C, and is rated for 50 000+ hours of service.

From a basement reno in Laval to a café counter in Vancouver, this LED neon strip handles Canadian realities — cold garages, covered patios, damp-prone areas — thanks to its IP67 protection and wide operating range. Use it for under-cabinet accents, ceiling coves, gym and showroom branding, exterior soffit lines under cover, or custom neon signs. Need the same 6x6mm profile in another look? Compare it with the Flex Neon 6W/m 6x6mm, the longer Neon Flex 6W/m 6x6mm 30 m, the Neon Flex 9.6W/m 3x6mm for tighter reveals, or the Flex Neon Anti-Glare 10x10mm for wider coves. Roll out the glow — order your length today.

Construction and flexibility

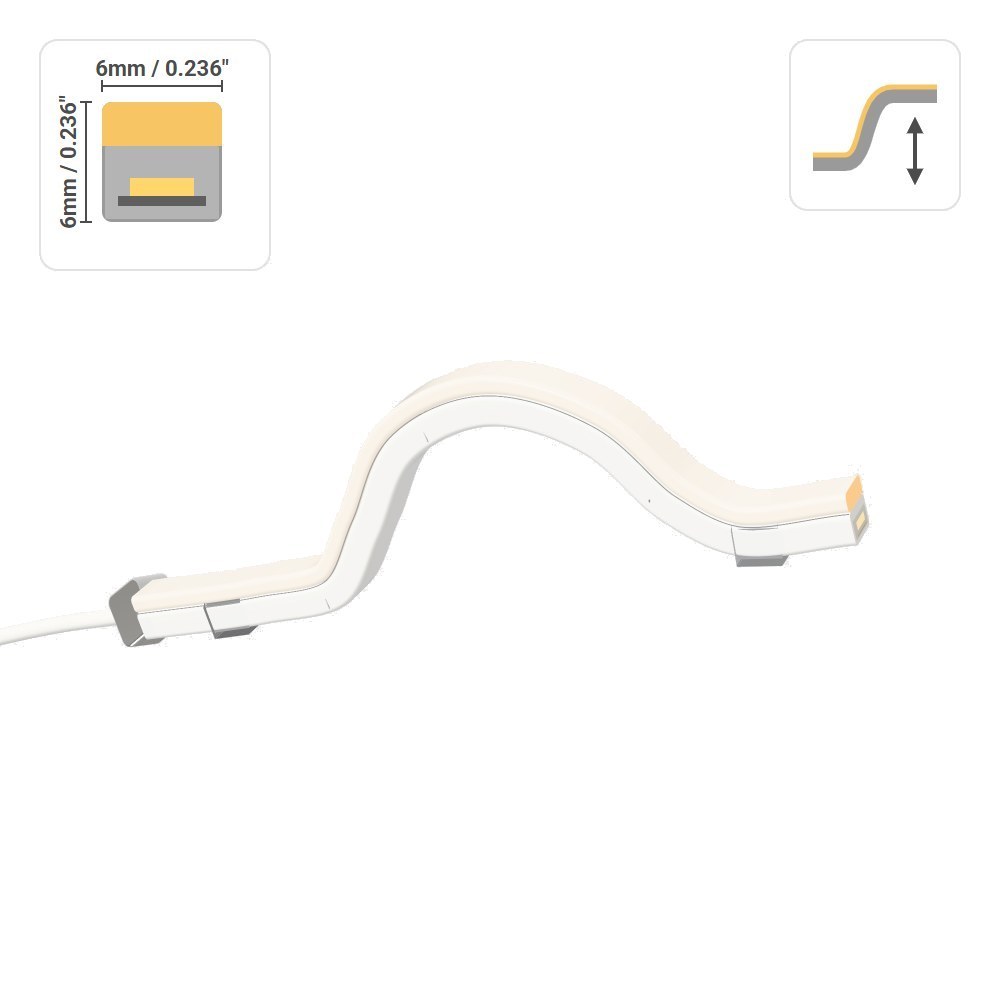

This LED neon flex is a sealed, jacketed rope built around a 24V DC LED board, with a compact 6x6mm cross-section that tucks into narrow reveals, channels and sign letters. It is a top-bend profile, meaning it curves on the light-emitting axis for smooth arcs, loops and script lettering. The extrusion diffuses the LEDs into one continuous line, so you get the look of classic glass neon with none of the fragility. The run is cuttable every 27.78mm at the marked cut points, and the maximum length per run is 5m, which keeps brightness uniform from the first millimetre to the last.

Light quality
With CRI 90+ and SDCM under 5, this neon LED renders colour faithfully and stays consistent tone-to-tone between sections — critical when several runs meet in the same sightline. Output is 770 lumens per metre at 70 lm/W, and the 60º lighting angle concentrates the glow where you aim it instead of washing the whole room. The 3000K colour temperature brings a warm, welcoming light that flatters wood, stone, brass and warm paint palettes.

Technical specifications
SKU: LCLS24VFLX-6X6-6W-30K
Power: 11W/M ±10%
Lumens per metre: 770 LM
Efficacy: 70 LM/W
Colour temperature: 3000K
CRI: 90+
SDCM: <5
Voltage: 24V DC
Control method: Constant voltage
Dimmable: Yes — DMX, PWM, 0-10V, MLV incandescent
Lighting angle: 60º
Dimensions: 6x6mm
Cut size: 27.78mm
Max length: 5m
Protection rating: IP67
Operating temperature: -20°C to 60°C
Lifespan: 50 000+ hours

Electrical and installation
Power the flexible LED neon rope light with a 24V DC constant voltage supply sized for your total load, and respect the 5m maximum run. Parallel connections are strongly recommended: going past the recommended length causes visible dimming at the far end and damages the strip over time. A middle connection (a feed wired to the centre of the run) lets you create one long visual line without voltage drop, while a double-end connection — powered from both sides, or with two identical supplies, one at each end — doubles the maximum run. When cutting, connect red to positive and black to negative on the PCB. Accessories include end caps with horizontal, left/right or vertical outlet, end caps without line out, stainless steel rings and fixed clips. Seal properly: apply glue around and inside the end cap, slide it on following the arrow, then glue the outlet point and wipe off the excess — repeat at the other end. For mounting, screw the fixed clips in place with M3 screws and press the neon into the clip with the light-emitting side facing outward.

Applications, compatibility and documentation
Think cove lighting in a living room ceiling, a glowing line under a kitchen island, stair and handrail accents, retail display frames, restaurant bar fronts, gym logos and custom signage. With its IP67 rating and -20°C to 60°C range, it also suits garages, workshops and sheltered exterior details. Within the same family you can match profiles and lengths: the Flex Neon 6W/m 6x6mm, the Neon Flex 6W/m 6x6mm 30 m for long continuous jobs, the slimmer Neon Flex 9.6W/m 3x6mm, or the Flex Neon Anti-Glare 10x10mm. The full technical PDF — with the connection guides and step-by-step installation drawings — is in the Documentation tab.
