NEON FLEX 9.6W/M - 3X6MM - LCLS24VFLX-3X6-9.6W-30K

Name: NEON FLEX 9.6W/M - 3X6MM - LCLS24VFLX-3X6-9.6W-30K
Brand: LEDCO
SKU: LCLS24VFLX-3X6-9.6W-30K
Price: 110.97 CAD
Availability: InStock

SKU: LCLS24VFLX-3X6-9.6W-30K

Brand: LEDCO

Draw a clean, continuous line of light anywhere you want it — that's what this LED neon flex does best. Slim, bendable and uniform, this 3X6MM side-bend neon rope is the modern answer to old glass tubes: no hot spots, no dots, just a smooth glowing line. People look for it as led neon flex, flexible LED neon rope light, LED flex sign material or simply neon led, and it earns all those names. Because it bends sideways (side bend), it follows curves, letters, logos, arches and rounded millwork without kinking — ideal for custom neon sign LED lettering, cove lighting, stair nosings, under-cabinet lines, headboards, bar fronts and display cases. SKU LCLS24VFLX-3X6-9.6W-30K.

This version runs at 9.6W per metre (±10%) on 24V DC, delivering 250 lumens per metre at 26 lm/W with a warm 3000K colour and an impressive CRI 90+, so wood, paint, skin tones and merchandise keep their true colour. The profile measures only 3X6mm with a 4mm PCB, throws a focused 60º beam, and is dimmable for setting the mood from soft glow to full output. Cuts are made every 33.33mm at the marked scissor symbols, the maximum run is 5m, the minimum bending diameter is 60mm, and it can be bent perpendicular to the PCB board. Rated IP66 and built for a 50 000+ hour lifespan, it also meets EN 60529, EN 62031, IEC 60598-1, EN 55015, IEC 62471, RoHS and CE. Operating range: -20°C to 45°C.

From a Québec basement renovation to a café counter in Toronto, this neon flex LED fits condos, garages, home theatres, restaurants, salons, boutiques, gyms and trade show booths — anywhere a crisp glowing line replaces a boring fixture. It pairs naturally with 24V DC drivers, aluminum profiles and LED strip accessories, and the same family is offered in other looks: see the Flex neon 3x6mm 24V 9.6W 40K for a cooler white, the Flex neon 3x6mm 24V 9.6W 27K 30 metres for long runs, or the chunkier Flex neon 6W/m 6x6mm. Map your run, choose your driver, and start bending light your way.

Built to bend, built to last

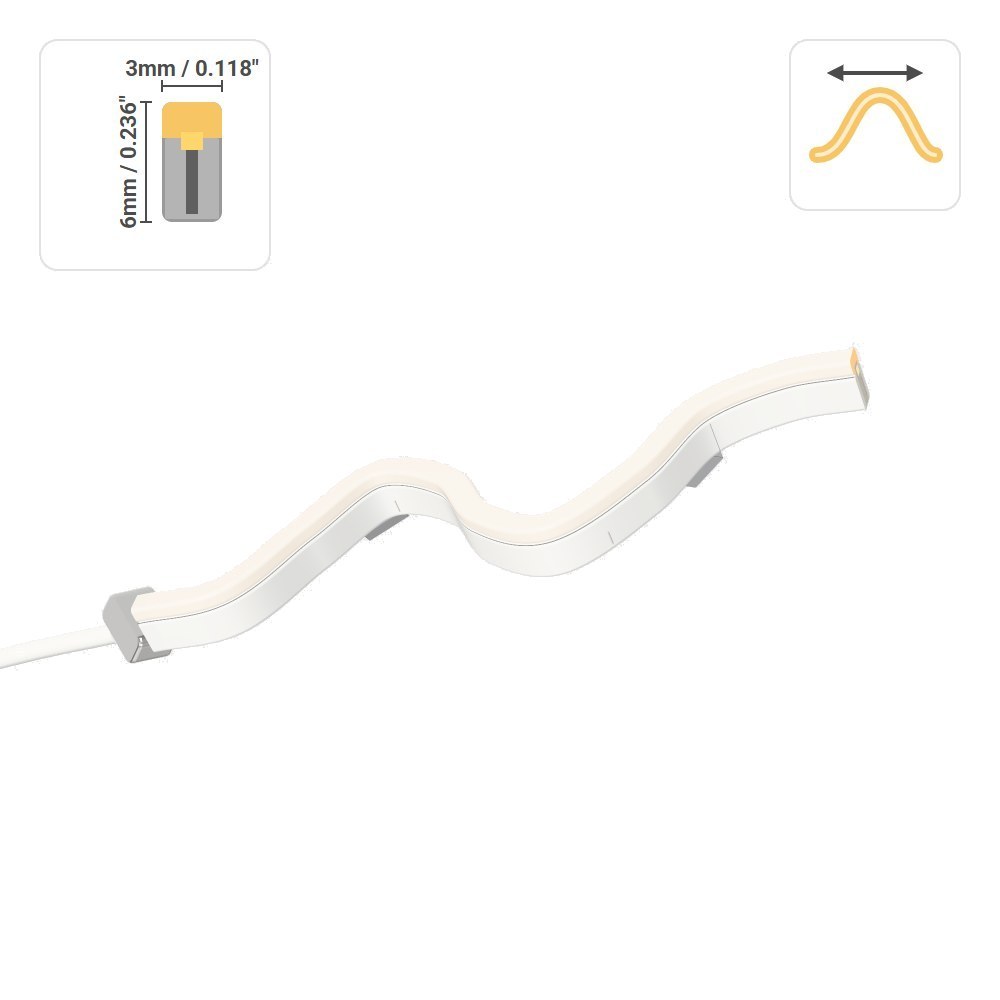

This LED neon flex uses a 3X6mm flexible body over a 4mm PCB, a combination that keeps the fixture discreet while still diffusing the LEDs into one even line. It is a side-bend product: it can be bent perpendicular to the PCB board, with a minimum bending diameter of 60mm and all bending angles kept greater than 60°. Avoid bending the strip where the circuit board is located, never twist it, and remember that multiple bends in the same spot can damage the electronic circuits inside. When unrolling, insert a rod into the scroll, set it on the packing box and rotate — never swing or pull the flexible LED neon rope light, and never stretch it horizontally during installation.

Light quality
Warm 3000K output with CRI 90+ makes this neon led a great choice where colours must stay honest: retail displays, kitchens, restaurants and residential living spaces. It produces 250 lumens per metre at 26 LM/W through a 60º lighting angle, which concentrates the glow along the line instead of scattering it. Keep in mind that the data shown are typical values; because of production and component differences, power may vary by ±10%, and brightness or colour temperature differences under 10% are considered normal.

Technical specifications
SKU: LCLS24VFLX-3X6-9.6W-30K
Power: 9.6W/m ±10%
Voltage: 24V DC
Lumens per metre: 250 LM
Efficacy: 26 LM/W
CRI: 90+
Colour temperature: 3000K
Lighting angle: 60º
Dimensions: 3X6mm
PCB width: 4mm
Cut size: 33.33mm
Max length: 5m
Minimum bending diameter: 60mm
Dimmable: Yes
Protection code rating: IP66
Lifespan: 50 000+ hours
Operating temperature: -20°C to 45°C
Standards: IEC 62471, EN 60529, EN 62031, IEC 60598-1, EN 55015, RoHS, CE

Electrical and installation details
Installation and maintenance must be performed by qualified electricians; non-professionals are strictly prohibited from operating. Always disconnect the power supply and keep the product unpowered during installation — never install a led neon flex while it is live. Cut only vertically along the marked cutting line; the cut marks are shown by a scissor logo on the PCB at the bottom of the product. When splicing, make the connection secure and reliable, then apply proper insulation, waterproofing and anti-corrosion treatment at every connection point. Before powering up, confirm the wiring and make sure the voltage does not exceed the rated value by more than 0.5V, and avoid running the power supply at full load. Since this product is rated under 14.4W per meter (4.39W per foot), no extra heat sink is needed on the aluminum profile. Do not use organic chemical solvents, acidic or alkaline glue, and never touch the LED surface with sharp tools; do not disassemble, modify or change the length or structure of the product beyond the marked cut points.

Applications, compatibility and documentation
Think backlit signage and custom lettering, cove and ceiling perimeters, stair and hallway guides, bar and reception fronts, mirror surrounds, retail shelving and display cases — with IP66 protection it also handles humid or splash-prone areas such as bathrooms and covered exteriors. Runs are limited to 5m per section, so plan multiple feeds for long architectural lines. It works within 24V DC LED strip systems and their accessories, including drivers, connectors, mounting clips and aluminum channels. Compare finishes and colours within the same family: Neon flex 9.6W/m 3x6mm, Flex neon 3x6mm 24V 9.6W 40K 30 metres and the wider Flex neon anti-glare 10x10mm 24V 9.6W 30K 20M. The full technical PDF (LCLS24VFLX-3X6-9.6W-30K Spec Sheet), with the handling diagrams and installation notes, is available in the Documentation tab.

Technical Files
